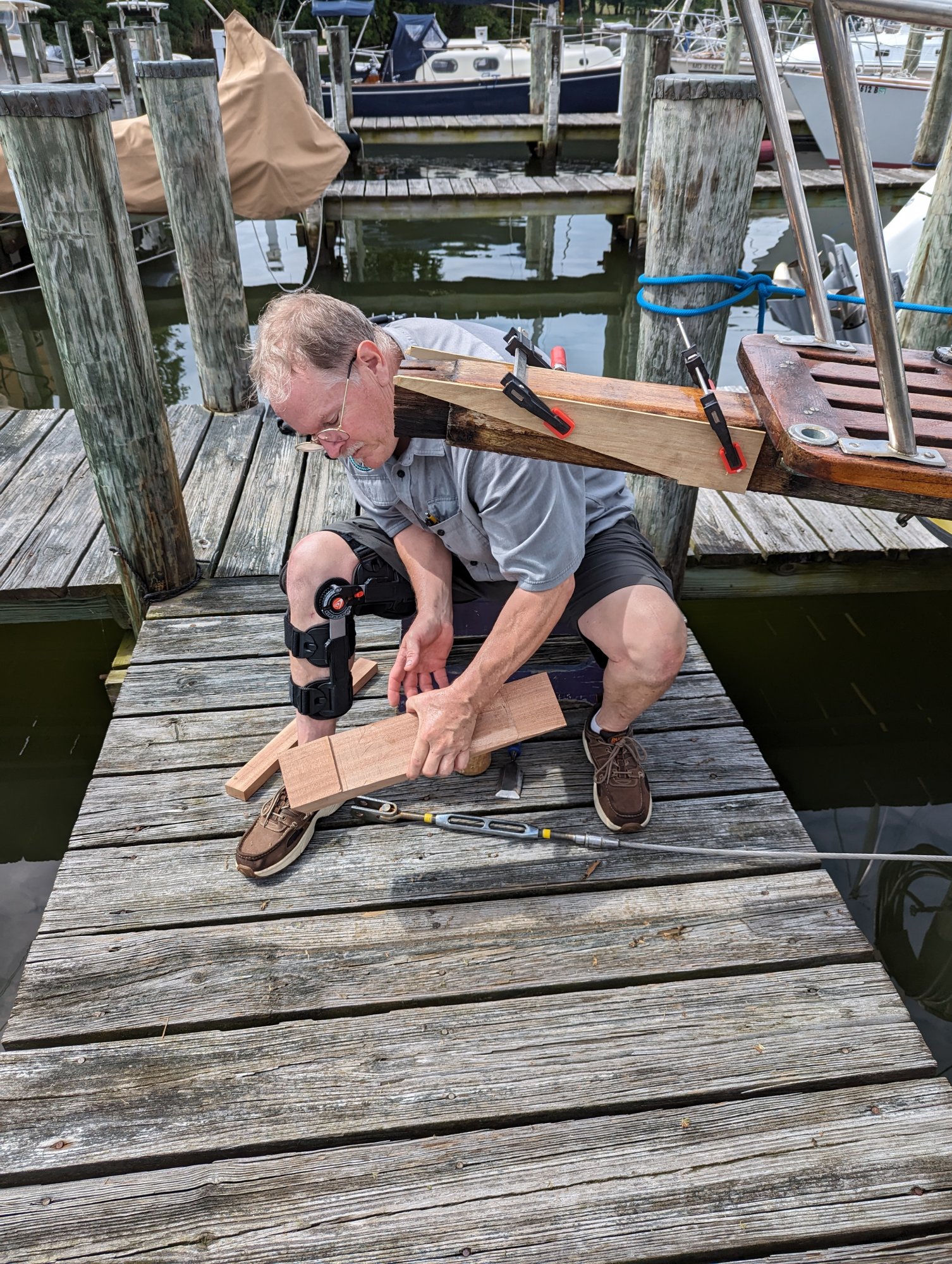

So Rick Truett of Truett Marine - same folk that did my LiFePo electrical upgrade - happens to also be a phenomenal woodworker. Lucky for me. Had one guy come look at it and then ghosted me... Oh well... Talked to Rick asking if we could get this taken care of so we went to a cool wood place here and found a piece of Sapele with excellent grain structure and Rick made a laminated beam. Here's a photo of him getting it ready to laminate into the good part of the existing bowsprit.

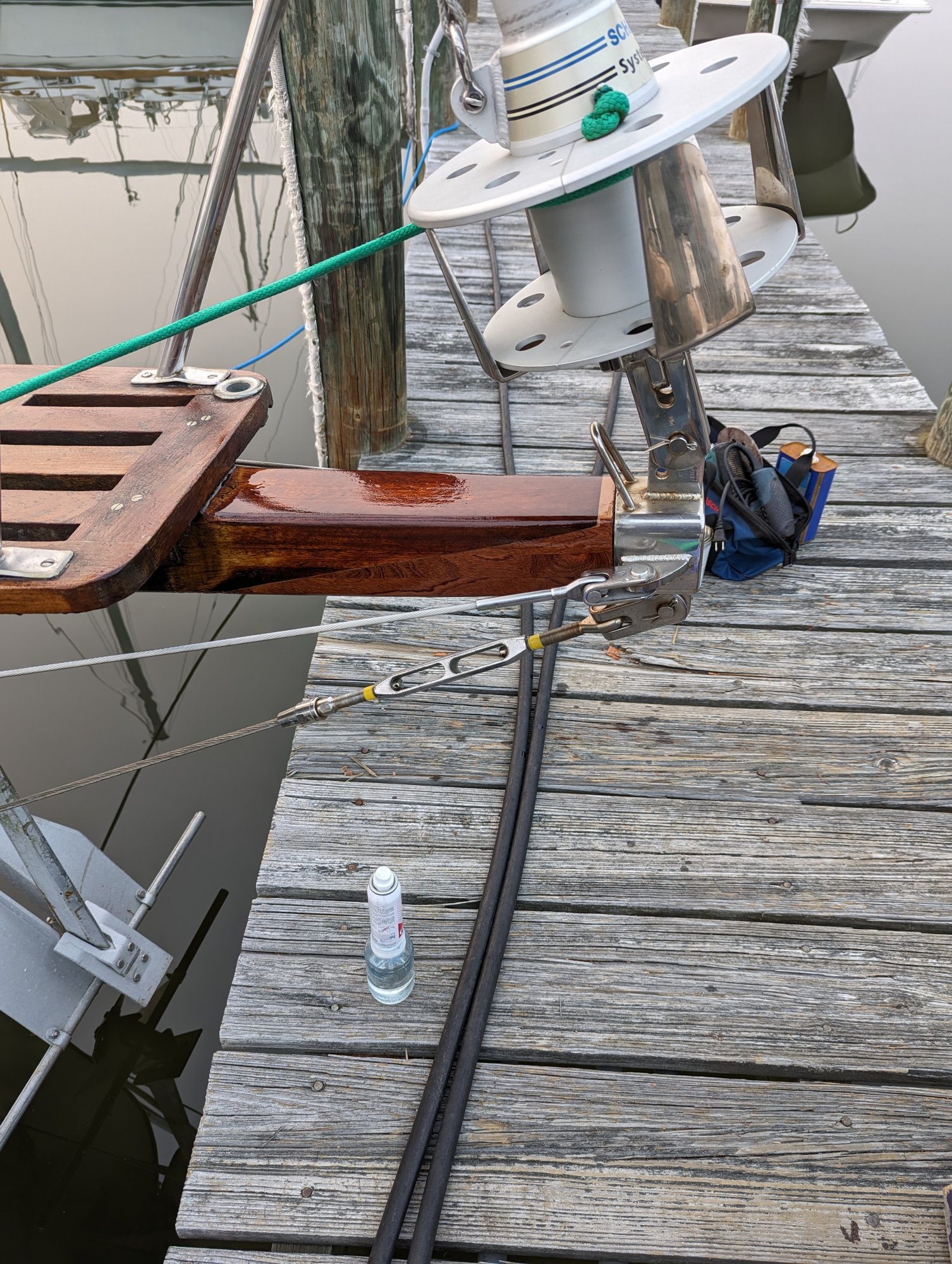

Here's the finished (nearly) piece. It came out just amazing!
Finished (almost) bowsprit... I'm doing a happy dance!
dj

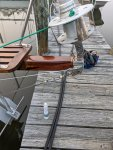

Here's the finished (nearly) piece. It came out just amazing!
Finished (almost) bowsprit... I'm doing a happy dance!
dj
Oh yeah! Loosing the mast at sea is VERY low on my list!Wow, that looks pretty bad. Glad you're fixing it here and not contending with a failure at sea.
One of the time consuming aspects of all this is going through all the systems with a fine tooth comb. For example, I rebuilt the propane system as it just seemed too close to end of life on the propane bottle side. Piping and interior fittings were all new, or nearly new but the propane locker end, not so much... Now it's a new system.
dj
Wise steps to take before you go out on the Atlantic.
It is said in the seaman's prayer...
Lord be good to us, for the sea is so wide and our ship is so small.
It is said in the seaman's prayer...
Lord be good to us, for the sea is so wide and our ship is so small.
It always warms the heart to see beautifully executed joinery.
Looking at your renewed bowsprit and that excellent work and reading your story of discovery, I can't help but think about the waves and wakes that constantly splash up underneath that important structure and ask, how the wood look where it marries to the stem?
-Will
@dLj and I discussed this Cantilevered wood beam's restoration in a Private Message.

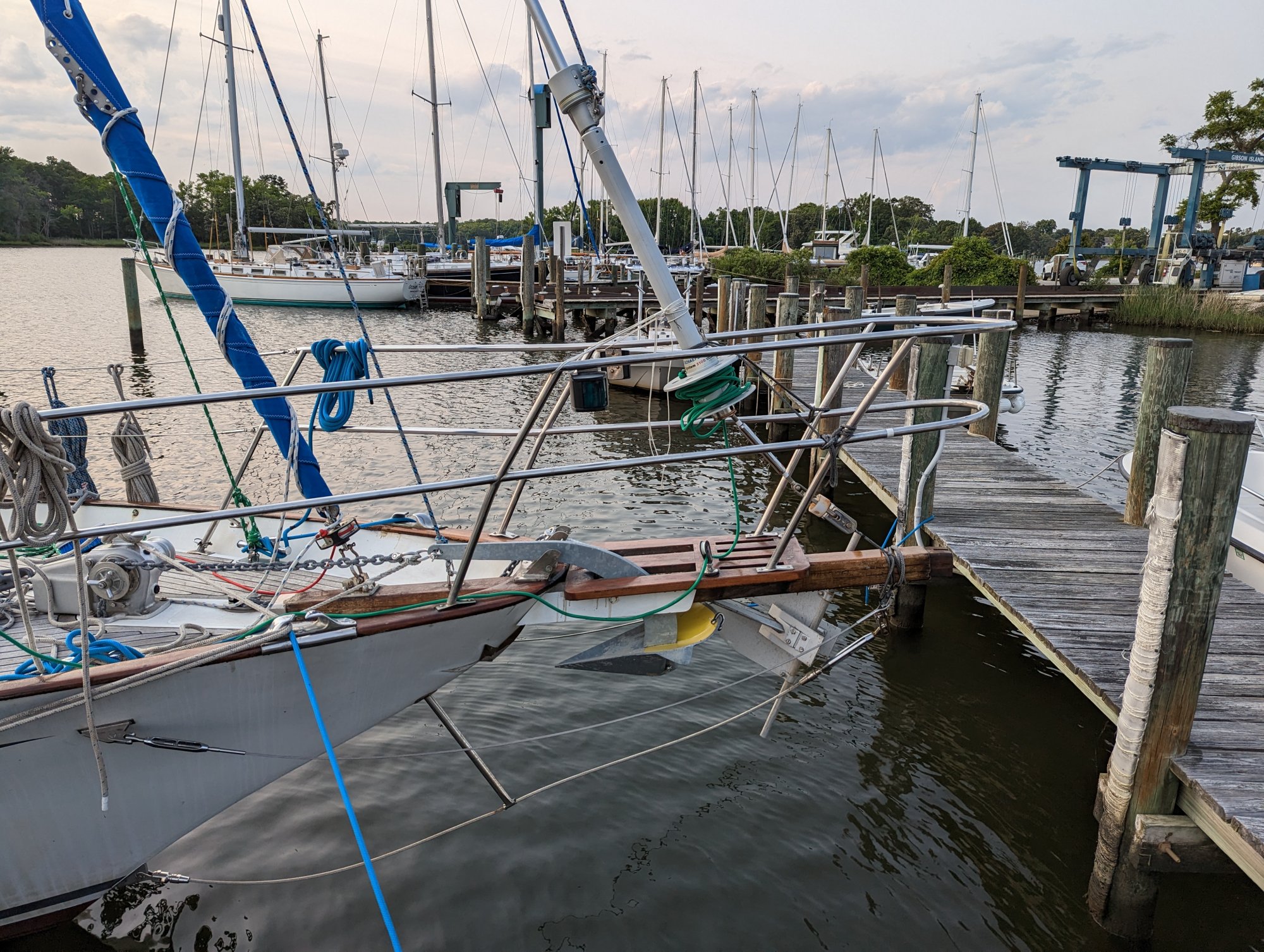

Here is the before repair picture.
The beam was laminated from this African wood.
Iroko
That beam will be mostly in tension when Sailing.
Good job by his Carpenter!
Jim...
The wood beam is in the bow structure.
Here is the before repair picture.
The beam was laminated from this African wood.
Iroko
That beam will be mostly in tension when Sailing.
Good job by his Carpenter!
Jim...
Yes, I did look into the entire length of the bowsprit. Most of the wood looked to be in good shape. The main deterioration appeared mainly at the tip and as best we can determine likely resulted from someone probably hitting a dock with the bobstay. The direction of the wood deformation seemed to point in that direction.
I did seal up the lower portion of the bowsprit as best I could without removing the entire sprit which would have been a tremendous time sink. The remaining wood condition did not warrant such an endeavour.
Prior to replacing the cleanse iron, I did a complete epoxy encapsulation of the reachable regions of the bow sprit. When I reset the cranse iron, I lined the inside with 4200 to help keep water out of that area. Time will tell how well it all worked.
dj
I know you, Jim. I'm pretty sure you meant compression, although, some side torque from one tack or the other.-Will
No.
When the head sail is pulling the sprit, the underside is in a tensional moment of inertia.
I looked up his wood, Iroko or African Teak. It has a huge Elastic Modulus.
Wood laminated beams do not do well in compression loads.
Jim...
If the bow sprit was a cantilever beam your point on tension on the bottom would be valid, but this is a stayed strut. The bob stay takes the tension load from the fore stay's upward pull. The cheek stays on each side take the tension load for side-to-side forces. If you do a free-body diagram on the end of the sprit, you have four cables each at an acute angle to the sprit. By default, a cable can only carry a tension load and will buckle with compression. Therefore, the wooden sprit will have a compression load equal to the resultant of the four cables. If the inboard end of the sprit is rigidly attached to the bow of the boat, some moment load will be built into the sprit during tuning but to bottom side tension would be reduced when sailing because the baby stay is short, and the forestay is long so there is much less elongation in the baby stay.No.
When the head sail is pulling the sprit, the underside is in a tensional moment of inertia.
I looked up his wood, Iroko or African Teak. It has a huge Elastic Modulus.
Wood laminated beams do not do well in compression loads.
Jim...
As for a laminated beam not doing well in compression loading, the Glue-laminated beam industry would beg to differ. The top ply of every glu-lam has splices and they are all in compression. The rolling shear of the glue far exceeds the shear strength of the wood fibers so both tension and compression are transmitted across the joint as if it were not there.
Thread drift.
But do not disagree.
By the way.. I am a landlubber builder, designer, engineer.
I sent a load diagram to PO in a PM. You can see the link to Cantilever Design in my post#46.
Yes I do Glu-Lam and Micro-Lam design that maintains warranty, full landlubber exposure.
Onward to get him solo sailing...
Jim...
But do not disagree.
By the way.. I am a landlubber builder, designer, engineer.
I sent a load diagram to PO in a PM. You can see the link to Cantilever Design in my post#46.
Yes I do Glu-Lam and Micro-Lam design that maintains warranty, full landlubber exposure.
Onward to get him solo sailing...
Jim...
So I set out last night. Sailed north to the C&D, crossed into the Delaware and am about to cross Cape May, heading to Lunenburg Nova Scotia. This will be a good shake down cruise! Back to navigating!
