Or move the ball closer to the center of the steering quadrant. Put another way move the ball on the steering arm closer to the rudder post. This reduces the distance that the ball travels. You, OP, are overdriving the angle sensor.
Raymarine EV100 Rudder Reference install
- Thread starter Mickstr
- Start date
Or move the ball closer to the center of the steering quadrant. Put another way move the ball on the steering arm closer to the rudder post. This reduces the distance that the ball travels. You, OP, are overdriving the angle sensor.
I recall the arm-to-ball had to be a certain angle or greater- maybe 90 degrees? It is not as simple as you might think. If you sit and watch the movement you'll see it is basic geometry.

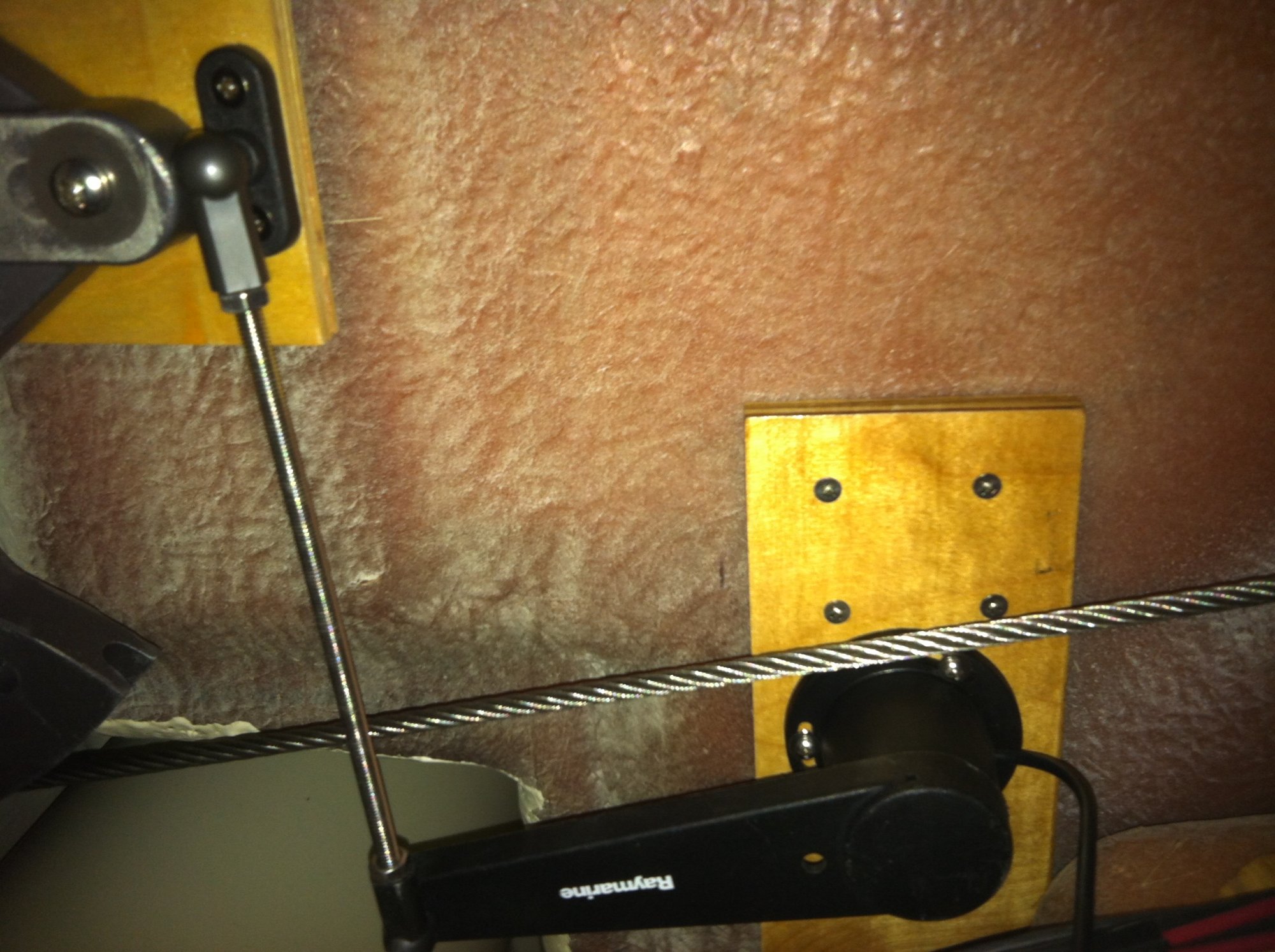

Here’s my setup. Appears that rod rubs on steering cable; however it doesn’t.I really need to do what others have suggested; have someone turn the wheel and adjust or the rod or end stops as necessary. Turning the steering quad from below doesn’t get it.
Thanks to all! Turned out not to be gravity doing it's work. Thanks to the tips I got from here and the Raymarine Forum, I got myself down there with my AP remote and watched how it happened. It's because when turning the wheel to the starboard stop (quadrant turning to port stop), I didn't have enough room for the rudder sensor to extend, and it got pulled right out! (See attached video). i didn't have my cordless drill with me, so next trip out to the boat I'll move the sensor body about an inch and a half to port. That should take care of things.
Many thanks for the thoughts I got from you guys!
Many thanks for the thoughts I got from you guys!
response 21/22 describe what happens- You turn the wheel, which moves the quadrant, t quar gets turned frather than the ball joint can travel, and you ul it apart. That is why I had to out "stopps" so the quadrant only turns so far, not not so far as to pull the joint aparts. If you can do it some other way, more poewr to you, but i'm sure there is reason why Beneteau does this on most of their boats. Cloudi'es poic #8 shows hoe the one bumoer will stop the quad from going so far as to oull the joint apart. /// The autopilot has lines on the screen so you can see how far you have turned the wheel. I adjusted my quadrant bumpers so the wheel goes as far as it can wthout making the joint come apart- and that equates to the extreme line os wheel movement limitation. /// If you move the sensor body as you say, you are altering the grometry/distances that the designers came up with to make this all work.
Maybe I'm missing something but this is a simple geometry solution. The documentation with the sensor is quite clear.

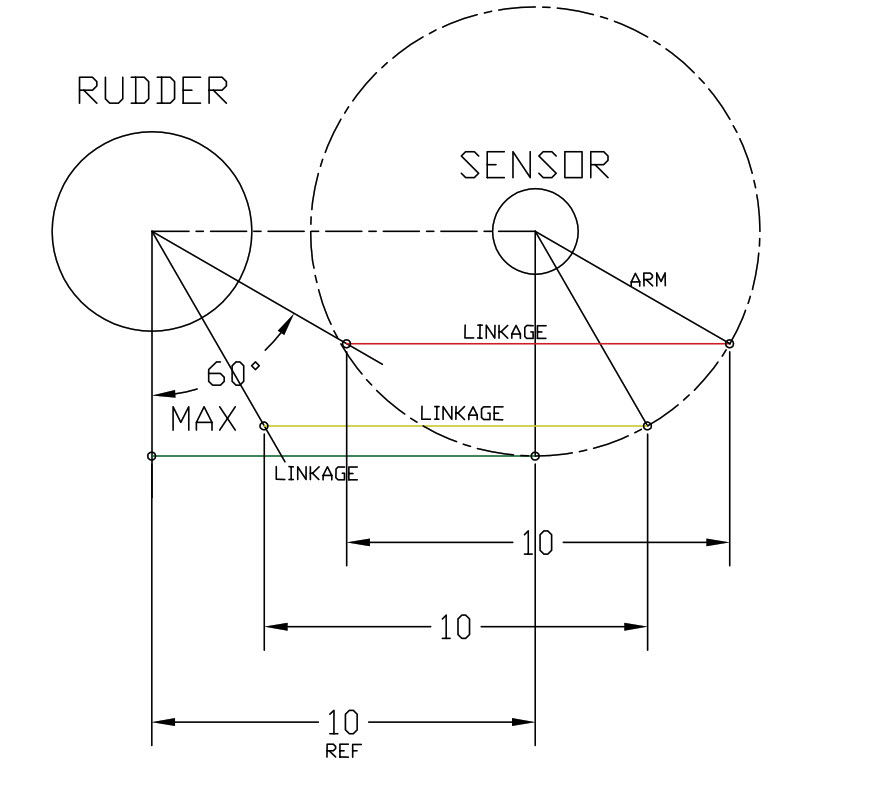

I can't see Mikstr's install ever working properly. See attached sketch. As long as you maintain the parallel constraints and do not exceed the 60 degrees (Rudder stops may need to be increased) either side ( a total of 120 degrees) it will work.
I can't see Mikstr's install ever working properly. See attached sketch. As long as you maintain the parallel constraints and do not exceed the 60 degrees (Rudder stops may need to be increased) either side ( a total of 120 degrees) it will work.
