Please help me identify this fixture on my Pearson 27
- Thread starter geoks59
- Start date
Ok ,here is my best guess after waiting a few days ..ready ? I chose to believe it is for an antenane base for a handheld vhf radio .
I'll post inside pics once I can get on the boat. The lockdown in Maine keeps everyone away from the marina, but they are putting her in the water in the next week or so. Hopefully, I'll get up there soon.
The handle has right hand threads that tighten a little bit when turned. It might have tightened more when it was new, but 30 years of constant use for whatever it does may have worn it out a little.
The antenna guess keeps coming up. Could be a winner, although there is a masthead antenna.
I'm glad to be able to give the group a puzzle to consider while we are all dealing with the various stay at home orders and such. Stay well and keep those suggestions coming. Someone out there must have these on a boat and can explain exactly what it is for any why someone would drill holes through the deck to mount it!
The handle has right hand threads that tighten a little bit when turned. It might have tightened more when it was new, but 30 years of constant use for whatever it does may have worn it out a little.
The antenna guess keeps coming up. Could be a winner, although there is a masthead antenna.
I'm glad to be able to give the group a puzzle to consider while we are all dealing with the various stay at home orders and such. Stay well and keep those suggestions coming. Someone out there must have these on a boat and can explain exactly what it is for any why someone would drill holes through the deck to mount it!
jssailem
SBO Weather and Forecasting Forum Jim & John
- Oct 22, 2014
- 23,140
As it is now with no suggestion from the previous owner, you can let it be what ever you believe it should be and no one will be the wiser.
NotCook
.
- Dec 29, 2008
- 806
Well, someone put it there for some reason. I challenge the “30 years of constant use”, as apparently the PO didn’t use it either! Doe the PO know who owned it before him? Inquiring minds want to know!
so, what we have here so far are:
1.Manual bilge pump handle
2. Radio antenna mount
3. Big propulsion fan deployment handle (my personal favorite) - seems more and more likely
4. WiFi antenna
5. Gear shift
6. Traveler tensioning handle
7. Whatchamacallit
8. thingamajig
9. oodad (rejected out of hand)
Does the boat have a tiller? Could it be a mount for an autopilot arm?
Given the current state of affairs and level of stress, I’m not going to be able to sleep until this paradox is resolved!
so, what we have here so far are:
1.Manual bilge pump handle
2. Radio antenna mount
3. Big propulsion fan deployment handle (my personal favorite) - seems more and more likely
4. WiFi antenna
5. Gear shift
6. Traveler tensioning handle
7. Whatchamacallit
8. thingamajig
9. oodad (rejected out of hand)
Does the boat have a tiller? Could it be a mount for an autopilot arm?
Given the current state of affairs and level of stress, I’m not going to be able to sleep until this paradox is resolved!
Last edited:
NotCook: I hope you got some sleep! Although if you're sheltered in place in St. Criox I'm not as sympathetic as I might have been...
No tiller and if it is a mount for and arm for the emergency tiller the arm would have to be about 8 feet long.
The internet did suggest some other possibilities, but none as good as the above list:
No tiller and if it is a mount for and arm for the emergency tiller the arm would have to be about 8 feet long.
The internet did suggest some other possibilities, but none as good as the above list:
I wouldn't pull it, it could be the lever for an emergency ejection seat. At least, that what you might want to tell your guests who ask.
There are cell phone signal boost antennae that have a similar look, but I haven't found anything that looks exactly like that.
-Will (Dragonfly)
There are cell phone signal boost antennae that have a similar look, but I haven't found anything that looks exactly like that.
-Will (Dragonfly)
I'd be curious to see what it looks like inside the access port inside the cabin. could it be some sort of antenna and the black handle unscrews for a short mast to attach?
Good new and bad news...
The good news is that my boat is in the water and ready to go, finally.

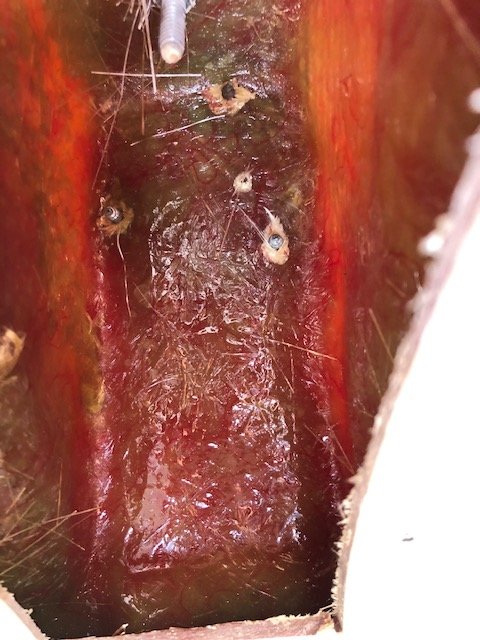

The bad news is the inside of compartment is even less helpful than I recalled. Photo is attached. The only thing coming through into the compartment are the ends of the mounting screws. The compartment is about 2 inches wide where the screws come through. No connections inside. There are no connections on the outside. The mounting base on the outside is about 2.5 inches in diameter. The base where the eccentric ball mount is located is about 1.25 inches in diameter and seems to be semispherical. The handle extends out about 5 inches from the slot into the semispherical portion.
The ejection seat suggestion is right up there with the auxiliary fan control. Perhaps it can be a dual function thingamajig.
The good news is that my boat is in the water and ready to go, finally.
The bad news is the inside of compartment is even less helpful than I recalled. Photo is attached. The only thing coming through into the compartment are the ends of the mounting screws. The compartment is about 2 inches wide where the screws come through. No connections inside. There are no connections on the outside. The mounting base on the outside is about 2.5 inches in diameter. The base where the eccentric ball mount is located is about 1.25 inches in diameter and seems to be semispherical. The handle extends out about 5 inches from the slot into the semispherical portion.
The ejection seat suggestion is right up there with the auxiliary fan control. Perhaps it can be a dual function thingamajig.
Attachments
It sure looks like it's just a mount for some long forgotten piece of equipment. I would stick with the big fan switch explanation for anyone who asks. If you come up with a really nautical sounding name for it like the starboard frangeshackle people are more likely to believe it
Edit - changed pig fan to big fan, although a pig fan might make for a more interesting story
Edit - changed pig fan to big fan, although a pig fan might make for a more interesting story
Last edited:
It's a service signal for an exclusive yacht club. In the down position, it's like a "do not disturb" sign on a hotel door handle. In the up position, it means, "please bring me a gin and tonic." It can also be used for turn down service and ordering a pizza.
-Will (Dragonfly)
-Will (Dragonfly)
Want to confuse your friends?
Want to be the life of the party?
Want to make yourself magnetically attractive to any female?
Want to know the price of stocks tomorrow or next week?
Well look not further!!!
For just $799. Yes you heard right only $7999 you can have all these things and MORE!!!
So, What are you waiting for send that check to Gary's WHATTHEHELLISIT? and get yours today.
Better still and for an extra dollar , yes you heard correctly just an extra dollar you can have two WHATTHEHELLISIT?
Just screw it to the side of your deckhouse, NO BACKING PLATE or complicated wiring required
Available in ONE color. We have taken all of the guess work and big decisions for YOU!!
Want to be the life of the party?
Want to make yourself magnetically attractive to any female?
Want to know the price of stocks tomorrow or next week?
Well look not further!!!
For just $799. Yes you heard right only $7999 you can have all these things and MORE!!!
So, What are you waiting for send that check to Gary's WHATTHEHELLISIT? and get yours today.
Better still and for an extra dollar , yes you heard correctly just an extra dollar you can have two WHATTHEHELLISIT?
Just screw it to the side of your deckhouse, NO BACKING PLATE or complicated wiring required
Available in ONE color. We have taken all of the guess work and big decisions for YOU!!
Last edited:
My understanding here is that the lever rotates on an off-center ball, causing the bottom of the lever to contact the top of the casing when moved to the up position, which causes friction. The friction adjustable by tightening or loosening the handle.
The handle can then be lowered out of the way (sort of) when not in use under way.
The function of it is apparently only required on one side of the boat.
They may have been using it as a furling line hanger.
The handle can then be lowered out of the way (sort of) when not in use under way.
The function of it is apparently only required on one side of the boat.
They may have been using it as a furling line hanger.
Last edited:
I'm liking the "pig fan" and am ready to join that yacht club, but if I can get $799 for it on ebay I'll patch the holes!
It can definitely function as a line hanger. Also, a life jacket hanger, a towel hanger, t-shirt hanger and even a bikini hanger for the mate. if it were on the other side, it would also be an extremely functional tripping hazard!. But, alas, since it is close to the rope clutches and halyard winch, at least the captain remembers to watch his step around it.
At least I don't feel too bad about not knowing what the heck it is. Since it stumped this bunch, its not surprising it stumped me!
It can definitely function as a line hanger. Also, a life jacket hanger, a towel hanger, t-shirt hanger and even a bikini hanger for the mate. if it were on the other side, it would also be an extremely functional tripping hazard!. But, alas, since it is close to the rope clutches and halyard winch, at least the captain remembers to watch his step around it.
At least I don't feel too bad about not knowing what the heck it is. Since it stumped this bunch, its not surprising it stumped me!
This thread has been fun but strangely... nothing at the same time...If I were a psychology Ph.D. candidate, I'd use this forum to analyze why some things go viral and others die quick.
