Fleming wind vane servo rudder shear pin

Feb 20, 2011
7,793
Island Packet 35 Tucson, AZ/San Carlos, MX
I'm hoping to get this thing operable, but the shear pin isn't on the boat. Global Equip.
Anybody got a material recommendation for a 3/16ths shear pin? Aluminum?

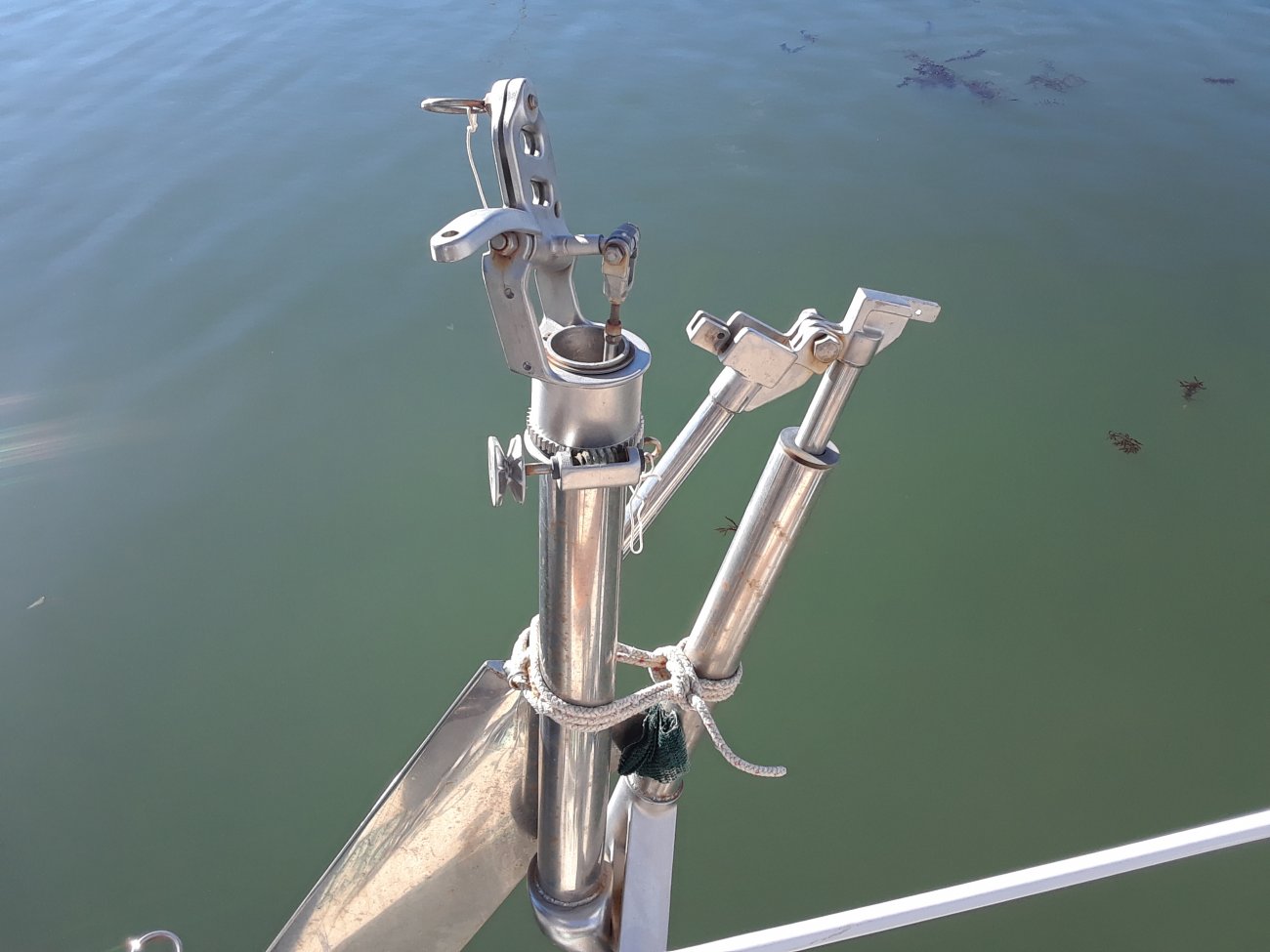

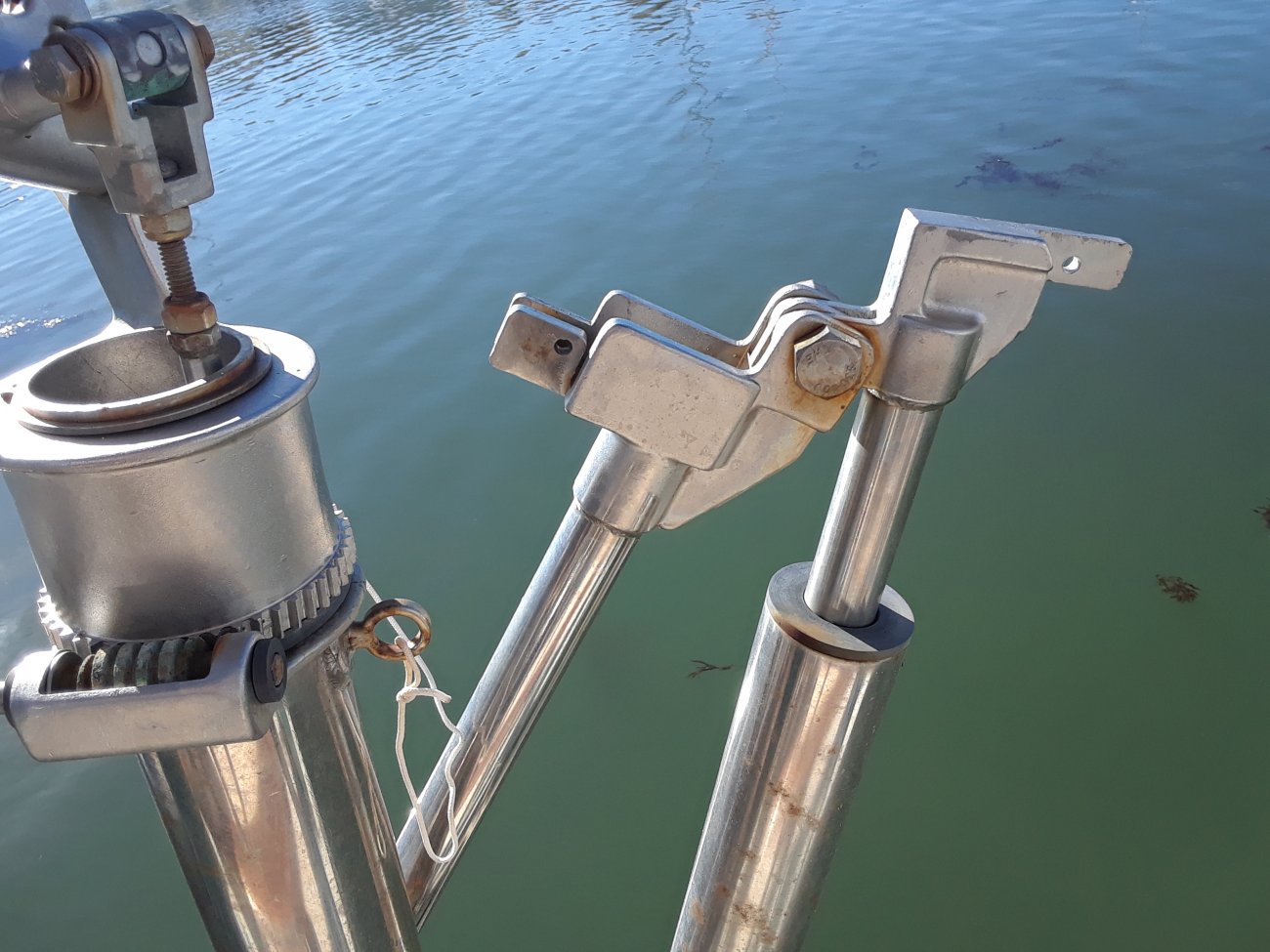

20190228_161050.jpg 20190228_161100.jpg

Nov 30, 2015
1,296
Hunter 1978 H30 Cherubini, Treman Marina, Ithaca, NY
Any shear pin I’ve ever seen, whether for a boat prop, snow blower, etc. was made of brass.

  • Like
Likes: justsomeguy
May 29, 2018
298
Canel 25 foot Shiogama, japan
Here is the owner's manual for the Fleming.
http://tognews.com/ftp/Projects/Win...al master_global equip 301 from 21_4_2009.pdf
No mention of the shear pin in there, but contact information supplied.

In Australia they have the reputation for being the best.
Second hand ones go for almost new prices . No devaluation.

Personally I would make a shear pin out of some material that shears easily, i.e. aluminum with a shallow hacksaw cut.
But, brass with a shallow hacksaw cut would be my second choice.

Gary

  • Like
Likes: justsomeguy
Feb 20, 2011
7,793
Island Packet 35 Tucson, AZ/San Carlos, MX
Feb 20, 2011
7,793
Island Packet 35 Tucson, AZ/San Carlos, MX
Got any ideal what the metals are where the shear pin goes? I'd want to make sure my shear would shear and that little to no corrosion may be a concern.

dj
The casting is 2205 duplex alloy stainless steel.


dLj

.
Mar 23, 2017
1,831
Belliure 41 Now on the Chesapeake
The casting is 2205 duplex alloy stainless steel.
Nice!

I'd use a 302, 304 or 316 austenitic stainless steel. Easy to come by and compatible with your duplex alloy. The 2205 should have a Brinell hardness of about 293 while the austenitics mentioned should be around 201 Brinell for the first two and 217 Brinell for the 316. You could use a shoulder bolt that fits the hole tightly, score it with a file or saw (if you don't have access to a lathe) at the spaces between where it's to shear and you should be good to go. No significant dissimilar metals problem - the austenitics should shear easy enough without damaging your 2205 hole.

Good luck! I'd love to hear how you make out.

dj

  • Like
Likes: justsomeguy
Feb 20, 2011
7,793
Island Packet 35 Tucson, AZ/San Carlos, MX
Good luck! I'd love to hear how you make out.
I appreciate the metallurgical input, and will certainly update.
Found an email addy for a guy who supposedly bought out the original owner, but no response as of yet.
