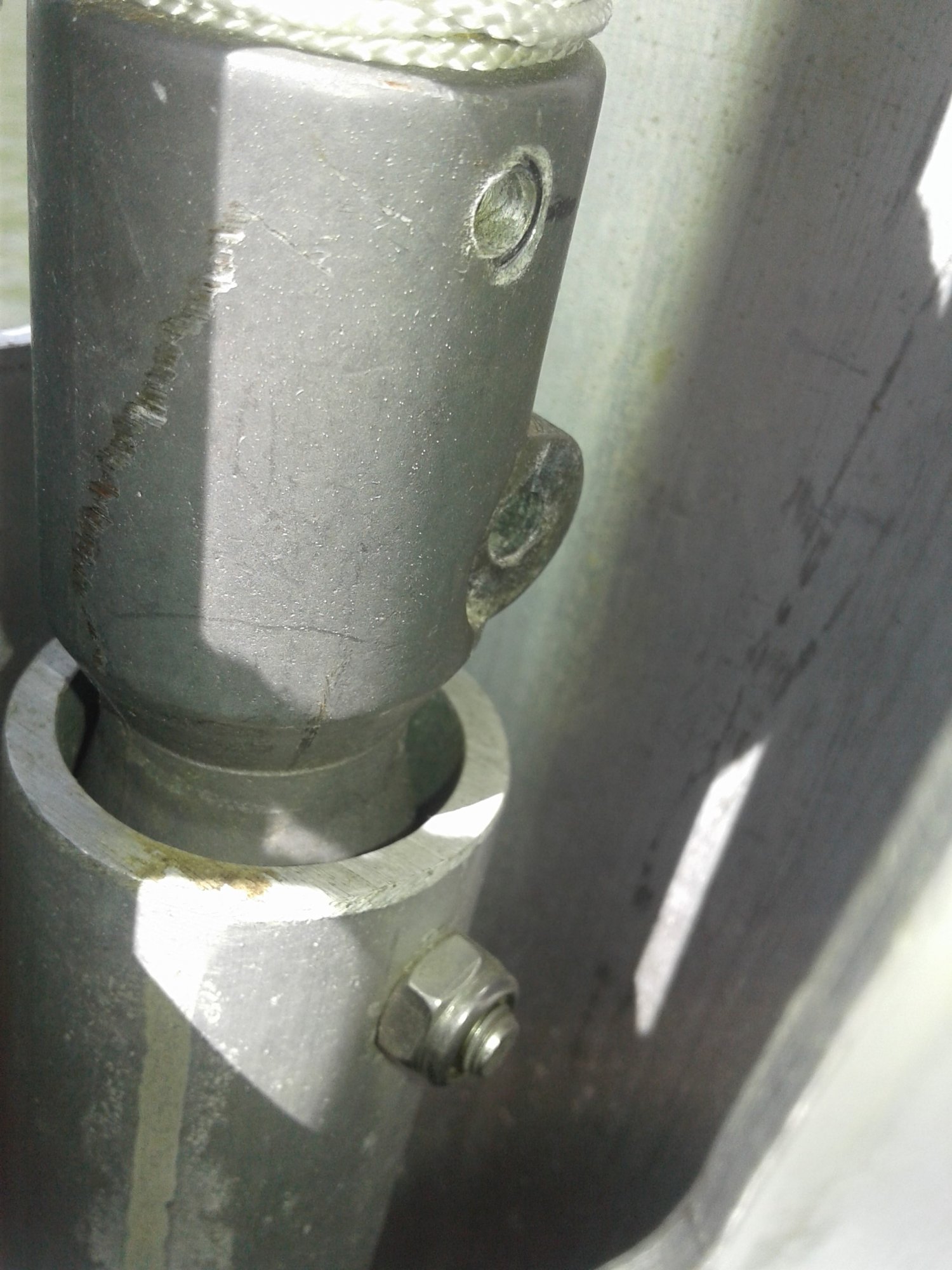

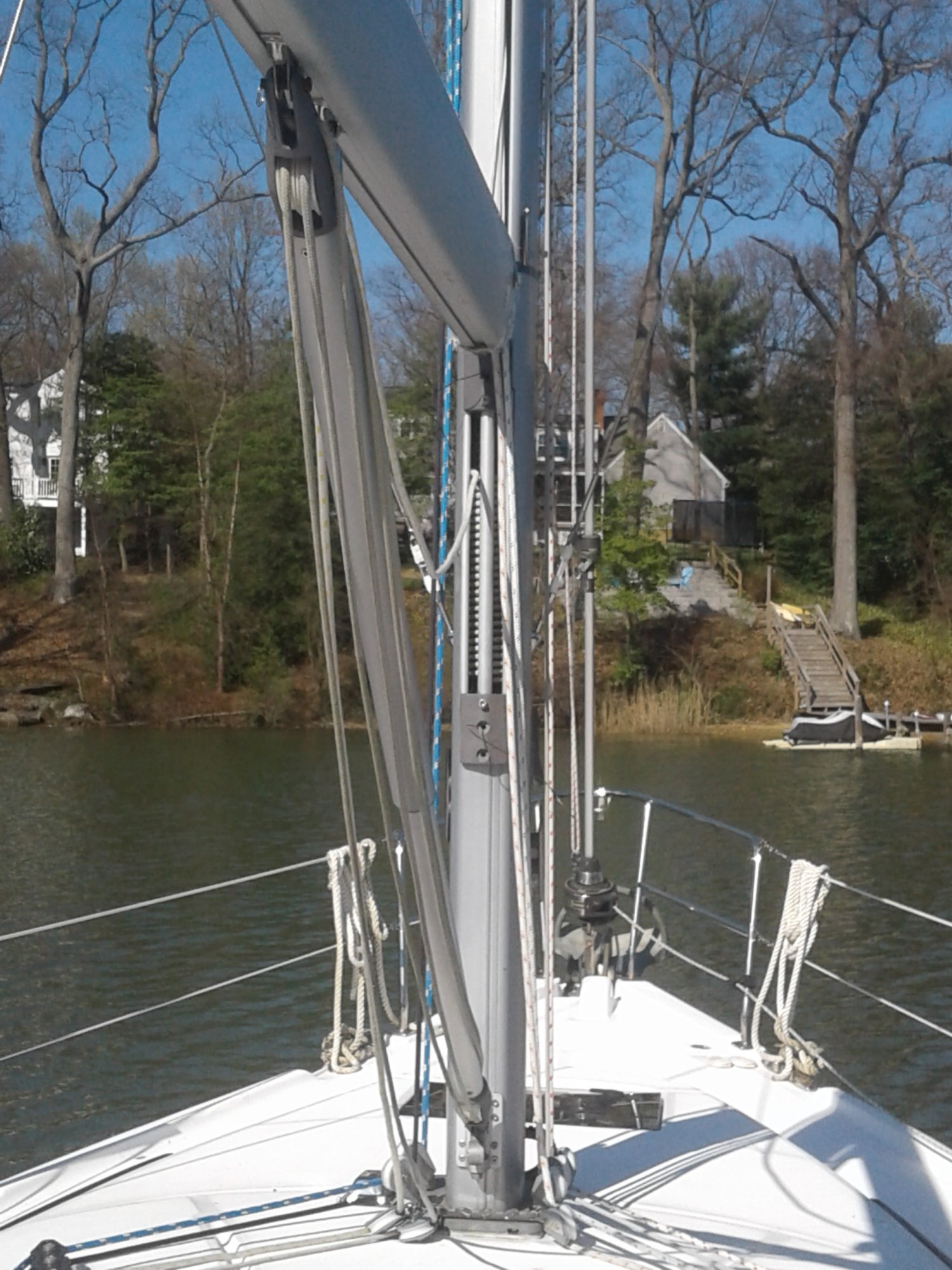

I have an in-mast furler drum from US Spar. I'm trying to remove it. Has anyone out there done this? I've removed all the nuts and bolts except one, which is below the level of the access port. Here's some pix of the drum and the one bolt. Suggestions appreciated.


Attachments

RitSim

.
Jan 29, 2018
410
Beneteau 411 Branford
First, make sure you take the sail down. When you remove the furling unit, the furling pole may drop and the slide at the head of the sail may slide off (big BIG trouble). There is supposed to be a cap on top of the pole to prevent this but the caps age and crack off over time. The actual furling unit pries out from the bottom. It looks like the bolt in your second pic also needs to be removed


richk

.
Jan 24, 2007
488
Marlow-Hunter 37 Deep Creek off the Magothy River off ChesBay
First, make sure you take the sail down. When you remove the furling unit, the furling pole may drop and the slide at the head of the sail may slide off (big BIG trouble). There is supposed to be a cap on top of the pole to prevent this but the caps age and crack off over time. The actual furling unit pries out from the bottom. It looks like the bolt in your second pic also needs to be removed
Thanks, I'm a the stage where I need to remove the bolt in the second picture. How do I do that?

Jun 21, 2004
2,533
Beneteau 343 Slidell, LA
Tie off the furling pole / extrusion after removing sail, so it doesn’t drop down. By tying it off, youre also reducing the weight from the top of the furling drum. Disconnect all bolts attaching from the pole by way of the access ports in the mast. Finally remove the bolts securing the furling drum to the mast & pry the furler from the mast. There are small threaded backing plates inside the mast that the furler bolts into. Once the cap bolts that secure the furler to the mast are removed, tie off the backing plates with wire or string before you attempt to pry the furler from the mast. If the backing plates fall off inside the mast, not good.....don’t ask how I know that! To remove that last bolt, you need to raise or lower the extrusion to the level of the access port to allow a socket wrench to be used to remove the bolt.

Last edited:

richk

.
Jan 24, 2007
488
Marlow-Hunter 37 Deep Creek off the Magothy River off ChesBay
Thanks, Big Easy.

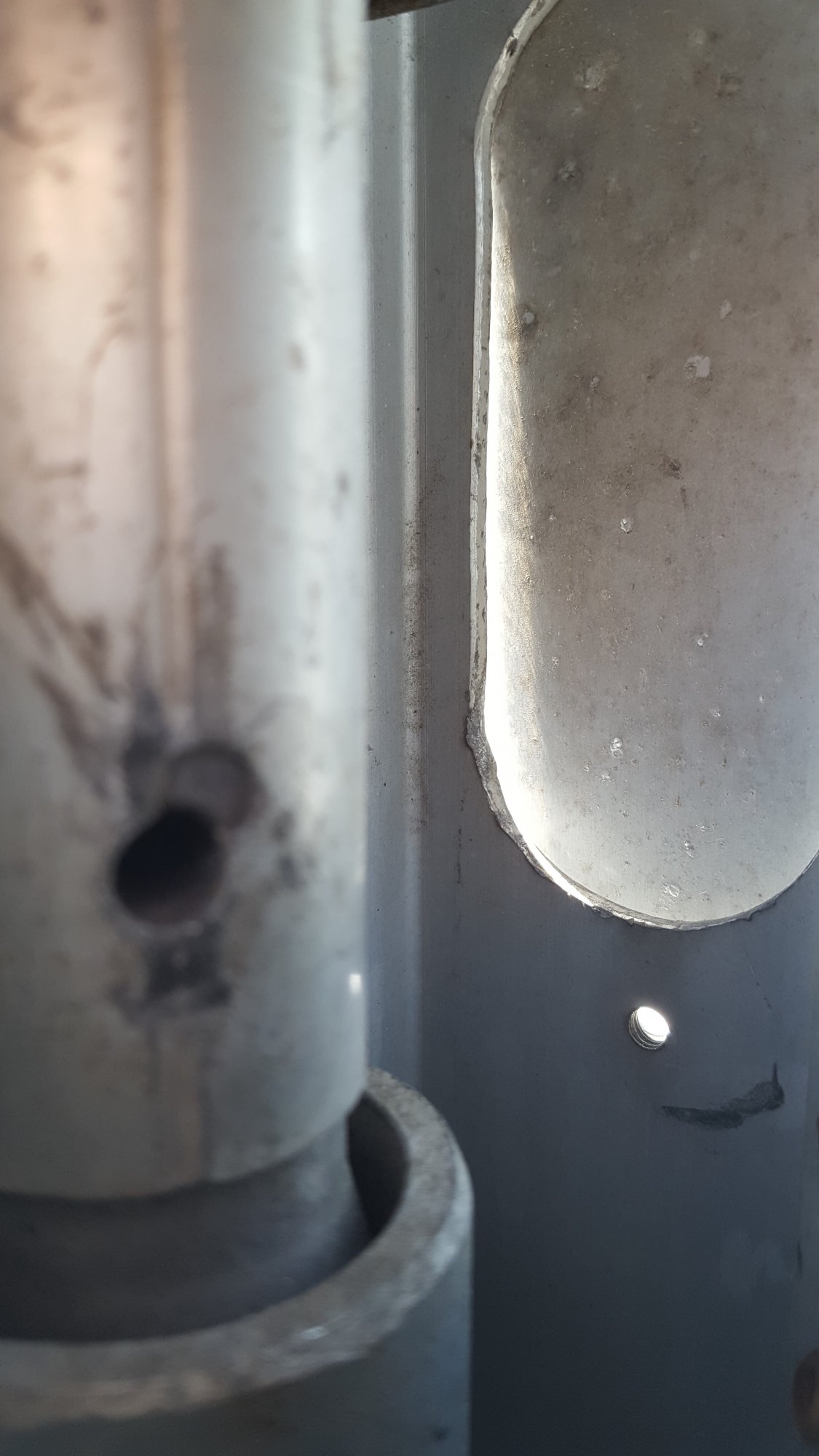

Thanks also RitSim - My setup has a bolt through the dark gray collar you show, below the access holes. Haven't been able to raise the foil/furler unit up for direct access to that bolt. It's a problem.
