Sonar transducer in San Juan 23: chirping sonar?

Sep 6, 2020
2
Glenmore Boats Commodore 15 Calgary

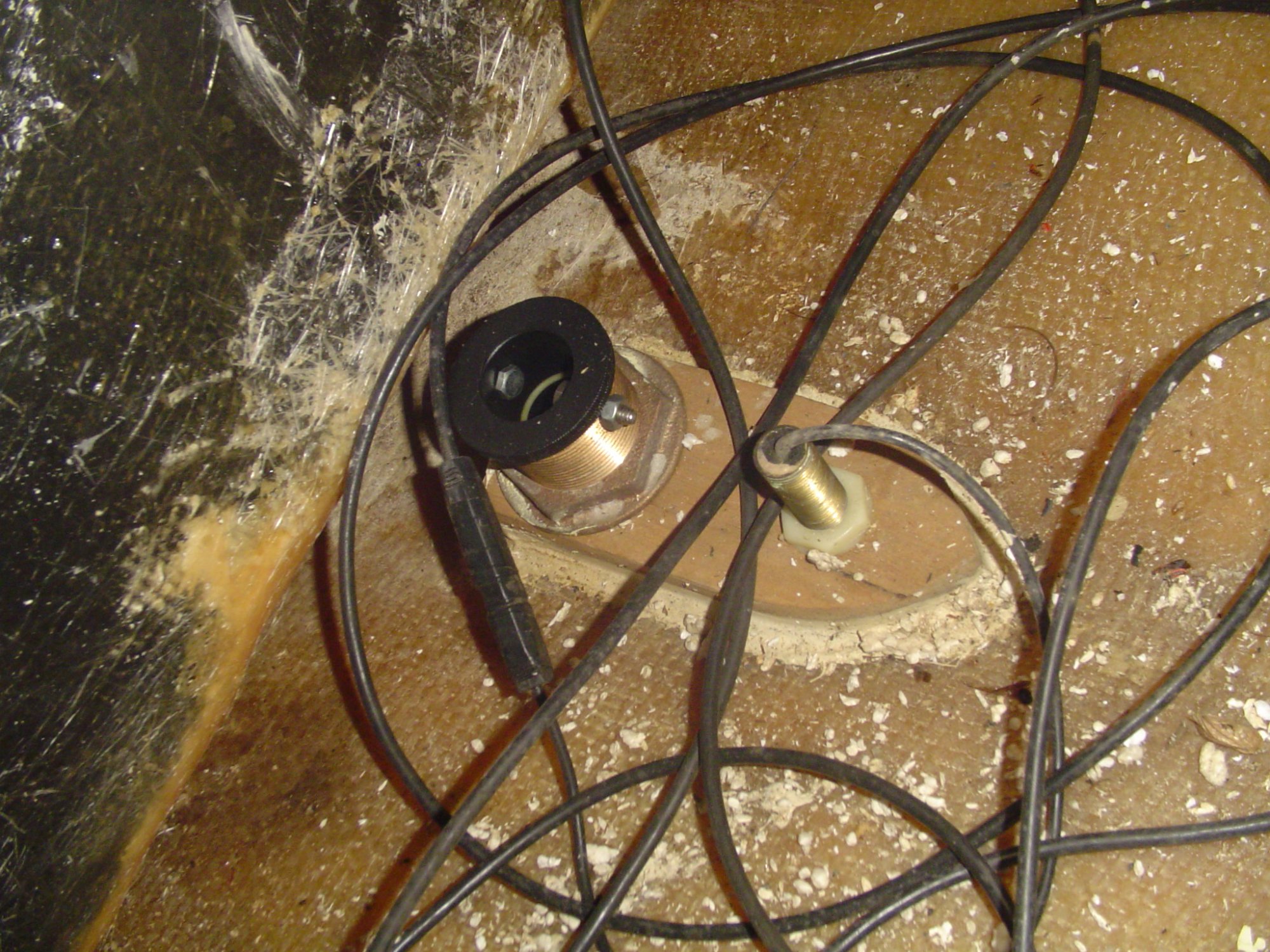

I am involved in a San Juan 23 restoration project at the Calgary Yacht Club in Alberta, Canada. I have enclosed photos of the sonar transducer. There appear to be 2 transducers: a brass colored (presumably monotone) transducer and a bronze externally threaded chirping transducer. The monotone transducer was hooked up to a Standard Communications DS100 depth sounder (according to the circuit board, but the best manual for the device I can find seems to indicate that it is a Standard Horizon DS150 sounder). The club managed to save the circuit board for the device, but the console cover is missing. What other makes and models of sonar could be hooked up to the (presumably monotone) transducer? Is the Standard Horizon/Communications sonar a chirping sonar? What makes of device could the club hook up to the bronze externally threaded transducer, which is not hooked up in the enclosed photos? Is the bronze transducer a chirping transducer? - Ian Douglas


Oct 22, 2014
13,057
CAL 35 Cruiser moored EVERETT WA
Ian.
The transducer could be wires to a ITC5 unit from Raymarine. This unit provides power and translates a 183 signal from the transducer into a SeaTalkNG signal that can be shared on a SeaTalkNG backbone for any display you want to connect. I used it to attache an old transducer to my network. It then broadcast from the network over wifi which allows me to see my depth on iPhone or iPad using a variety of navigational apps.

It is just one idea. There are other system setups. Perhaps you need to decide as to how you want to interface with the information. Then pick the hardware that best accomplishes that goal.
