name/make of gauge

[tadd5181]

The picture above is a display on my Hunter 420 (built 2000) which shows the status of the boat's starter and house batteries and also whether the inverter is on or off. Its size is about 4"x2". It stopped working when all batteries died but it did not restart once all batteries were brought back to life.

I also understand that Heart Interface is no longer in business and that panels which look this on my boat (and now made by Xandrex) have panels that look exactly like mine are huge, 17"x10" or so.

So now my question is, if the one shown, is found not to be operable, where do I find one to replace it and same dimensions? Is there anyone who deals in used items such as this?



[sail sfbay]

I would buy a remote panel, battery status and inverter charger remote control compatible with your inverter/charger. What inverter/charger manufacturer and model do you have? It looks exactly like this one Xantrex - Xantrex Heart FDM-12-25 Remote Panel, Battery Status & Freedom Inverter/Charger Remote Control #11-10850 (marine.com).



[Stu Jackson]

where do I find one to replace it and same dimensions?

Gee, tadd, Sailsfbay just found one for you. Nice find!



[tadd5181]

I would buy a remote panel, battery status and inverter charger remote control compatible with your inverter/charger. What inverter/charger manufacturer and model do you have? It looks exactly like this one Xantrex - Xantrex Heart FDM-12-25 Remote Panel, Battery Status & Freedom Inverter/Charger Remote Control #11-10850 (marine.com).
View attachment 199212

The Xandez item is very large and no way fits where my Heart Inverter fits. I know the size of mine but not the model number.



[tadd5181]

So I am still looking for the right size of the display panel, about 5"x3"...not the 16 inch size that Xandrex has.



[JamesG161]

So I am still looking for the right size of the display panel, about 5"x3"

I have my old one that was working, before I switched to the new Xanbus size.
But I thought Xantrex still supplied the older style.
Jim...

PS: @sail sfbay did link you one above $160 and a good price for new



[JamesG161]

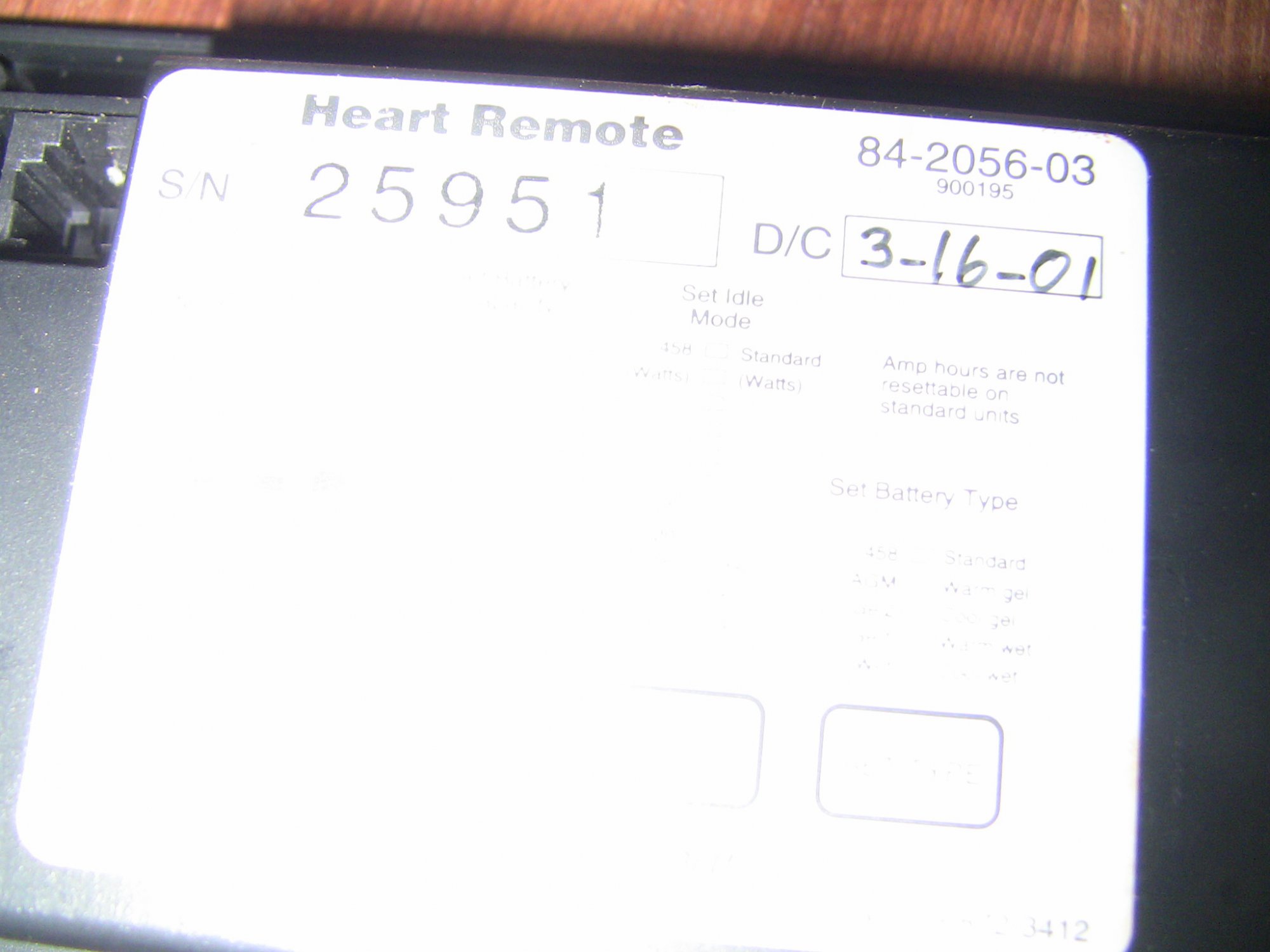

I have my old one that was working

mine



[JamesG161]

It stopped working when all batteries died but it did not restart once all batteries were brought back to life.

Are you sure?
You have to make sure your HOUSE Batteries are above 10.9 VDC and are select to the ON position and then hit RESET on your Freedom 20 ICG.

I freaked the first time mine did that.
Jim...

PS: My H430 1999 has same installed items and that Heart interface does NOT monitor your start battery.



[Richard19068]

So I am still looking for the right size of the display panel, about 5"x3"...not the 16 inch size that Xandrex has.

Hmm. The panel that sail sfbay linked to looks like it is 5-3/4 x 3-3/4 for a 4-7/8 x 2-7/8 cutout. Looks pretty much like the size you are looking for.



[Hello Below]

So I am still looking for the right size of the display panel, about 5"x3"...not the 16 inch size that Xandrex has.

The link that @sail sfbay provided seems to be the size you are looking for. Please have a look at it. Also touch base with Dave at the store here at SBO. Xantrex Freedom Inverter/Charger Basic Remote Control Panel (sailboatowners.com)
Or Fisheries Supply Xantrex 84-2056-01 | Fisheries Supply



[Stu Jackson]

From the specs page in sailsfbay's link:

Specifications
Model: 84-2056-01: 12 V Control Panel w/25' data cable
Size: 5 3/4'' (L) X 3 3/4'' (W) X 1'' (D)
Cutout Size: 4.7/8'' (W) X 2 7/8'' (H)

Environmental: Splash resistant

Operating temp:0ñ70 C



[JamesG161]

In a PM with the PO.
His problem was resolved by his electrician cleaning corrosion of the terminals.
Jim...
