How to connect VHF radio to NMEA2000 MFD

Tantor

.
Dec 25, 2010
85
Hunter 410 LaSalle, Mi
I am taking opportunity to ask for you opinion or suggestion on my Standard Horizon GX2200 VHF radio.
I’m owner of Hunter 410 and doing upgrade for all instruments.
My issue is how to connect existing VHF Radio GX2200 AIS, DSC to a new NMEA2000 network.
I appreciate any help.
Thanks, John

FYI, here is a whole new schematics….


Attachments

Oct 22, 2014
20,993
CAL 35 Cruiser #21 moored EVERETT WA
Here is access to the SH manual...

It is about page 16 that you find the electrical connections installation. In reading the manual looks like the radio connects using NMEA 0183 connections to chart plotters.


BobH57

.
Oct 23, 2019
91
Hunter 410 Solomons, MD
I suggest you contact Milltechmarine at Welcome to Milltech Marine - your AIS experts or by calling them at 206-299-2217 with your question, as I'm sure they've heard it before. I purchased a USB Break-out Cable from them which allowed feeding AIS/GPS data from my GX2200 to a small laptop pc running OpenCPN. Works great, and is my primary chartplotter!

Aug 21, 2019
156
Catalina 315 18 Grosse Pointe Park, MI
I used a Yacht Devices YDNG02R NMEA0183 to NMEA2000 Converter to interface my GX2200 to my network. It worked great. The AIS showed up nicely on my Raymarine chartplotter.


Joe

.
Jun 1, 2004
7,999
Catalina 27 Mission Bay, San Diego
Before you spend $200 on one of those actisense or yachdesigns converters, give standard horizon a call... or go in to westmarine service desk and let them make the call... they have the back line number. Anyway... you can probably get away with a simple nmea 0183 to n2k converter cord... At least it's worth a phone call.

Nov 18, 2010
2,441
Catalina 310 Hingham, MA
Before you spend $200 on one of those actisense or yachdesigns converters, give standard horizon a call... or go in to westmarine service desk and let them make the call... they have the back line number. Anyway... you can probably get away with a simple nmea 0183 to n2k converter cord... At least it's worth a phone call.
You can't unfortunately. There are a couple of issues. But the converters work great and aren't that expensive.


DougM

.
Jul 24, 2005
2,242
Beneteau 323 Manistee, MI
It might make more sense economically in the long run to buy a new radio which includes AIS and DSC that would be essentially “ plug and play” without the need of some kind of interface.

  • Like
Likes: Tally Ho
Nov 18, 2010
2,441
Catalina 310 Hingham, MA
It might make more sense economically in the long run to buy a new radio which includes AIS and DSC that would be essentially “ plug and play” without the need of some kind of interface.
The GX2200 is an AIS receiver and has DSC. There are only two VHF with AIS transponders built in, from B&G and Simrad. They are $1,100.

Standard Horizon does have the GX6000 out now that is NEMA 2000. But it's $500.

The Actisense NGW-1-AIS NMEA Gateway for AIS Systems is under $200.

Aug 21, 2019
156
Catalina 315 18 Grosse Pointe Park, MI
I would add that my personal experience with the Standard Horizon GX2200 is that it works very well. I also like the remote unit (CMP31) that is available for it. Hooking it up to the NMEA 2000 converter was pretty easy too.

Last edited:
Oct 22, 2014
20,993
CAL 35 Cruiser #21 moored EVERETT WA

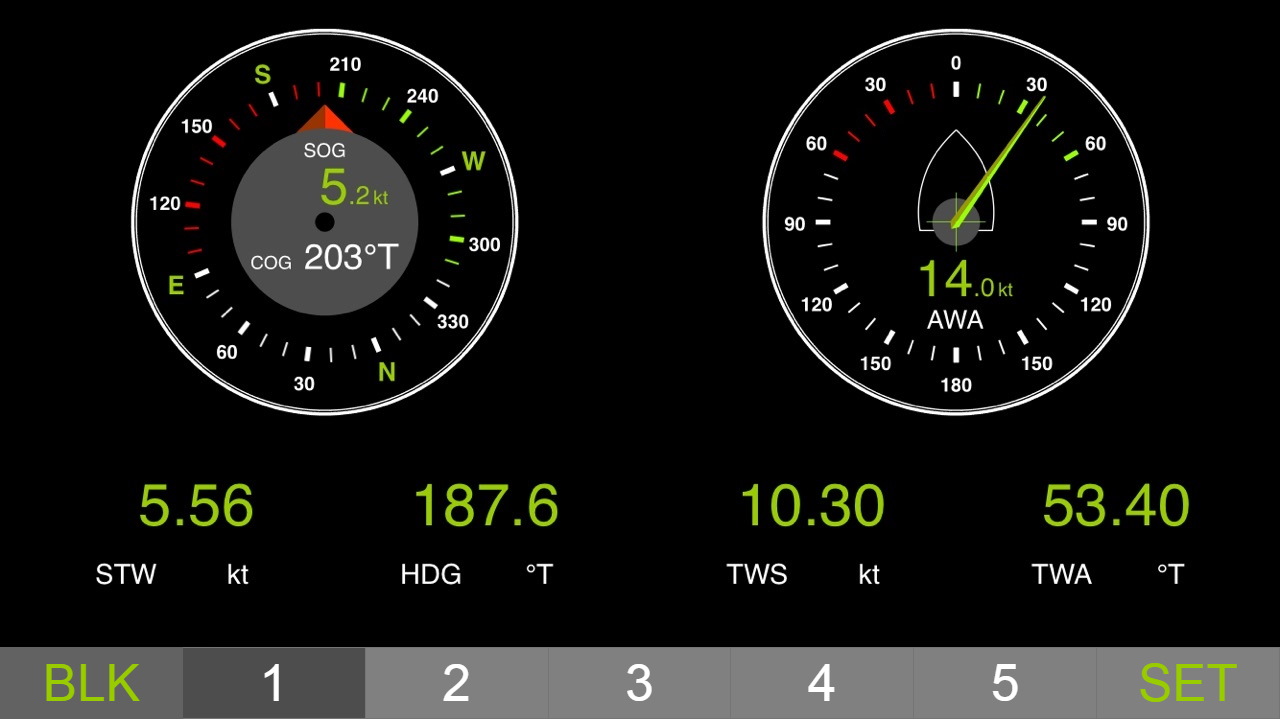

Vesper has come out with their VHF/AIS transponder system last November. They call it Cortex.
They are taking orders while they await the FCC authorization.

I have had their XB8000 on my boat for 3 plus years. Great technology and integration into a marine system.


Tantor

.
Dec 25, 2010
85
Hunter 410 LaSalle, Mi
I would add that my personal experience with the Standard Horizon GX2200 is that it works very well. I also like the remote unit (CMP31) that is available for it. Hooking it up to the NMEA 2000 converter was pretty easy too.
Can you please specify what converter did you use?

Aug 21, 2019
156
Catalina 315 18 Grosse Pointe Park, MI
I will re-post this:

I used a Yacht Devices YDNG02R NMEA0183 to NMEA2000 Converter to interface my GX2200 to my network. It worked great. The AIS showed up nicely on my Raymarine chartplotter.

Nov 18, 2010
2,441
Catalina 310 Hingham, MA
Can you please specify what converter did you use?
I am using the Actisense NGW-1-AIS NMEA Gateway for AIS Systems to connect the GX2200 to a Raymarine backbone. It works great. Displays the data on the chart plotter and is accessible on the i70 MFDs as well.

Aug 21, 2019
156
Catalina 315 18 Grosse Pointe Park, MI
I only connected the AIS. The GX2200 does not need a GPS since one is built in and I have a chart plotter with it's own GPS.
