l thought that others on this forum might be interested in how I removed my engine from a 1995 Catalina 30 MKIII

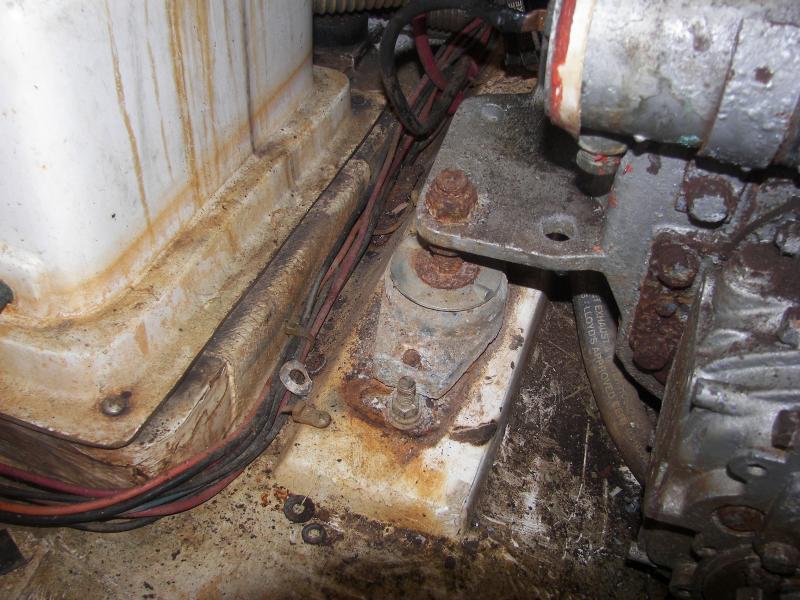

I bought my C30 MKIII in April 2014. The engine had not been very well maintained. It was very dirty and rusty. One of the bolts on the steel adapter plate that holds the engine mounts was sheared off. I decided to pull the engine this winter, clean it up, fix the motor mount, replace all hoses, and paint the bilge.
View attachment 84522

I had seen other posts on this forum about removing the engine. These posts showed removing the sink portion of the counter top and cabinet to allow removal of the engine. However, on the Mark III, there is a one-piece U-shaped molded counter top which is continuous from the peninsula, around the stove, and back over the ice box. I did not want to cut this counter-top, so instead I cut out a section of the dinette seat to allow me to lift the engine enough to slide it out frontwards toward the center of the cabin. I made an A-frame support out of 2x4’s and roller assembly to support the cable hoist so I could lift the motor and move it into the cabin. I had to remove the exhaust riser before I could lift and slide the motor forward.

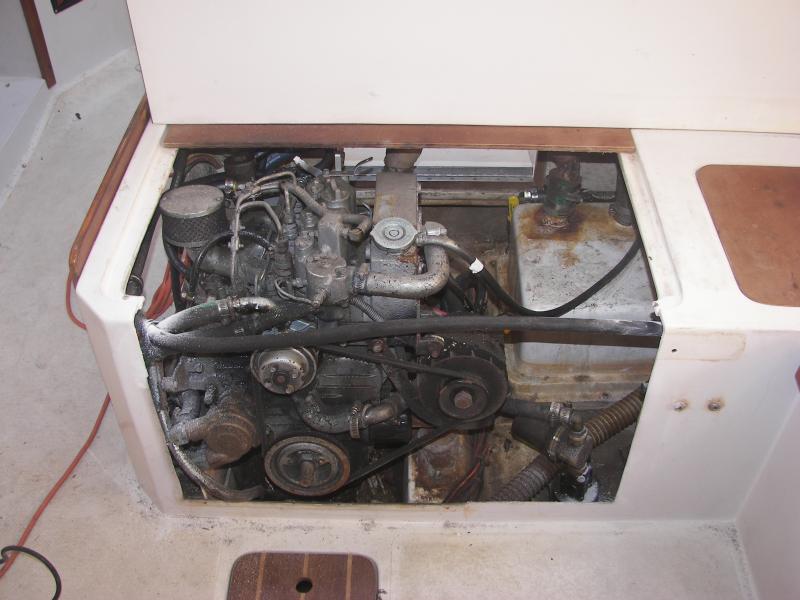

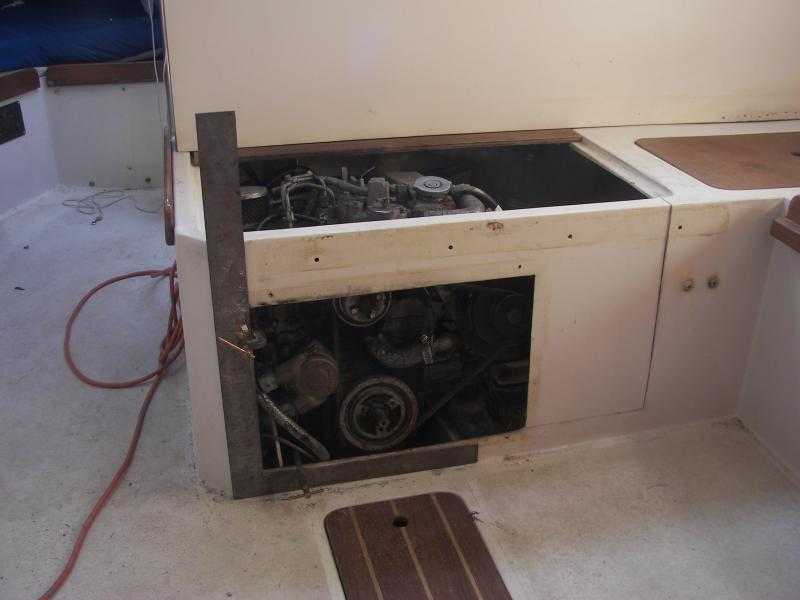

This is where I cut the front of the dinette seat. I used a vibrating multi-tool to make the cut running the blade tight to a straight edge.

View attachment 84504View attachment 84505

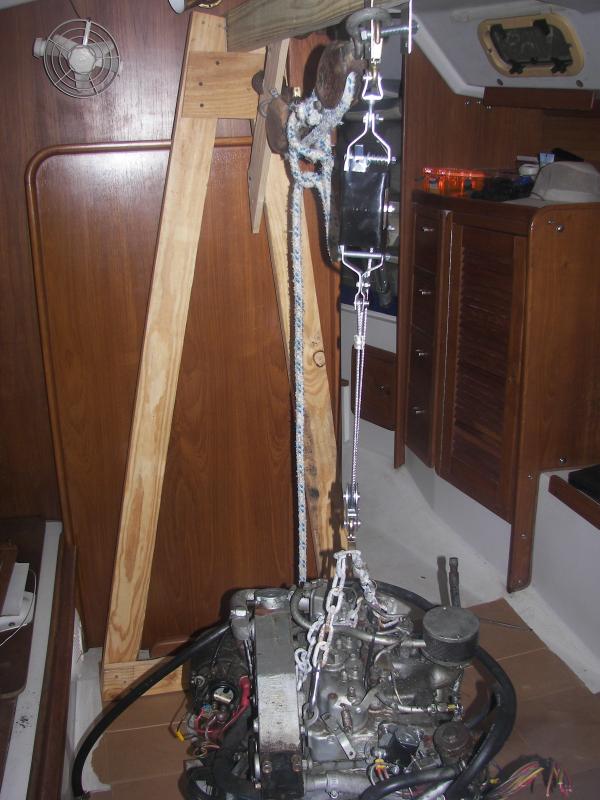

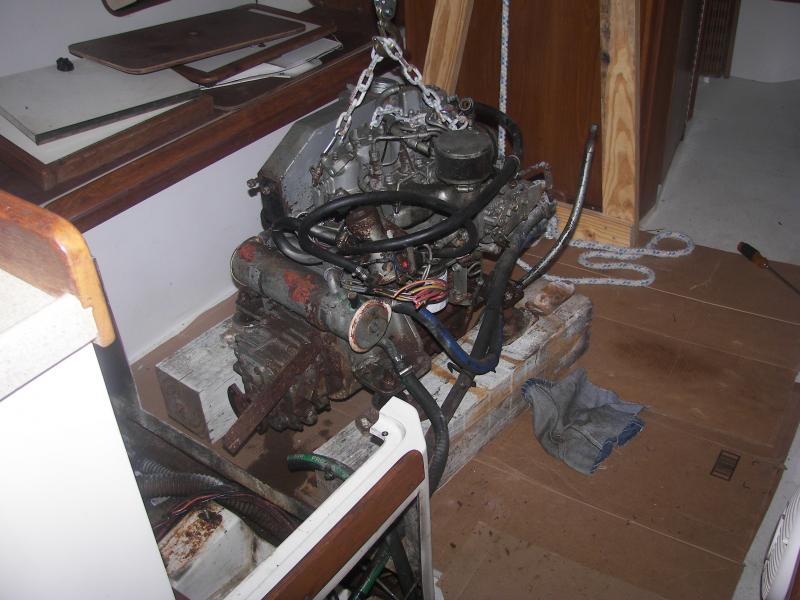

Engine removed and sitting in the cabin. I worked on the engine in the cabin instead of removing it from the boat.
View attachment 84506View attachment 84507

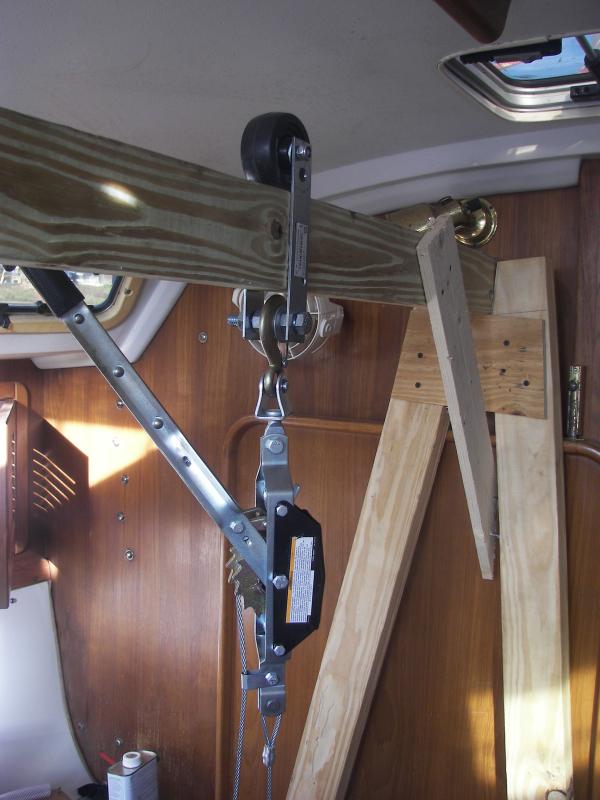

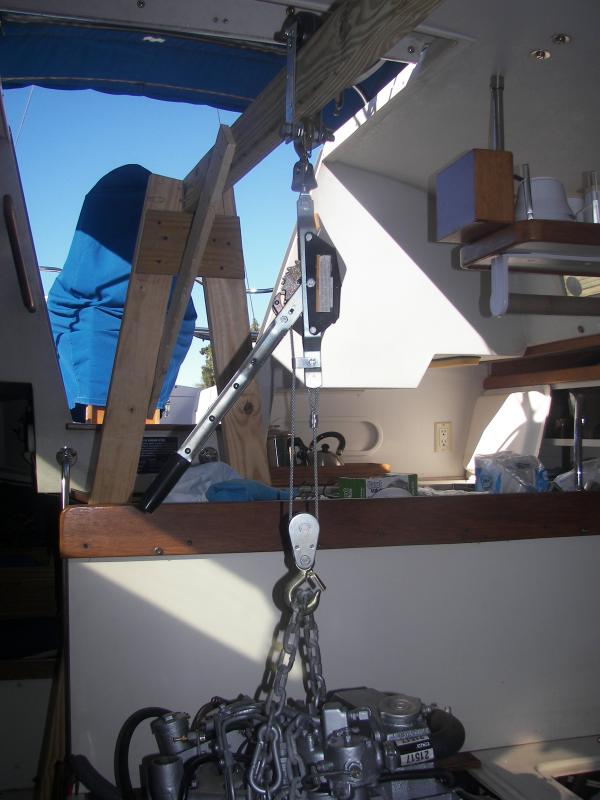

Hoist roller assembly and A-frame.
View attachment 84523

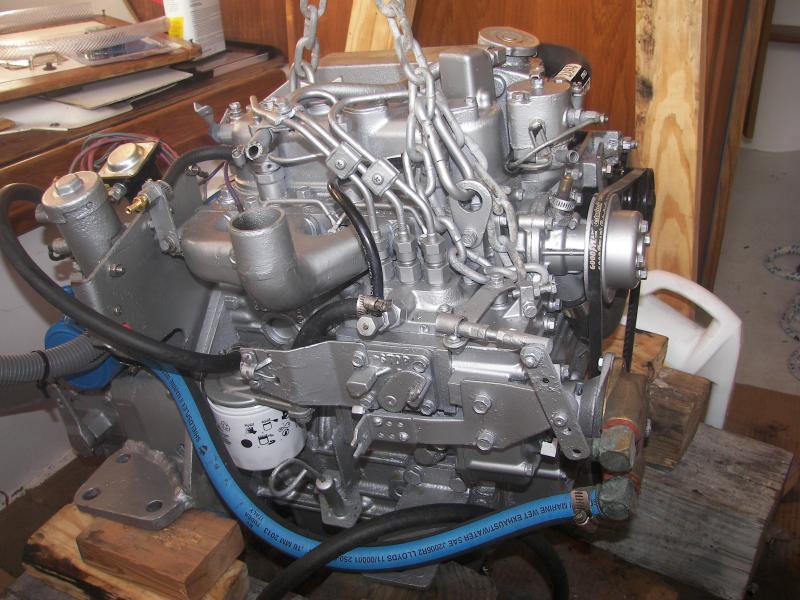

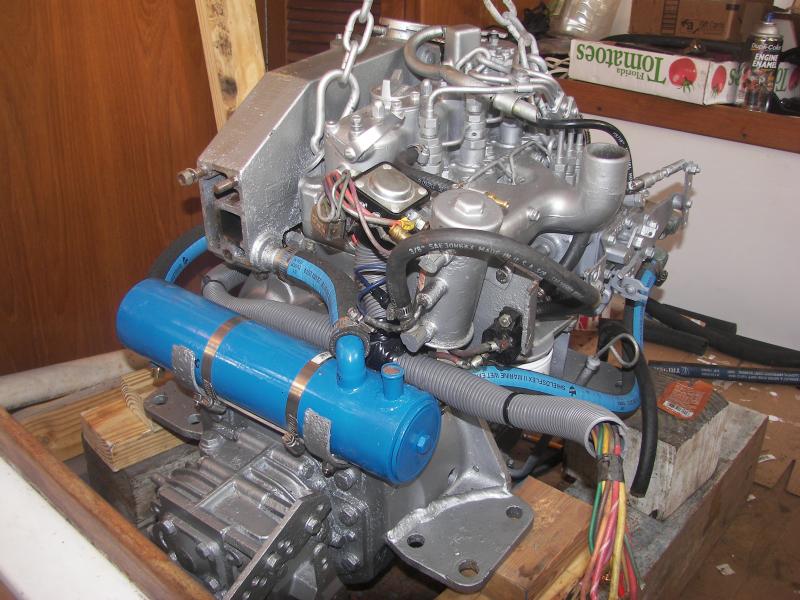

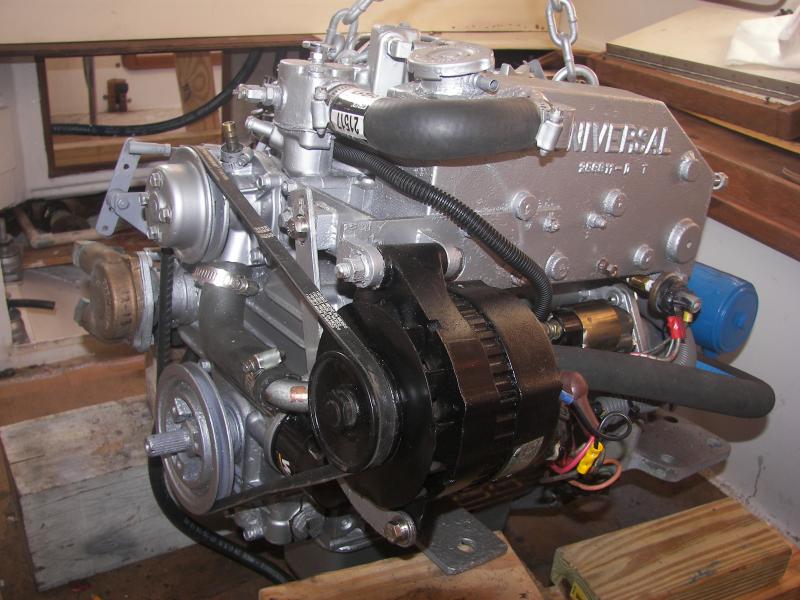

Engine cleaned and painted, new hoses and new (reconditioned) heat exchanger.
View attachment 84509View attachment 84510

View attachment 84511

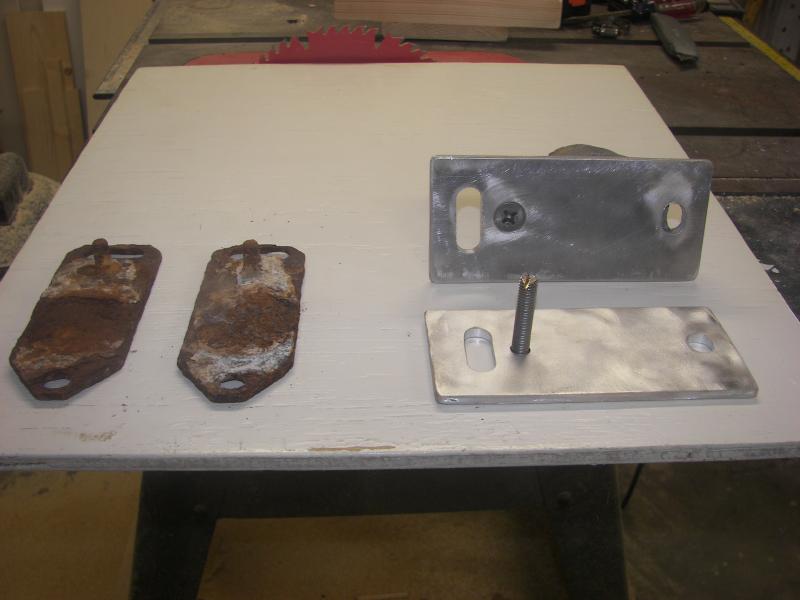

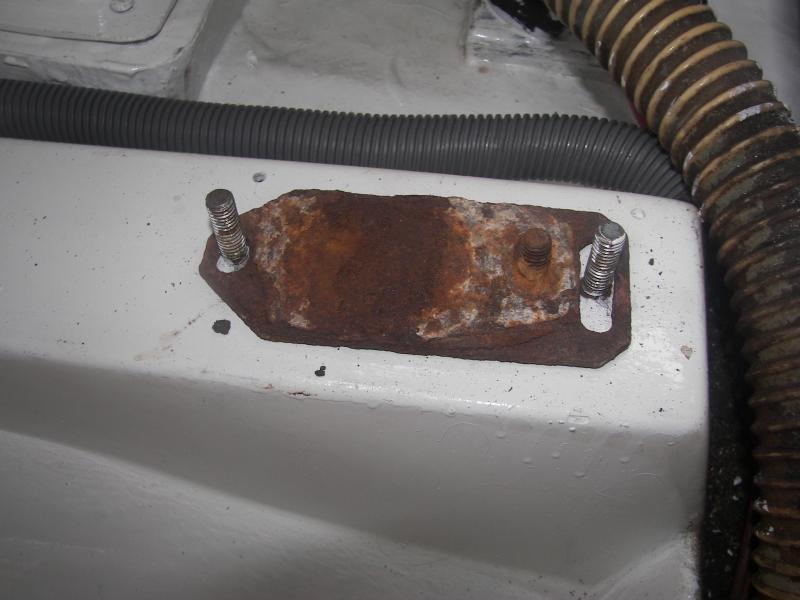

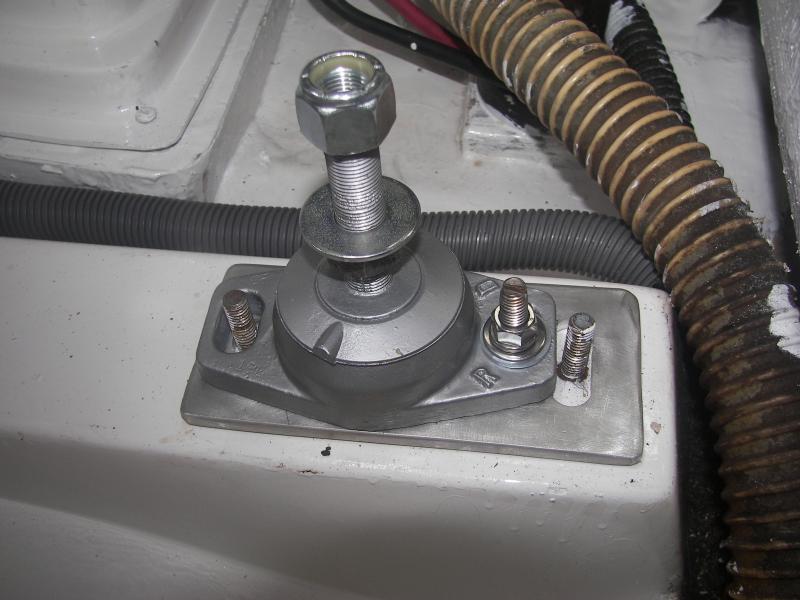

I made new aluminum adapter plates (1/4" stock) to hold the motor mounts, replacing the old rusted steel adapter plates. The mounting studs in the stringers were tight and seemed OK.
View attachment 84515 View attachment 84516
View attachment 84514

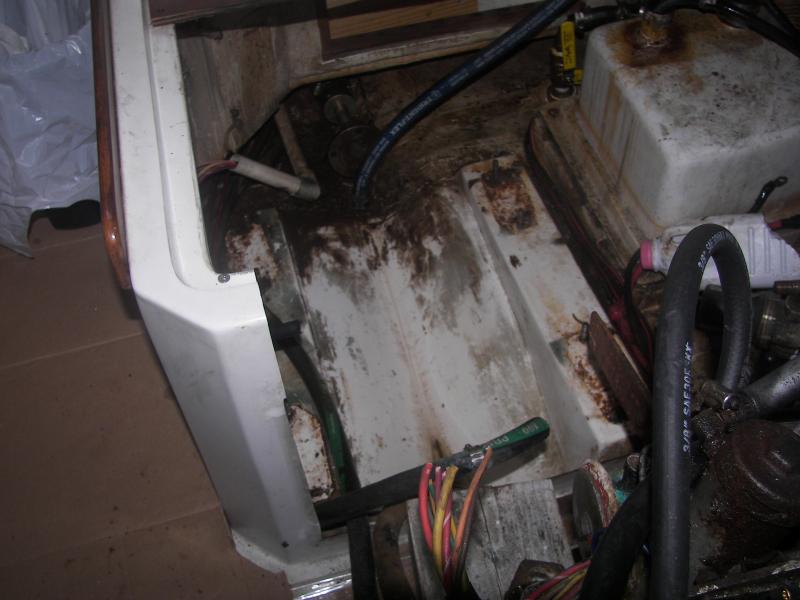

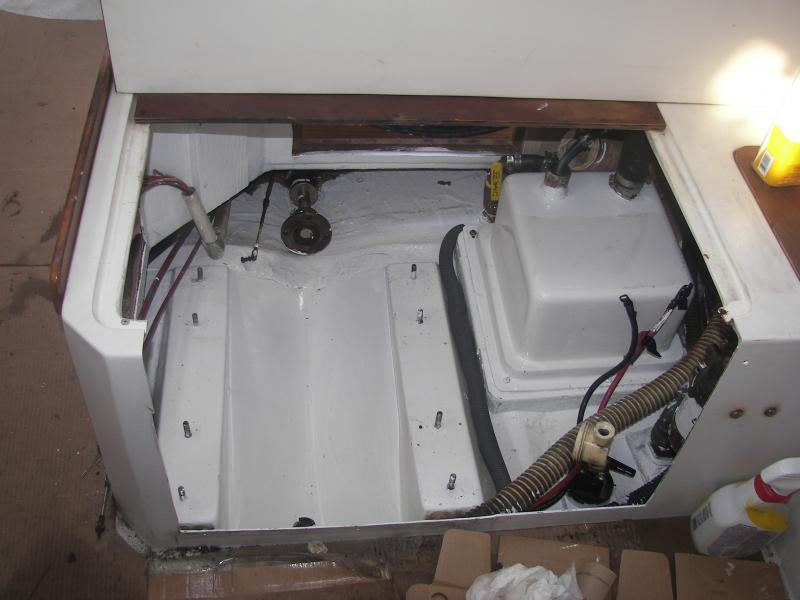

Bilge before and after:
View attachment 84512View attachment 84513

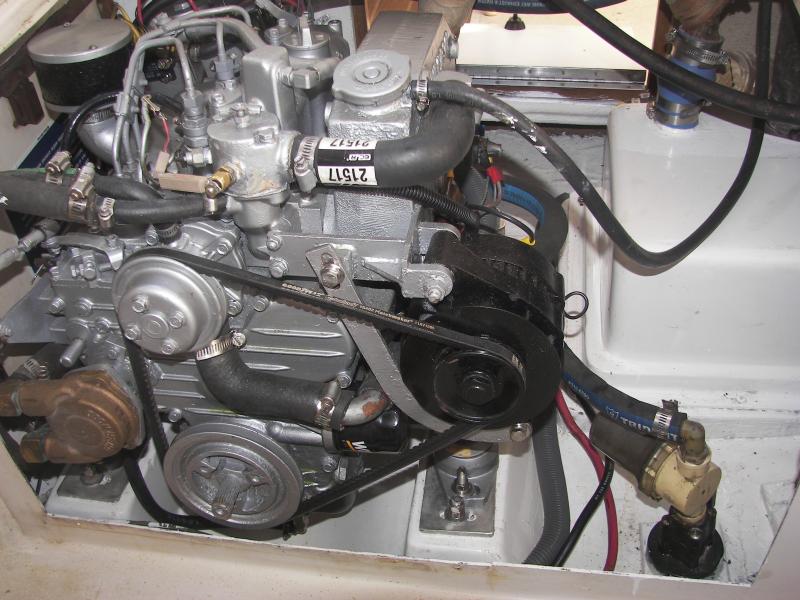

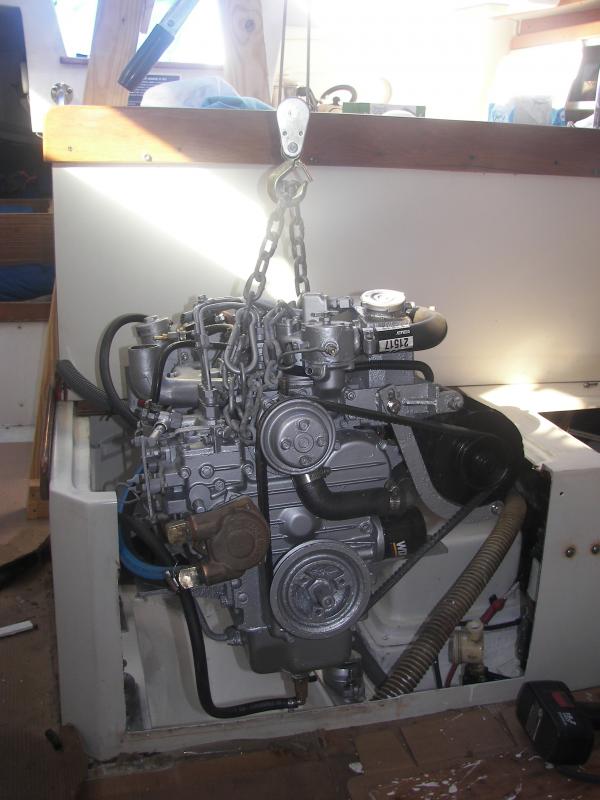

Putting the engine back in place.
View attachment 84517View attachment 84518
View attachment 84508

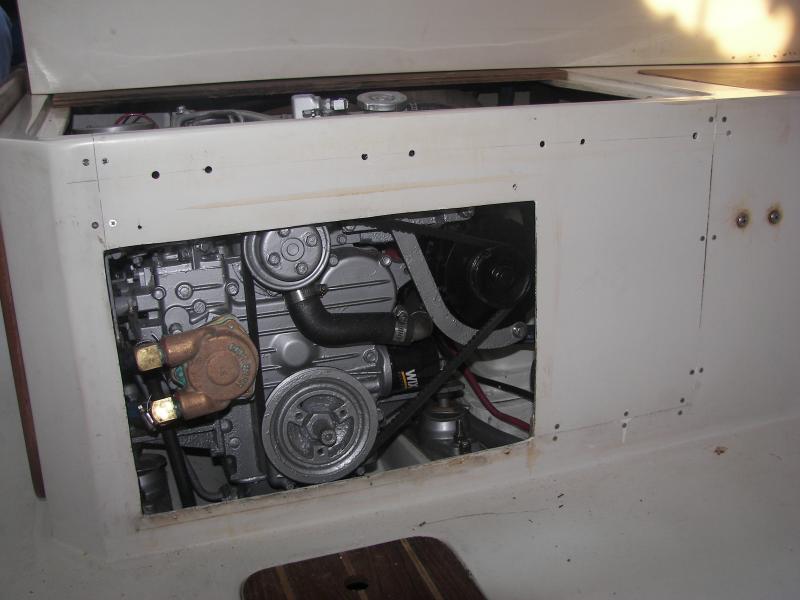

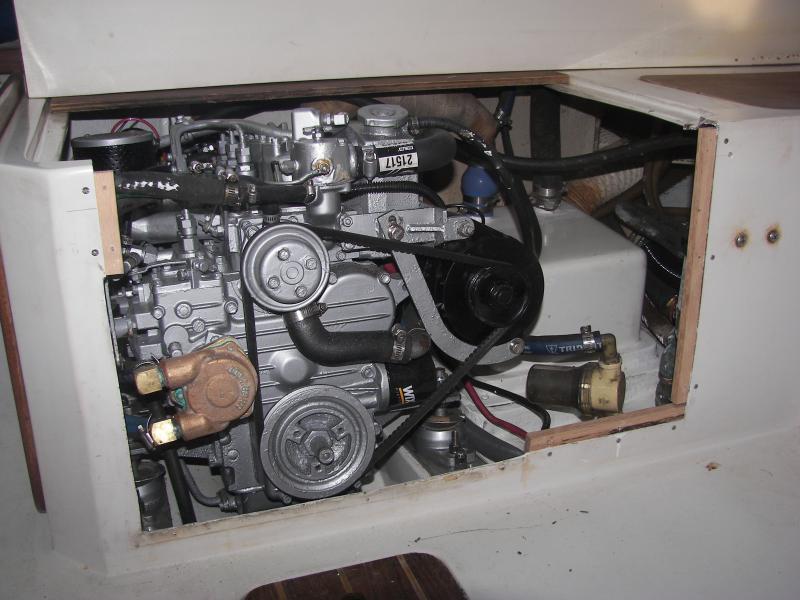

Oak strips for attaching the front of the dinette seat and dinette section screwed back in place.
View attachment 84519View attachment 84520

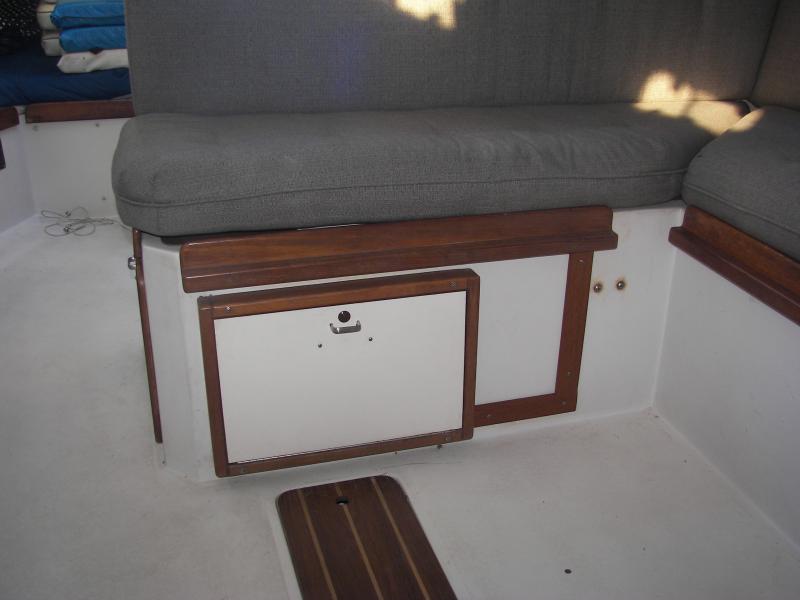

Completed, using teak strips to cover seams. I also moved the table support over a few inches to cover the seam on the starboard side.

View attachment 84521

If I have to remove the engine again, I can remove the wood strips and unscrew the front section of the dinette seat. I also saved the A-frame supports and roller assembly.
