Boat wiring diagram program

[smokey73]

Does anyone know of a good wiring diagram program availble for free or inexpensive. I'd like to diagram out the wiring plan for my Lithium conversion.x

Thanks in advance



[Project_Mayhem]

draw.io is one of my favorites. You can copy and paste images of equipment



[dlochner]

I just came across this program the other day. Can't say much about it as I only used it for about 3 minutes, but bookmarked it.

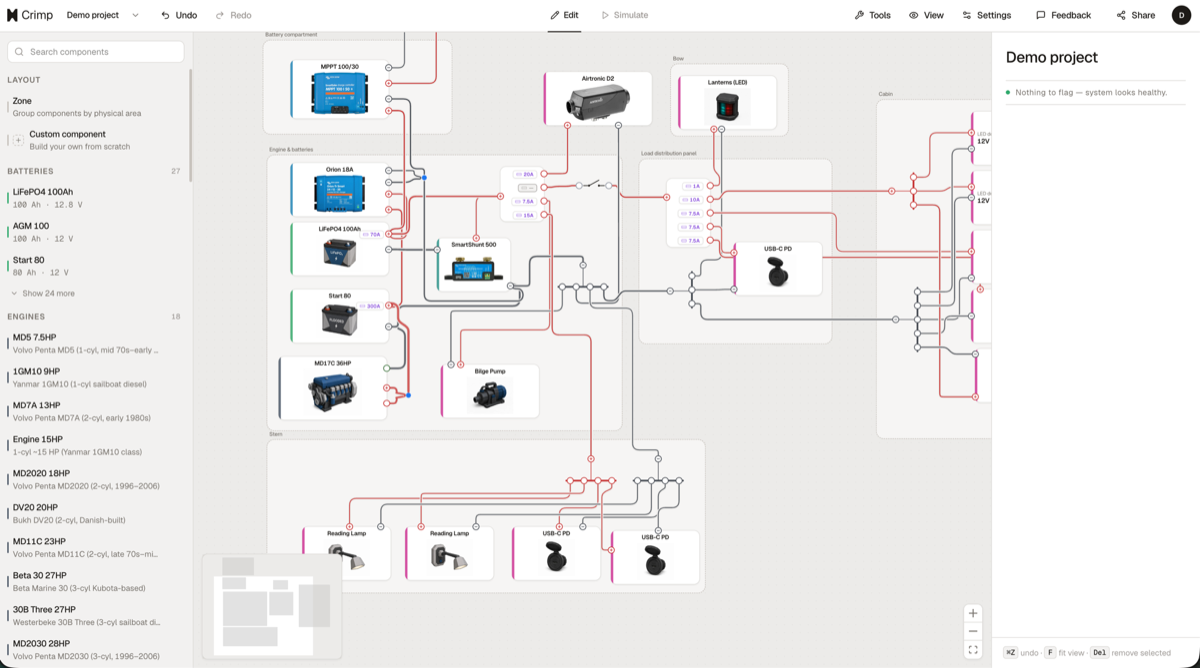

Crimp — DC system designer

Plan 12V electrical systems for boats and campervans. Lay out components, route cables, and get cable & fuse sizing.

crimp.studio

Some folks are using MicroSoft Visio to draw circuits. I picked up a copy for about $10 from StackSocial.com

The drawing features in MS Word also work. Takes a bit to get the hang of it, but works for basic drawings.



[rgranger]

Just did a google for free wiring diagram software... both auto and boat .... literally hundreds of options poppped up.
