Battery troubles

[Captain W]

After reading all of your suggestions and reading the links; I think I will follow Tom’s advice and stop studying for my battery “doctorate” and get a couple of FLAs. I am overwhelmed by the amount of battery information out there.

One question I didn’t see discussed is the difference between group 27 and group 31? It seems like they are interchangeable?



[Tally Ho]

I stuck 2) 6-volt, 210 AH golf cart batteries on my boat this year. The are smaller than a group 27 foot print, but they are a bit taller. For deep cycling, these are a good choice in a FLA battery. In series, these give me 210AH capacity at 12 volts. Got them at Sam’s Club for about $80 a piece…hard to beat for FLA technology.

Greg



[jssailem]

I didn’t see discussed is the difference between group 27 and group 31

Size does matter...

Common Battery Case Sizes by BCI Group Numbers | BatteryStuff

Learn more about BCI Group Numbers and the universally recognized sizes of the battery cases most commonly used in marine, RV, UPS and solar PV applications.

www.batterystuff.com

12 Volt Batteries.

BCI GROUP NUMBER: 27
Universal Battery #: UB12900-45826 (AGM)
Lifeline Battery #: GPL-27T (AGM)
Universal Battery #: UB27-47608 (GEL)
Trojan Batter #: T27-GEL (GEL)
DIMENSIONS IN INCHES*: 12.00" 6.63" 9.06" LxWxH
Amp Hours (AH): 90

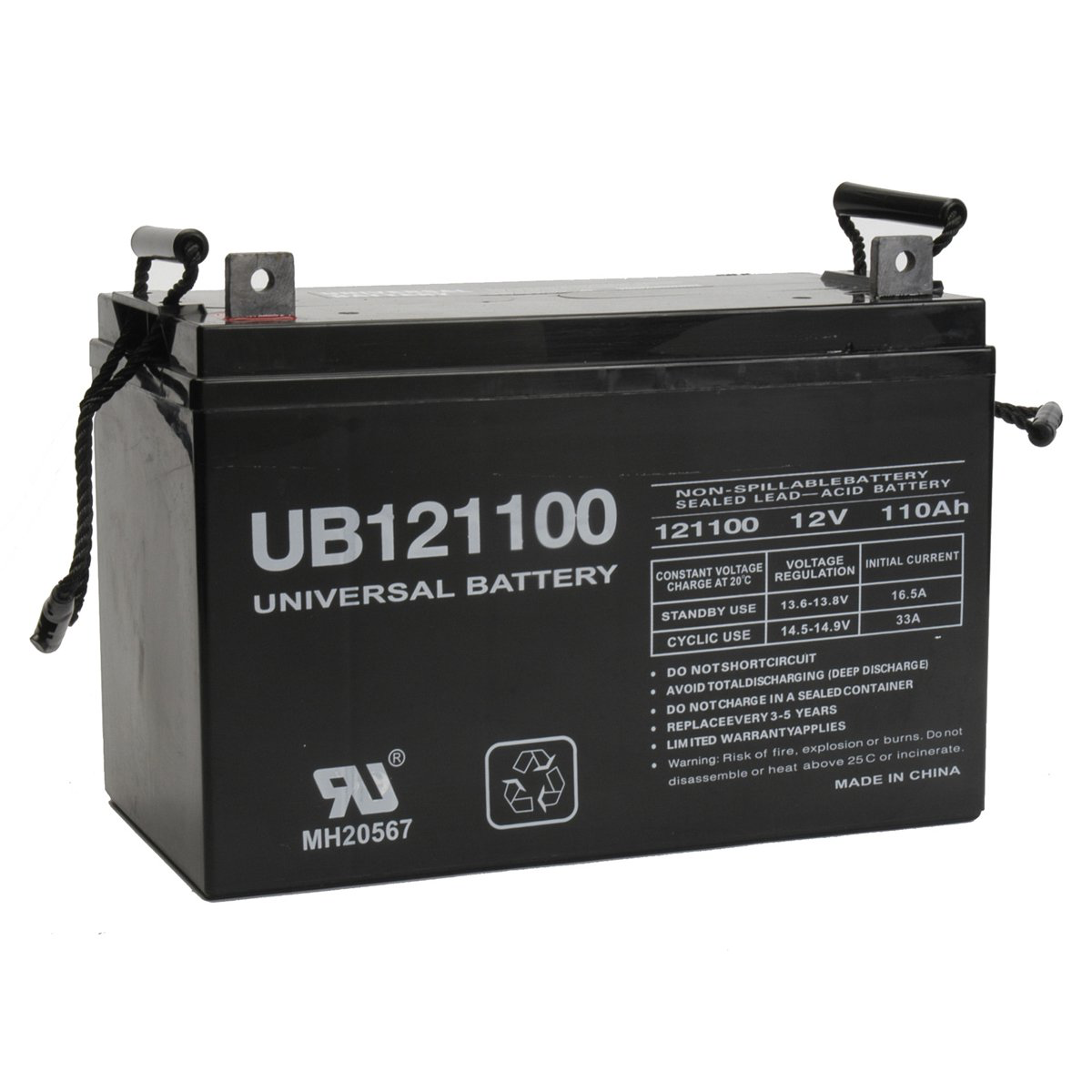

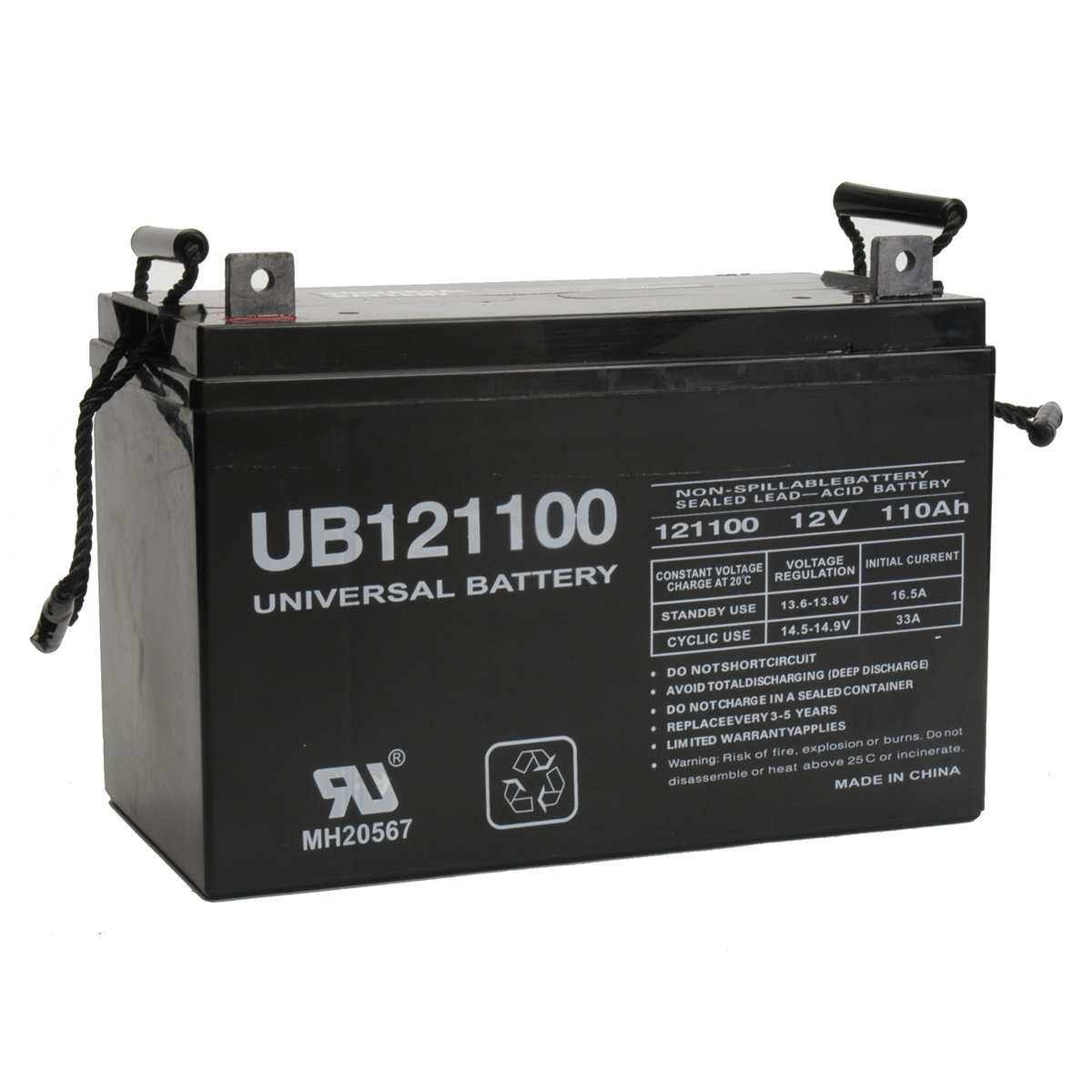

BCI GROUP NUMBER: 30H
BatteryStuff Part #: UB121100-D5751
DIMENSIONS IN INCHES*: 13" 6.8" 9.5" LxWxH
Amp Hours (AH): 110
There is a hybred in this group size a FLA battery made by Dyno Batteries in Seattle. It is the same size but uses thicker plates, and has an Amp Hour Rating (AH): 135 with a cost of about $155.
BCI GROUP NUMBER: 31
Lifeline Battery #: GPL-31XT (AGM)
Lifeline Battery#: GPL-31T (AGM)
MK Battery #: E31-SLD-G (GEL)
DIMENSIONS IN INCHES*: 12.9" 6.75" 9.27" LxWxH
Amp Hours (AH): 125

BCI GROUP NUMBER: 4D
Universal Battery #: UB4DAGM-45965 (AGM)
LifeLine Battery #: GPL-4DL (AGM)
Universal Battery #: UPG4DGEL-40701 (GEL)
MK Battery #: 8G4D (GEL)
DIMENSIONS IN INCHES*: 20.5" 8.13" 10" LxWxH
Amp Hours (AH): 200
