Another "identify this part" thread.

[Chris Patterson]

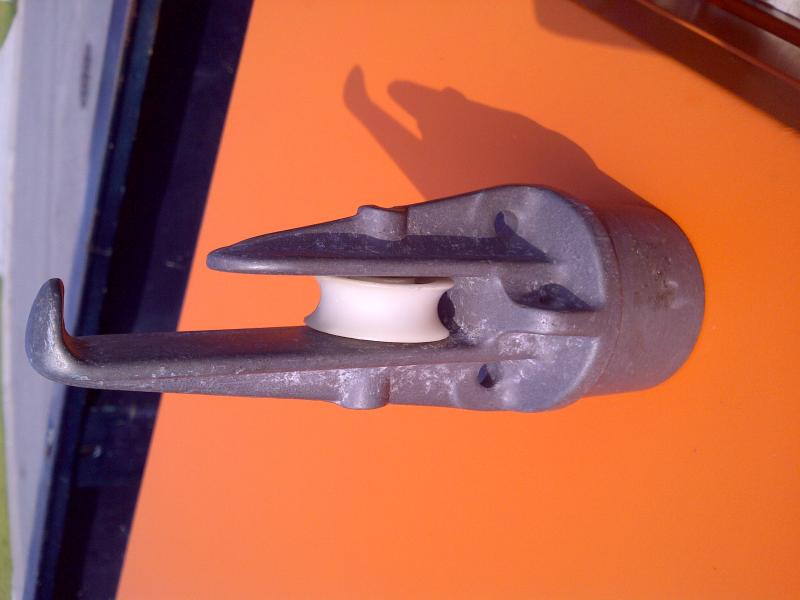

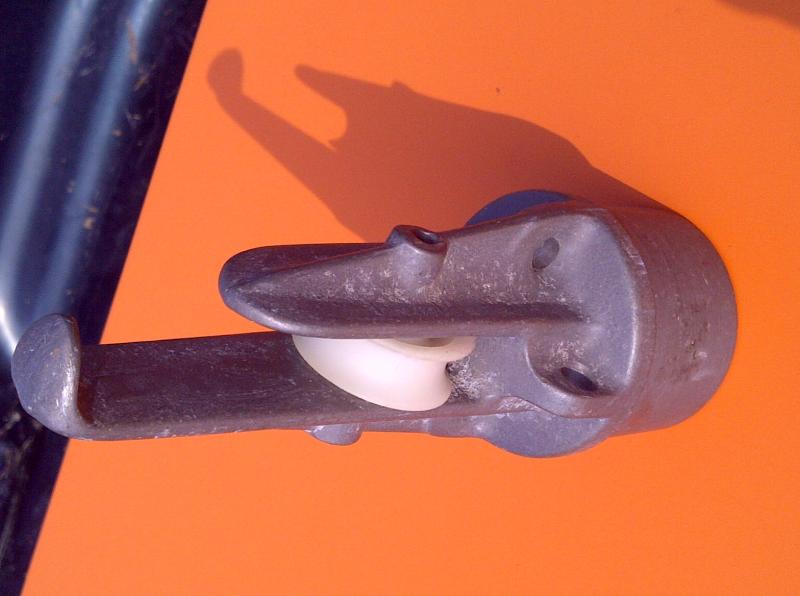

In the process of building another spinnaker pole, my neighbor,(on a San Juan 30), donated this pole end. He left in onboard the boat in my absence; and myself, nor anyone else has had any dealings with such a thing. I was wanting the hooked end, that attaches to the mast, but short of lashing this thing on.......I give up.
I hate to be rude, and give it back, but if I can't use it...

Anybody?



[kloudie1]

That is a jumper strut or reaching strut end fitting..
http://www.jamestowndistributors.co...amilyName=Tylaska+Reaching+Strut+Outboard+End
Used on a short, separate strut to get a better lead for the spinnaker pole.
Shown here by West Marine Advisor:
http://www.westmarine.com/webapp/wc...11151&catalogId=10001&page=Spinnaker-Controls



[Chris Patterson]

Well, that was simple enough. It never occurred to me to be anything other than what it was presented as. I hated like anything to ask the fearless leader, of which the spinnaker is her forte. Not humble enough I guess...

So, thanks a lot Claude. Very good info!



[Dan Johnson]

I got one of those...

on one end of the pole I got for free to use as a whisker pole.

Thanks, Claude, I now know what to call it!



[kloudie1]

Certainly can be used on the outboard end of a whisker pole, but it'll need a regular hook on the mast end to keep it from rotating..
Good luck with it !



[cat38skip]

That is the outboard end of a reaching strut, used to hold the spinnaker guy outboard of rigging, lifellines and stanchions when the pole goes forward while reaching. The inboard end of the strut attaches to the mast and the the strut is often lashed to the stay to maintain proper height.



[Chris Patterson]

Holy crap, the price on that thing about took my breath!
I feel absolutely compelled to use it for something.
By the way, it's NOT for the C22..
