40 Autopilot Linear drive Mounting Location
- Thread starter DonEvans
- Start date
Don-
Just installed mine, will send pics later this week. I secured a steel angle on the horizontal bracket already installed & glasses into the transom. There’s not enough room back there to drill the rudder stock in order to mount the drive quadrant so I had the yard do a short haul to drop the rudder and drill it. $$$. This was the easy part, installing the rudder position sensor was a nightmare.
Just installed mine, will send pics later this week. I secured a steel angle on the horizontal bracket already installed & glasses into the transom. There’s not enough room back there to drill the rudder stock in order to mount the drive quadrant so I had the yard do a short haul to drop the rudder and drill it. $$$. This was the easy part, installing the rudder position sensor was a nightmare.
Mine was installed on the starboard side of the cockpit well and connects to an arm on the rudder stock.
I can send a picture in a couple of days but the downside of mine is that they had to make the propane locker smaller.
It was an Alpha 44 that I'm about to convert to pypilot.
I can send a picture in a couple of days but the downside of mine is that they had to make the propane locker smaller.
It was an Alpha 44 that I'm about to convert to pypilot.
Hi LouisMK, was hoping you would chime in. How has your sailing season been. look forward to the pics
I agree not ideal to loos space in the propane locker. Appreciate you taking the tine to take some pictures

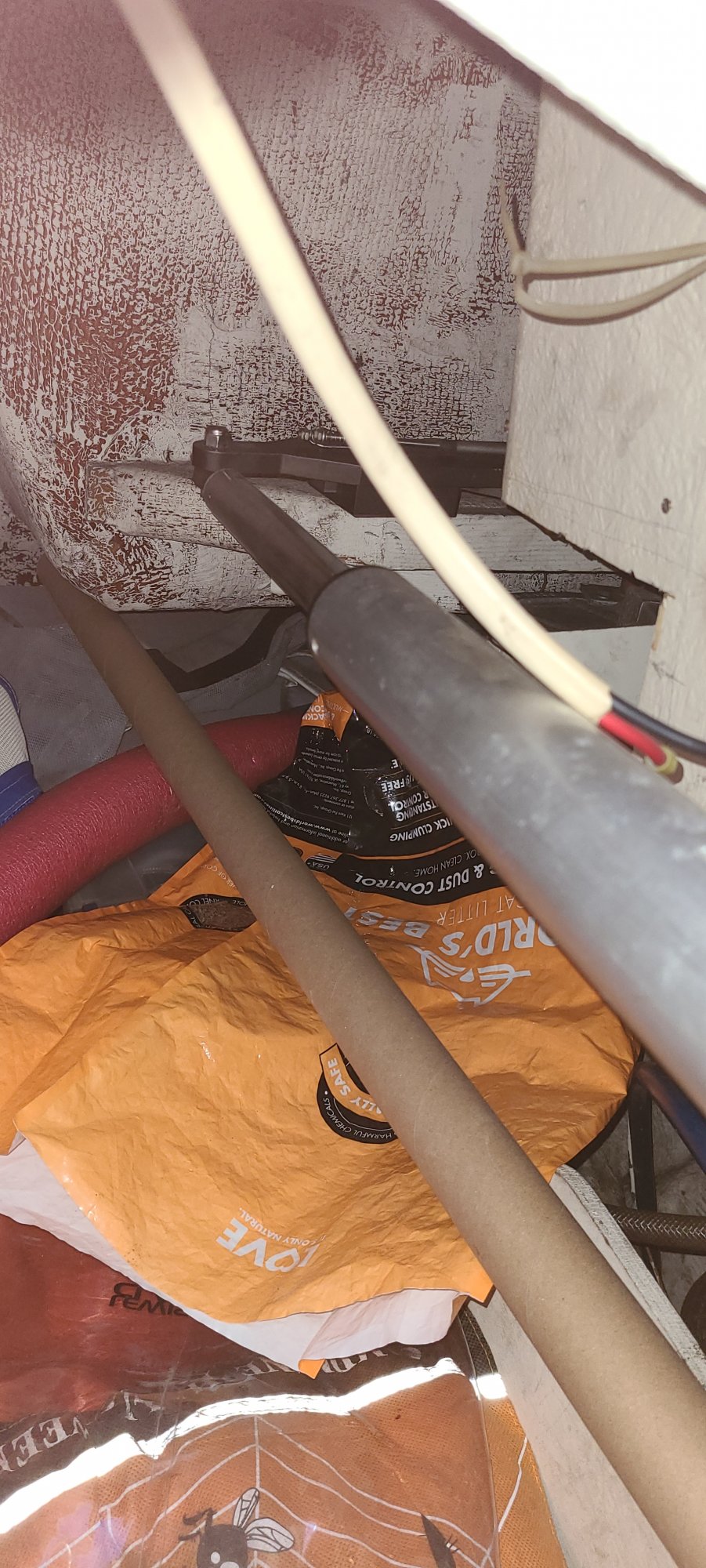

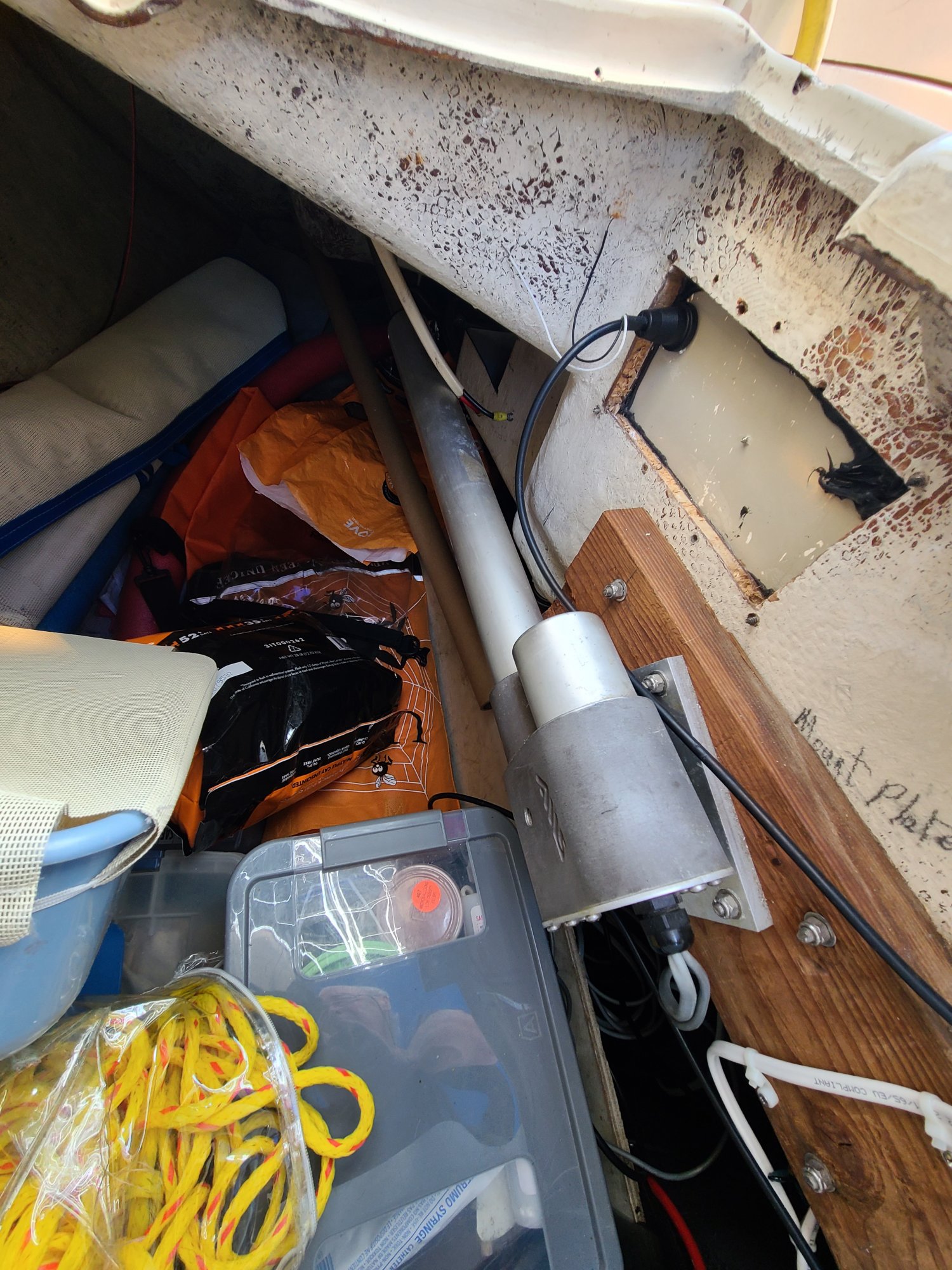

Here are a couple of shots. Excuse the messy background. We're about to head out and this lazarette is our "junk drawer".
The cutout in the cockpit well is where the old control panel was.
The bad news was the loss of propane space. Now we have a 17lb fiberglass tank and a 10 lb aluminium tank that combine to give us about 80 days of cooking.
The good news is that the ram uses a tiny amount of power.
The cutout in the cockpit well is where the old control panel was.
The bad news was the loss of propane space. Now we have a 17lb fiberglass tank and a 10 lb aluminium tank that combine to give us about 80 days of cooking.
The good news is that the ram uses a tiny amount of power.
Attachments
it never crossed my mind as a possible install location, unfortunate with thenpropoane locker interference.
i see the drive is attached to the rudder stock via a tiller arm. Question: does the arm have a bolt through the rudder stock? or only a set screw?
I think that, with a little thought, they could have installed it without notching the propane locker.
The arm is located with a set screw. Its a 2 part arm with a spring loaded lock actuated by a cable from the cockpit.
I like that part as there is no drag when it is disengaged.
The arm is located with a set screw. Its a 2 part arm with a spring loaded lock actuated by a cable from the cockpit.
I like that part as there is no drag when it is disengaged.
Hi LouisMK, dredging back up an older post. Next time you are at your boat could you take a picture of the autopilot linear drive installation. It would be a great help.
Side note to all with a 40. Found "Sailing SV Barefoot Adventures" on YouTube who is sailing a 40 in the Caribbean.

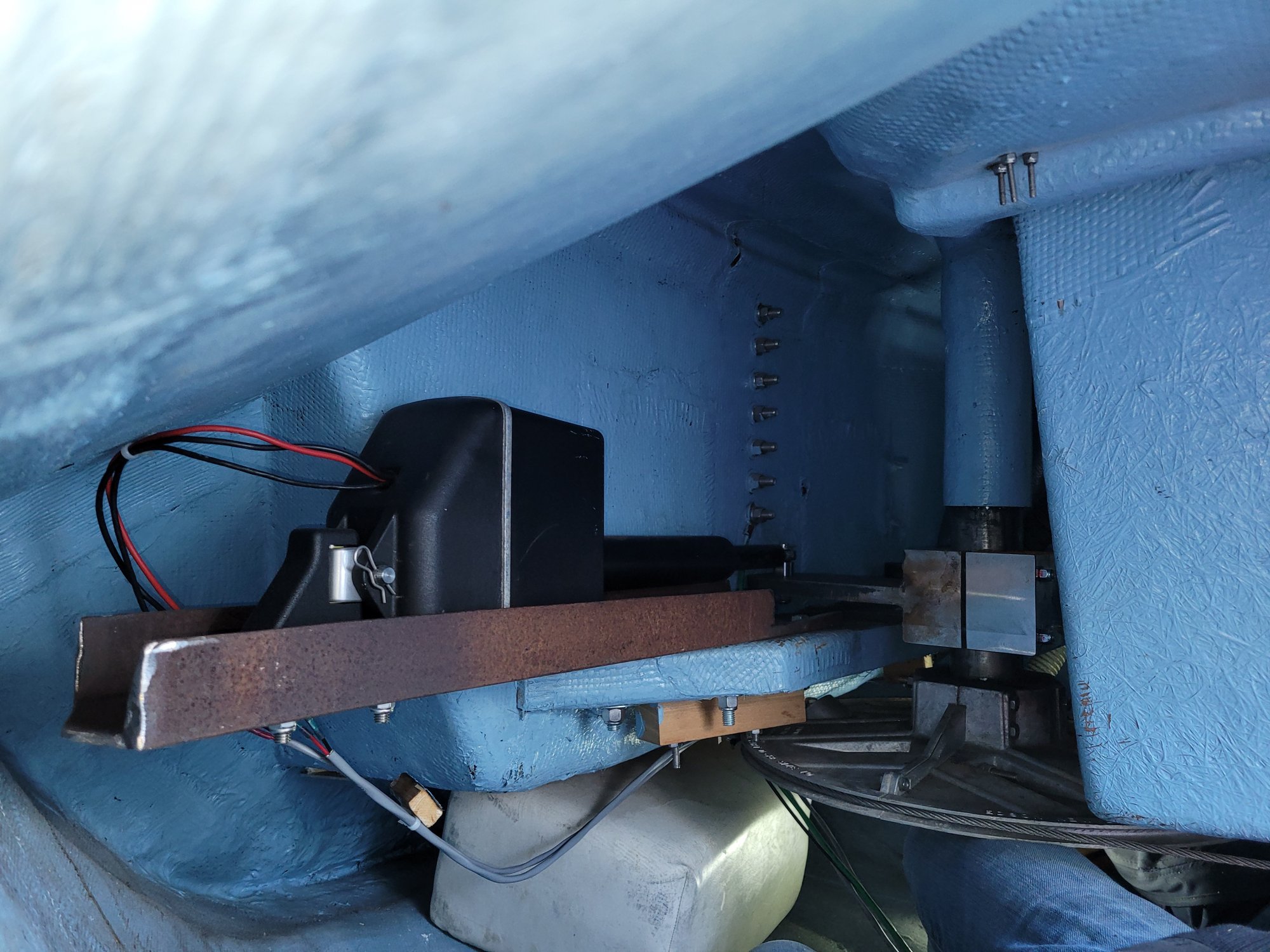

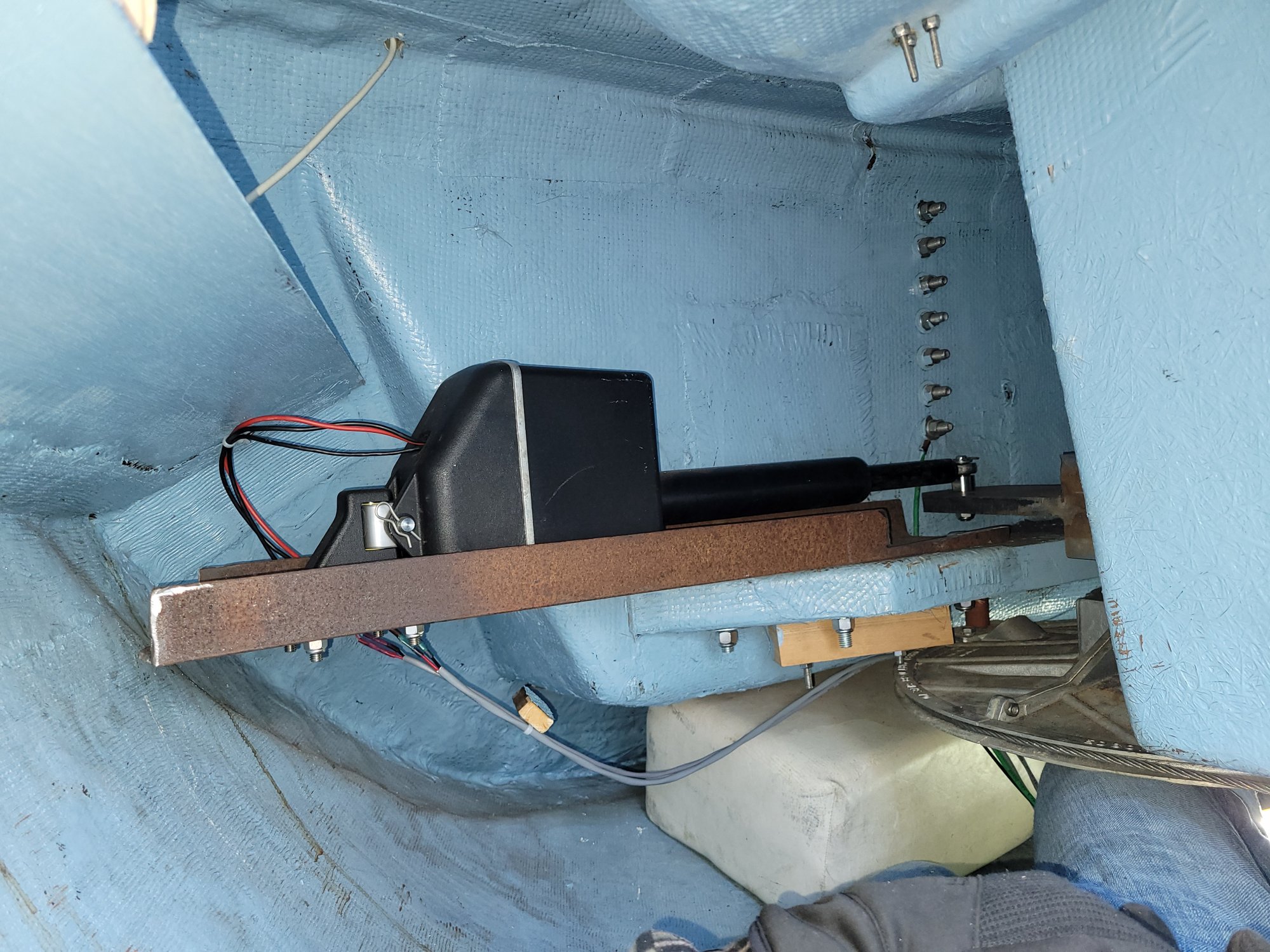

OK, so here is the finished product! (Finished tonight).

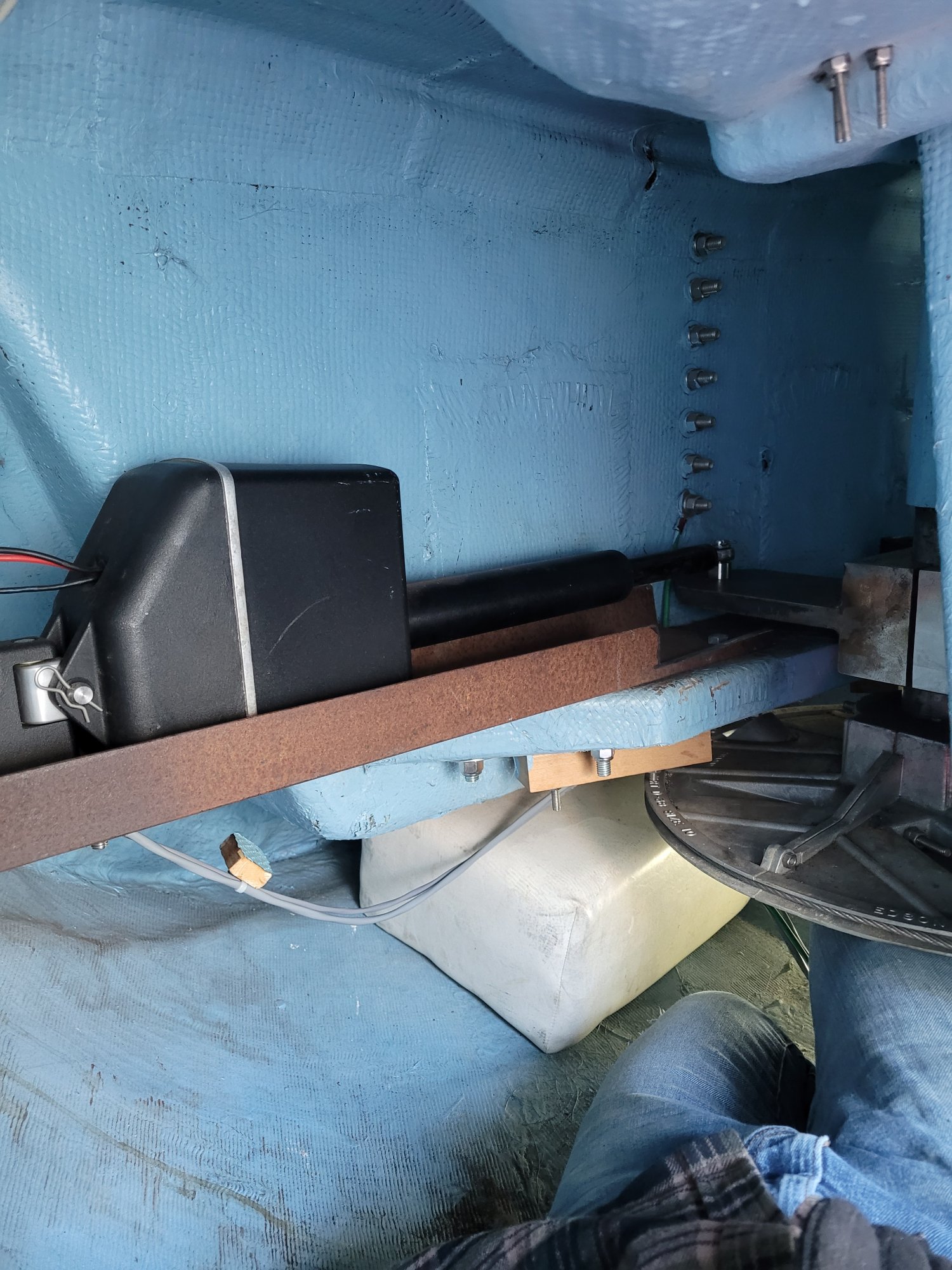

6x3 angle about 34in long bolted to the shelf on the starboard side. Raymarine Autohelm Autopilot Type 1 12v Linear Drive M81130 bolted to angle. Raymarine Acu-200 Autopilot Actuator Control Unit E70099 and Raymarine P70S Autopilot Controller. Raymarine EV-1 Sensor Core #E70096

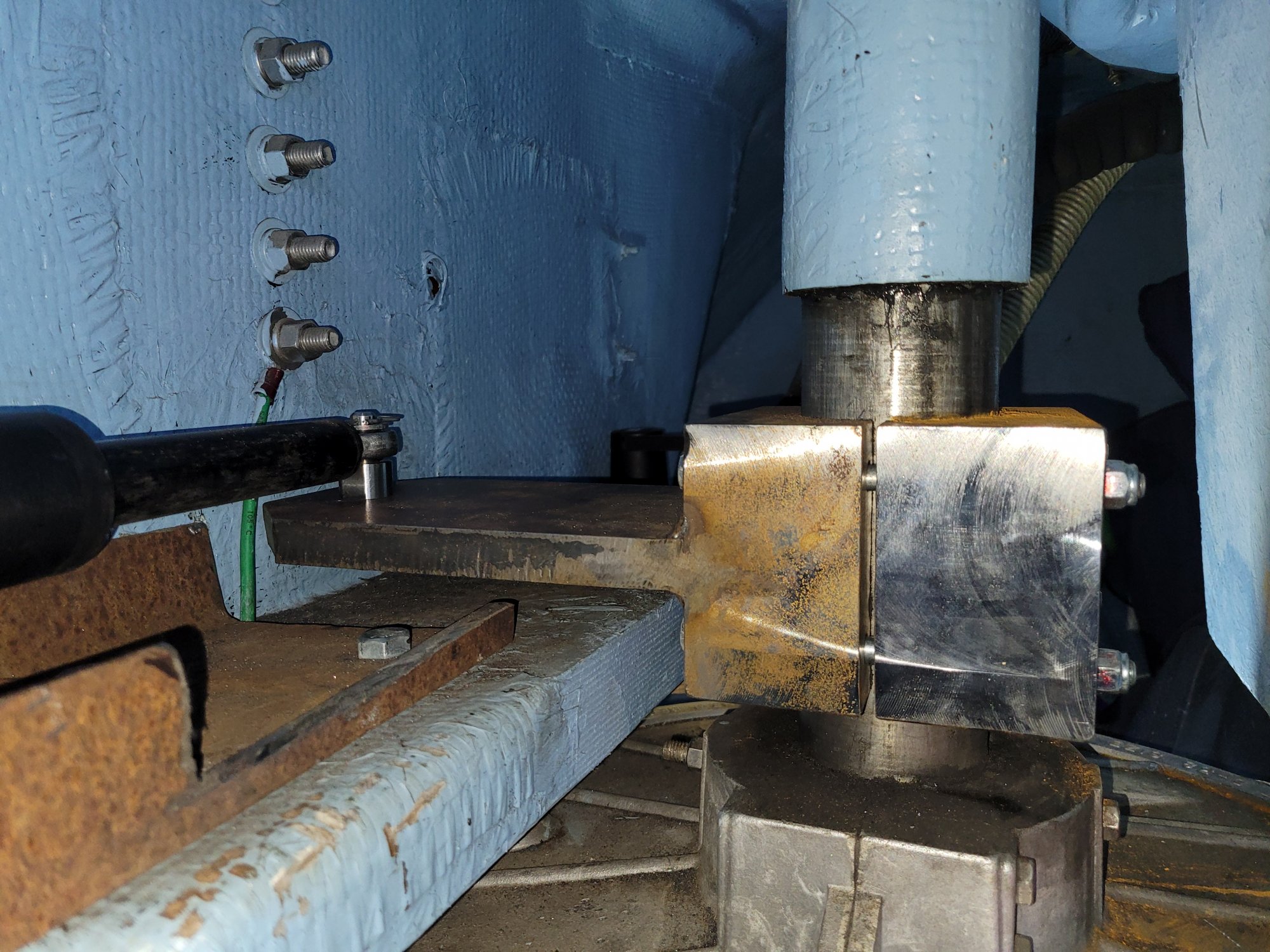

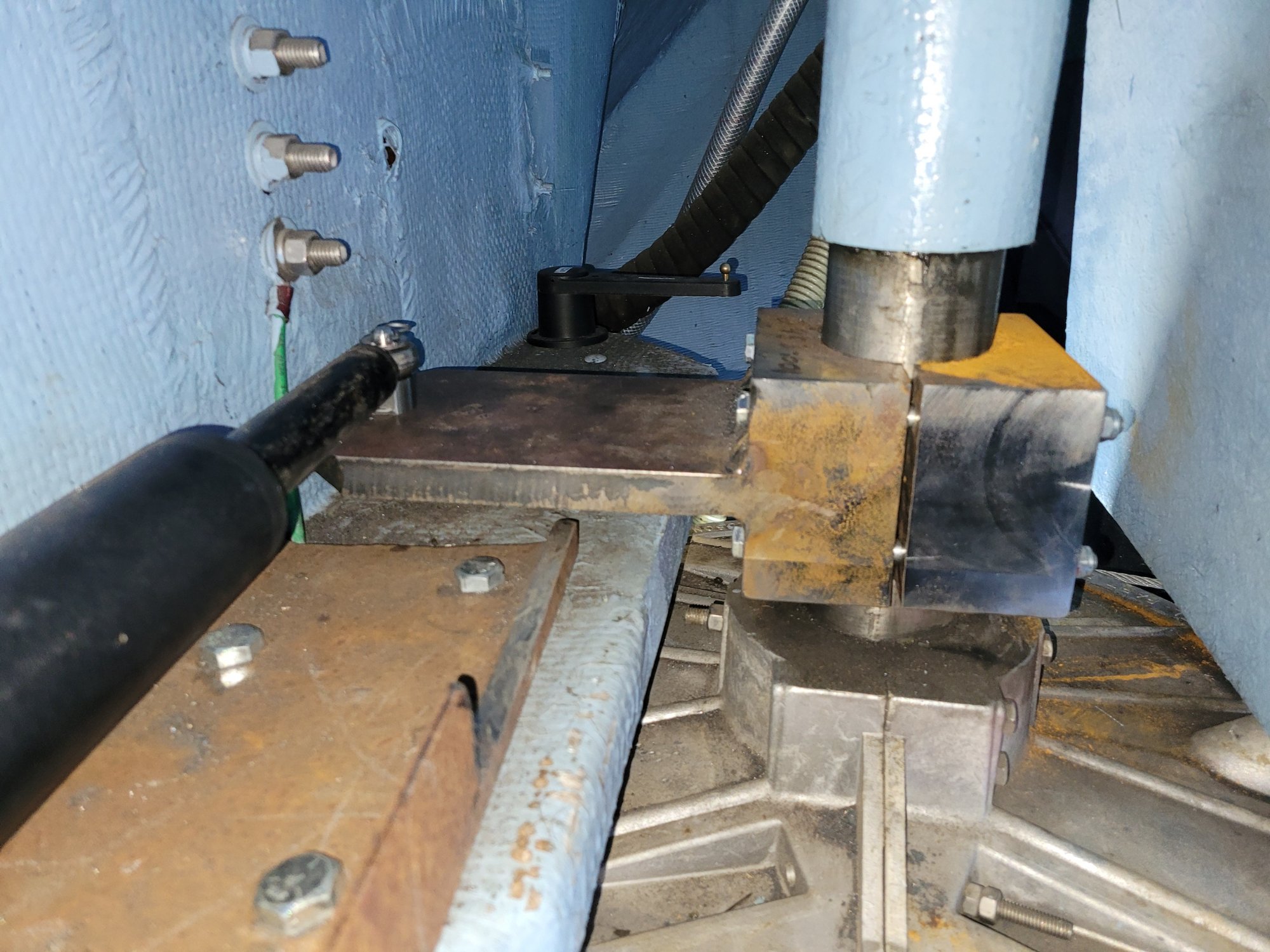

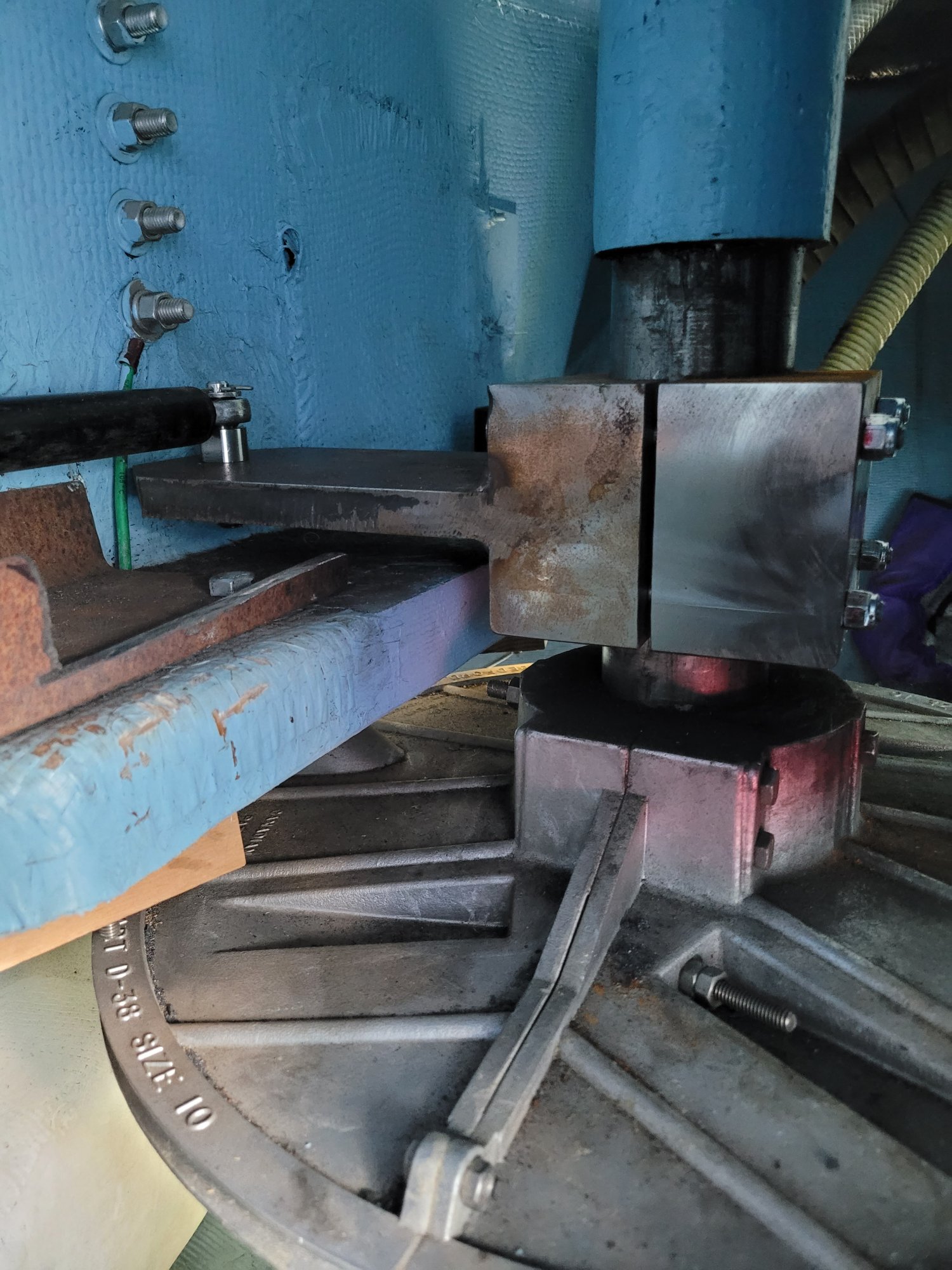

I designed the Teller arm and had a machine shop fabric. Essentially a 6x6 block with a 4im dia hole for the rudder shaft. 1in thick plate for the arm. It is clamped to the rudder shaft by 4 bolts. No set screw or bolt through the shaft. (Time will tell if either is needed)

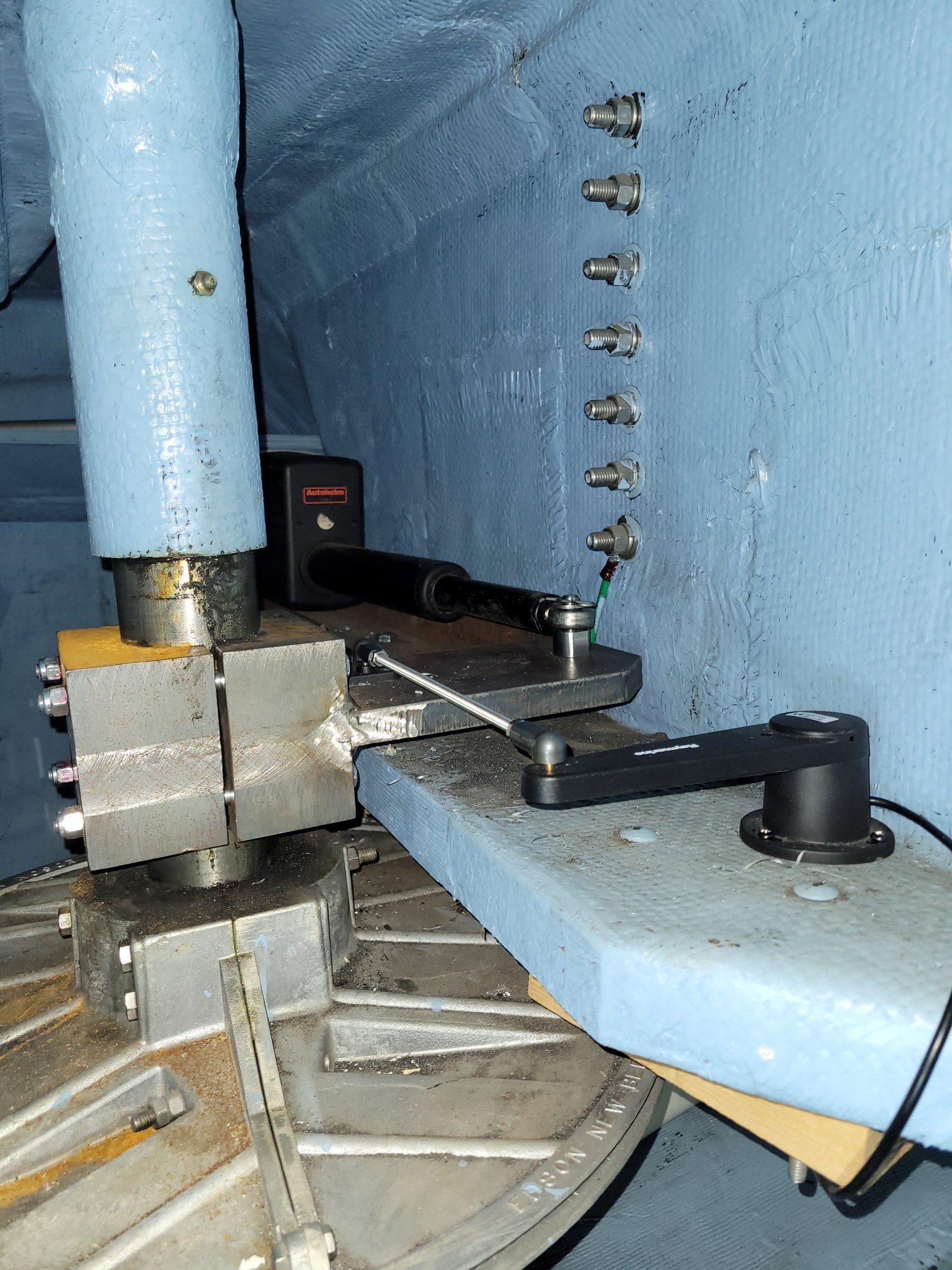

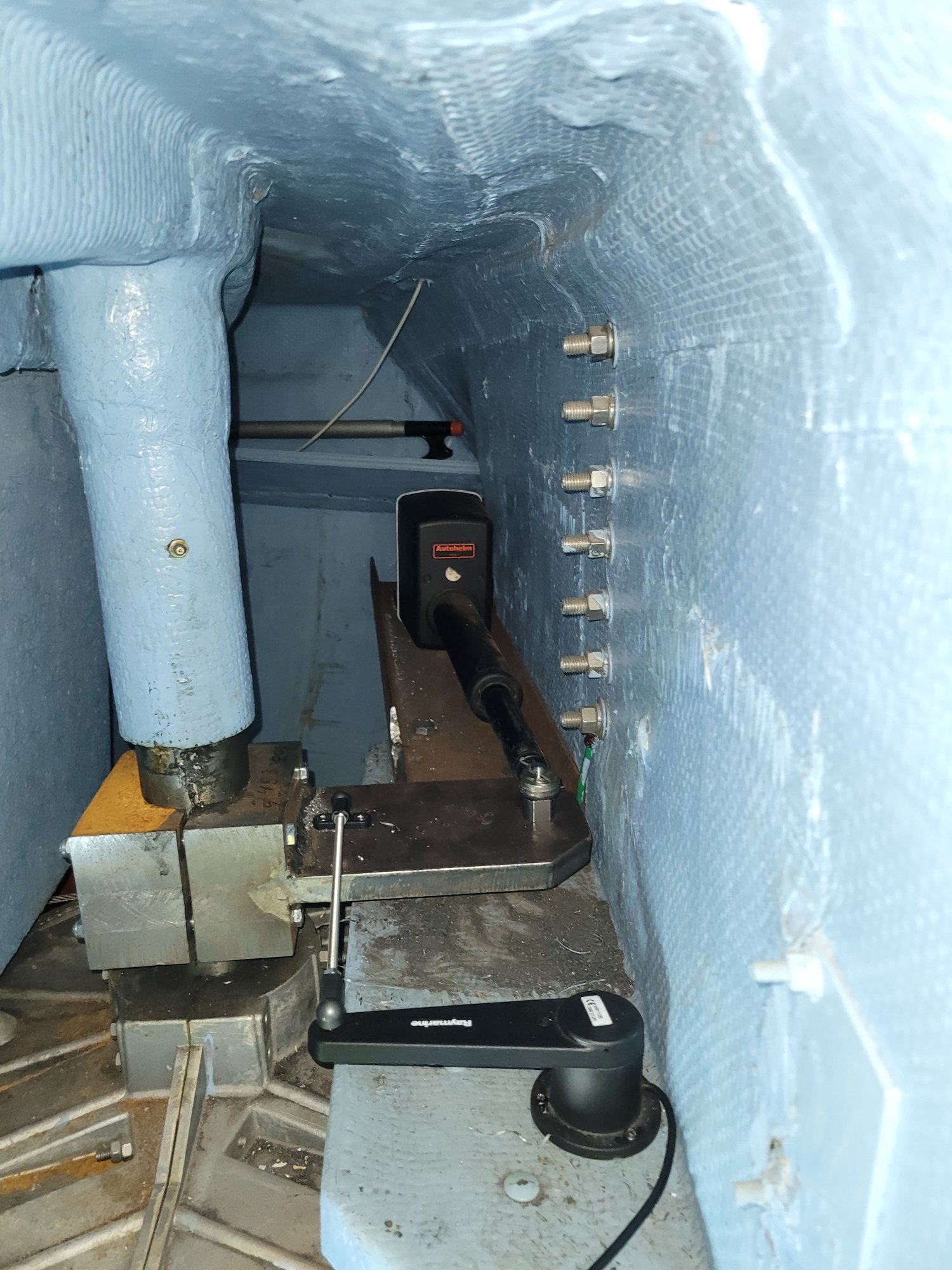

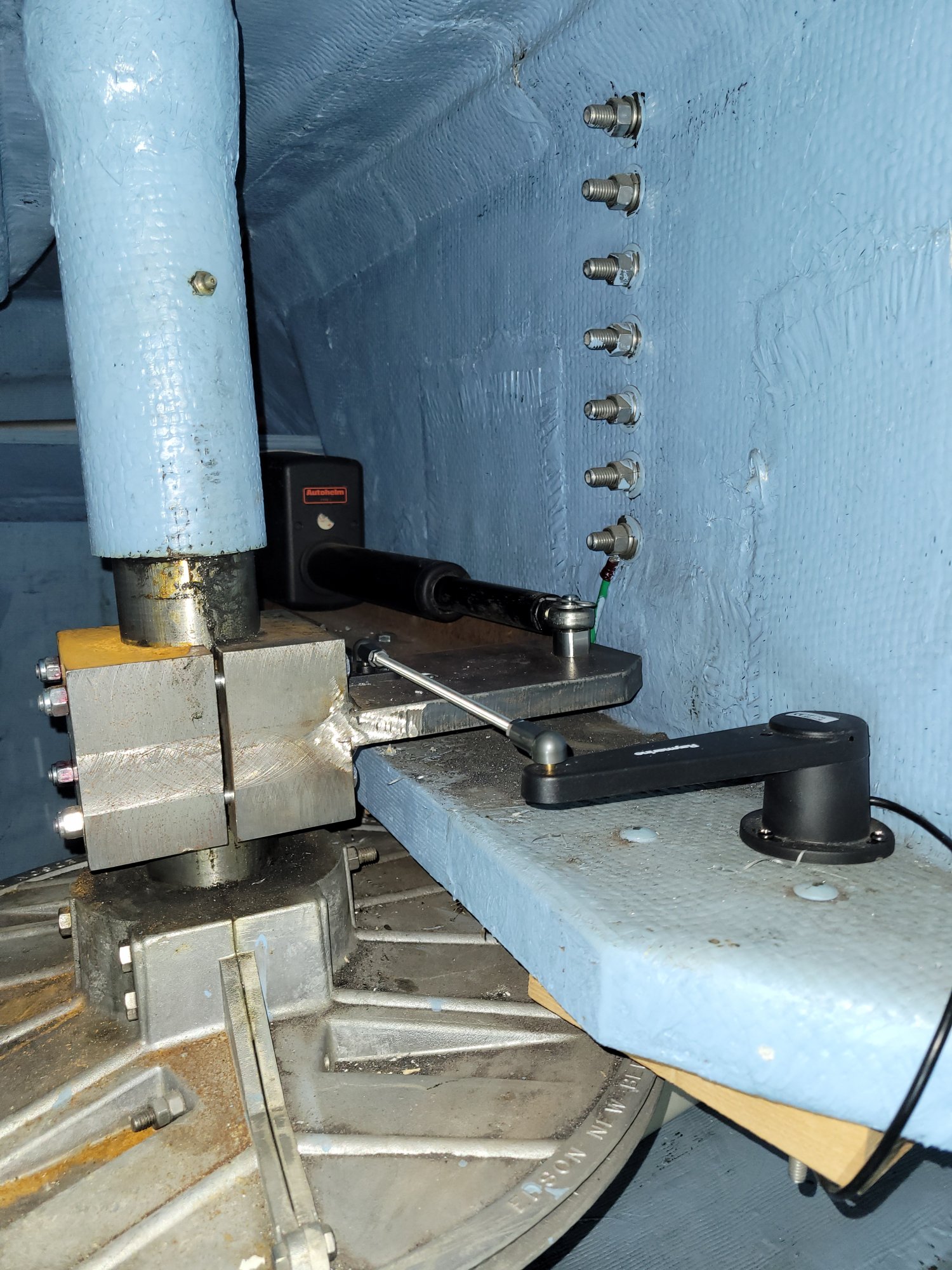

Raymarine Rudder Reference Indicator M81105 mounted on the port side of the shelf.
6x3 angle about 34in long bolted to the shelf on the starboard side. Raymarine Autohelm Autopilot Type 1 12v Linear Drive M81130 bolted to angle. Raymarine Acu-200 Autopilot Actuator Control Unit E70099 and Raymarine P70S Autopilot Controller. Raymarine EV-1 Sensor Core #E70096
I designed the Teller arm and had a machine shop fabric. Essentially a 6x6 block with a 4im dia hole for the rudder shaft. 1in thick plate for the arm. It is clamped to the rudder shaft by 4 bolts. No set screw or bolt through the shaft. (Time will tell if either is needed)
Raymarine Rudder Reference Indicator M81105 mounted on the port side of the shelf.
Attachments
That is one seriously robust tiller arm Don! Smooth sailing, wish you could join us for the Rondezvous in June.
What and Where is the rendezvous?? Late June I'll be traveling from Florida to North Carolina. (Not in the boat )
