YSM12 Cylinder Liner

[Bud22569]

I am planning to replace the cylinder liner in my YSM12 as part of a rebuild. I have not removed the old cylinder liner yet. The Yanmar shop manual is confusing about the construction of the YSM12 cylinder liner. The detailed drawings indicate that the outside wall of the cyliner liner is smooth. The instructions specific to the cylinder liner wall indicate that there are two grooves machined for the O-ring seals to seat. The liner that I have in my hand has no grooves for the O-rings to seal, it is smooth as indicated in the detailed drawings.

My question is: have any of you replaced a liner in a YSM12? If so, are the grooves for the O-rings machined into the cylinder liner or into the engine block?

The shop manual tells you to install the O-rings on the cylinder liner before sliding the liner into the block. It would appear to me that you would need to install the O-rings into the block before sliding in the liner.

Any lessons learned on a YSM12 cylinder liner replacement would be greatly appreciated.



[Rick2413]

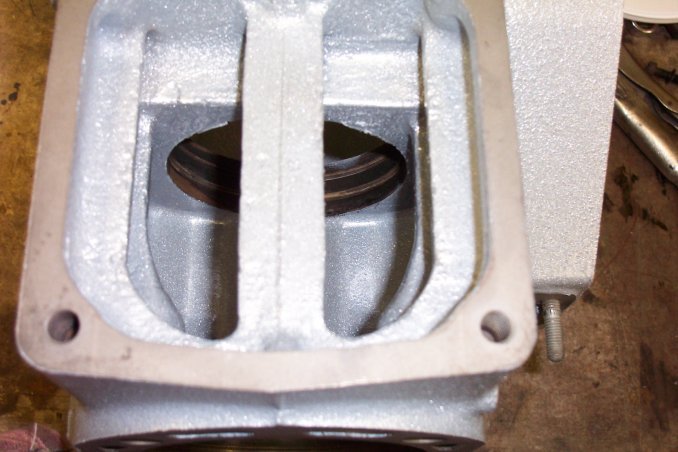

If memory serves the 2 O ring slots are in the block(hopefully my pic is attached) I used olive oil as a lubricate to slide the new liner in. Some say olive oil does not harm the rubber O rings as some petroleum products do.(old wives tale?????) The old liner was a bit sticky getting out because of the raw water crud in the cooling chamber was encrusted on the liner.



[JoeD]

Liner

O Rings are in the block. A tip on removing cylinder, Is pack with ice with before pushing out. We used dry ice. Let set for half hour. Will come out very easy. If you use dry ice please be very careful you can remove your skin very easy. Good luck.



[Bud22569]

Thank you both. This is exactly the type of information I was looking for. Did you have a puller built for the job or were you able to find a puller on the market that did the job?



[Rob19574]

tech support at Mack Boring - Yanmar

Also you should try the tech-support folks at Mack Boring - they rep all Yanmar marine engines, supplies and tech support. They have a really knowledgeable staff there that know these engines inside and out and will be extremely helpful. I think the number is 866.526.9717 - ask for tech support for Yanmar Marine.

Good luck - Rob



[Hermit Scott]

Liner YSM
