What's this hardware?

Status
Not open for further replies.

Faris

.
Apr 20, 2011
232
Catalina 27 San Juan Islands

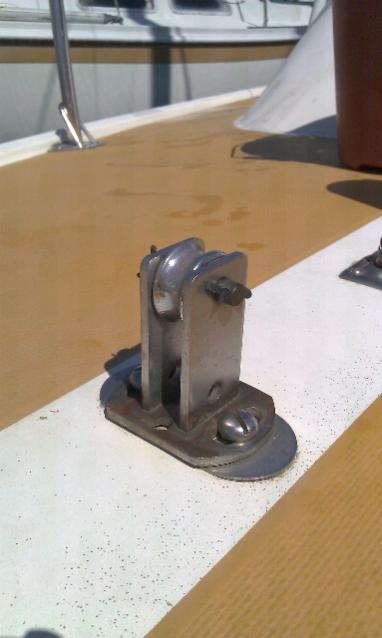

This sits right in the middle of the fore deck of my recently-acquired Catalina 27. I assumed it was a roller for the anchor, but it is not in line with the roller on the bow. Its main purpose seems to be to stub my toe.

Odd that it can swivel about 45 degrees if you just loosen a couple of bolts.

Any ideas?




Mar 8, 2012
446
Catalina 22 trailer sailor
Could it possibly be a pulley installed to raise the mast single handedly? is it directly in line with the mast? It's it big enough for a halyard? Or maybe a cable hooked to the jib halyard?


Faris

.
Apr 20, 2011
232
Catalina 27 San Juan Islands
Maybe I should mention that there is a single stand-up block just aft of this (almost visible in the photo), which I have decided is the spinnaker downhaul. It's definitely too far aft (midway between the forestay and mast) to be a jib downhaul. It has a rolling furler anyway.

The boat isn't really designed to drop the mast in any simple way - certainly not single-handed.

I'm not totally certain it is NOT for a halyard, but here's what I'm thinking:

The only reason a block is ever placed forward of the mast is to somehow facilitate a line going from above or forward of the block to a point below or aft of the block. So, it serves to reason that the thing it goes to is intended to be either pretty much directly above the block or pretty much at the tip of the bow.

With the rolling furler and all associated rigging accounted for, it leads me to think either about the anchor or the spinnaker pole. It may be that someone installed it as a spinnaker downhaul, and the next owner just installed another block just aft and never bothered to remove the old one (possibly not knowing what it was for).

The thing that bugs me about this theory is that this is a seriously beefy piece of hardware. Seems like it was made for some really rough loads. It "looks" like an anchor thing. It's just that the anchor roller on the bow is angled so that it is about 20-30 degrees off from being inline with this block which is exactly on the center line.

The mystery continues ...


Faris

.
Apr 20, 2011
232
Catalina 27 San Juan Islands
He didn't know. He didn't seem to know much about the boat at all.
