Rudder connection to outboard

Status
Not open for further replies.
abk

abk

.
Aug 9, 2007
203
Hunter H 26 Somers Point, NJ
I would like to connect the rudder assembly to a Merc 9.9 kicker. I have searched the archives but they are without links and photos for the most prt.

Would you have photos or a diagram to make this assembly?

Thanks in advance for your reply.

I have wheel steering if that makes a difference.

finding41

finding41

.
Nov 23, 2011
2,023
MacGregor 26D London Ontario Canada
How about some pictures of that wheel steering on a Mac 25? Ware do you stand? How close is the boom?

abk

abk

.
Aug 9, 2007
203
Hunter H 26 Somers Point, NJ
Mac 25 wheek rudder connection

finding41 said:
How about some pictures of that wheel steering on a Mac 25? Ware do you stand? How close is the boom?
Click to expand

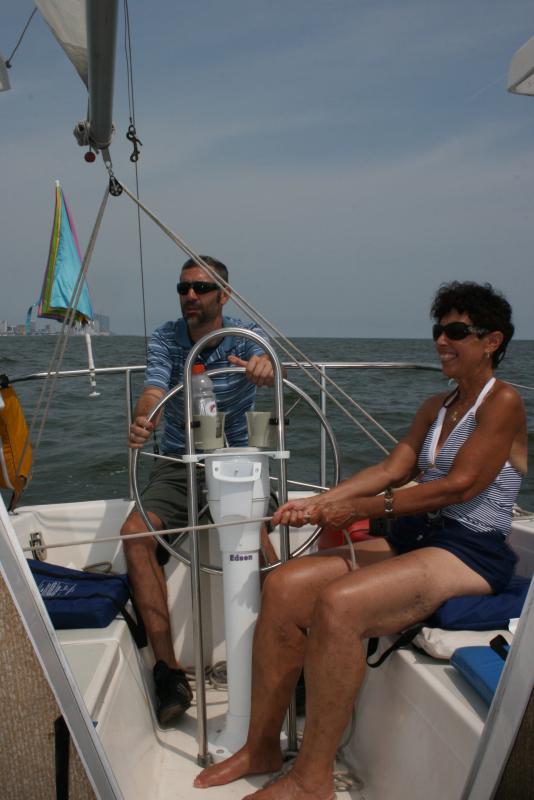

Here is a Photo of the wheel on a Mac 25...
It was the previous owners... I heard it was a factory option in 1984...
It clears the boom but the boom sheet control lines kind of cross in front of you...
Lost a pair of glasses from it once...


Attachments

Last edited:
Doc_holiday

Doc_holiday

.
Nov 19, 2011
1,489
MacGregor 26S Hampton, VA
If I recall, Sum did this but tied the tiller to the motor which is easier to disconnect without leaning over the transom

D

davenlynn

.
May 22, 2011
159
MacGregor 25 San Diego
With the quick release snap shackles it's a "snap" : poor pun, but the system works.

caguy

caguy

.
Sep 22, 2006
4,004
Catalina, Luger C-27, Adventure 30 Marina del Rey
This is probably one of the simplest solutions I have seen. I saw it a couple of weeks ago but I can't remember where. This is how I remember it.
The bungee is stretched and pull the motor to port when the rudder moves to port. The cable pulls the motor to center and starboard when the rudder moves to starboard. They can be hooked up with quick disconnects for a fast setup and tear down.


Attachments

D

davenlynn

.
May 22, 2011
159
MacGregor 25 San Diego
timebandit said:
I just mocked this system up on my 25 but could not get it to work the angles were all wrong, do you have this motor mount?
Click to expand
Yes, I have the same mount and it works beautifully. I lowered the motor to operating position, and using a level marked a spot from the eye bolt on the motor to the equal spot on the trailing edge of the rudder. There I inserted a screw eye and connected the two via the pvc tube with snap shackles.

Caguy: Using that method, isn't the motor always under tension to pull to port?

Dave
S/V Trial and Error
San Diego

caguy

caguy

.
Sep 22, 2006
4,004
Catalina, Luger C-27, Adventure 30 Marina del Rey
davenlynn said:
Caguy: Using that method, isn't the motor always under tension to pull to port?

Dave
S/V Trial and Error
San Diego
Click to expand
Yes, the bungee pulls to port but the cable prevents it from going there so it stays put until the rudder moves to port.
If you are concerned about the tiller and rudder being pulled to port that maybe a concern, but I believe the bungee and cables are disconnected while under sail.

R

Rudder Nonsense

.
Oct 10, 2011
30
Venture 222 Nanaimo
caguy said:
Yes, the bungee pulls to port but the cable prevents it from going there so it stays put until the rudder moves to port.
If you are concerned about the tiller and rudder being pulled to port that maybe a concern, but I believe the bungee and cables are disconnected while under sail.
Click to expand
Another idea is to add a second bungie from the rudder to the starboard side of the boat. This will eliminate the pull to port and also give you a "snap to center" on the rudder when you let go or ease steering pressure.

vizwhiz

vizwhiz

.
Aug 7, 2011
496
MacGregor 26S Lakeland, FL
Great idea on the bungee and tiller connect...I wanted to do this same thing to my boat, but I have a motor that won't swing to port because the handle gets in the way of the motor well, even when the handle is lifted up. So I wanted to attach something that would allow the motor to at least turn to starboard with the tiller so I don't get the rudder in the prop when I turn that way. Something similar to that setup with the bungee and cable in the front of the motor would probably work...

caguy

caguy

.
Sep 22, 2006
4,004
Catalina, Luger C-27, Adventure 30 Marina del Rey
Rudder Nonsense said:
Another idea is to add a second bungie from the rudder to the starboard side of the boat. This will eliminate the pull to port and also give you a "snap to center" on the rudder when you let go or ease steering pressure.
Click to expand
If you did that the bungee would not pull the motor to port when the rudder moves that way. I think other than a tiller tamer you would have to live with a little "weather helm" while motoring.

abk

abk

.
Aug 9, 2007
203
Hunter H 26 Somers Point, NJ
25 edson wheel set up.

Bob McL said:
Bruce (ABK), how does that wheel setup connect to the rudder?
Click to expand
It's connected by a series of cables. It's attached through the transom and is sealed with boot. Frankly, it gets in the way. I think I would be better off with the tiller. Although I really don't know because he only Tiller I used was in 1974 on the sunfish. It appears to be a major install. I don't think it's something that I would even attempt to do.

R

RonRock

.
Apr 29, 2012
233
Macgregor Venture 25 Council Bluffs, IA
abk said:
It's connected by a series of cables. It's attached through the transom and is sealed with boot. Frankly, it gets in the way. I think I would be better off with the tiller. Although I really don't know because he only Tiller I used was in 1974 on the sunfish. It appears to be a major install. I don't think it's something that I would even attempt to do.
Click to expand

It looks pretty cool. I'll trade you a tiller for it. :D
