older Raymarine L760 Instrument

[RitSim]

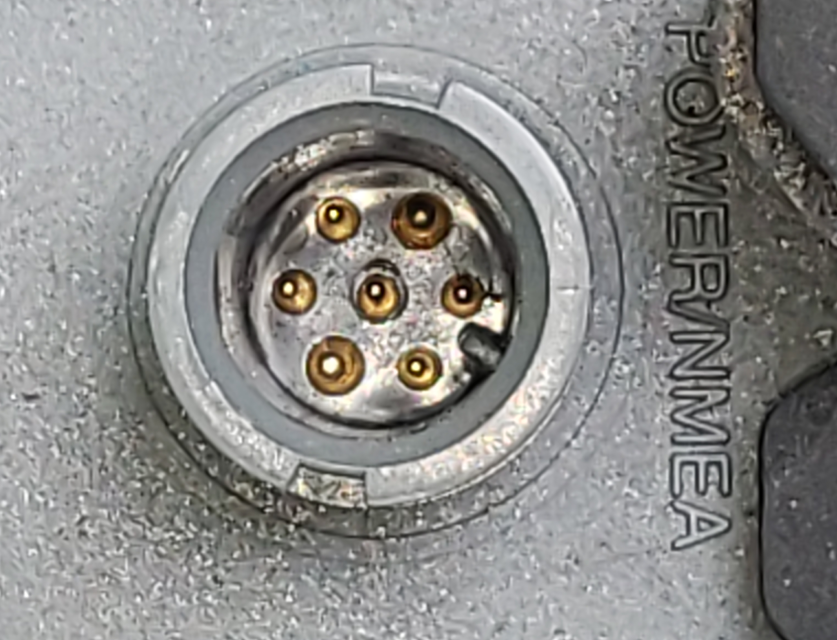

Came across this in deep storage. Don't have the power cord but would like to power up. Can someone tell me which pin is + and -? I believe the power pins are top right and lower left (3 o'clock and 9 o'clock from the internal tab)



[jssailem]

Can you see the wires on the inside of the plug? They more likely can give you a clue.



[RitSim]

don't have the plug



[jssailem]

You have the female end... Are there wires behind the pins?
Wires connected to pins often give a clue as to purpose. Red & Black are your desired ones.



[RitSim]

I could figure it out if I had the plug. I've looked on the Raymarine site and it appears the device is too old so the info is not there.



[Joe]

Looks like you need to open the case to I.D. the wires. bummer.



[jviss]

Here's the manual:

hsb2 Fishfinders Owner's Handbook
