Hunter 22 tiller handle attachment.

[GeorgiaBII]

Can somebody please post a picture of how a h22 tiller handle attaches to the rudder? I bought the boat but the handle is missing and whatever hardware is used to attach it to the rudder. thankfully the rudder was inside the boat.

Thank you.

James



[GeorgiaBII]

anybody?



[SeaTR]

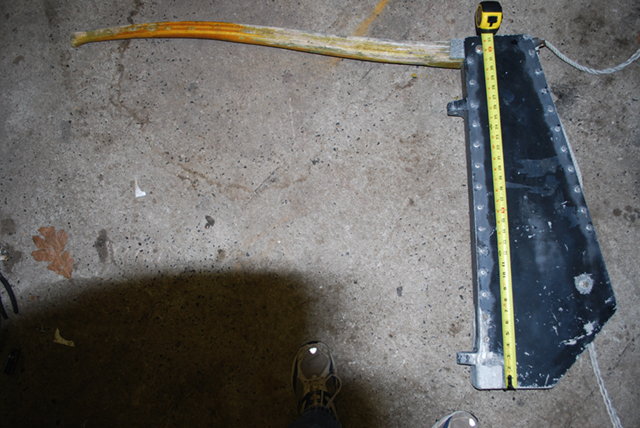

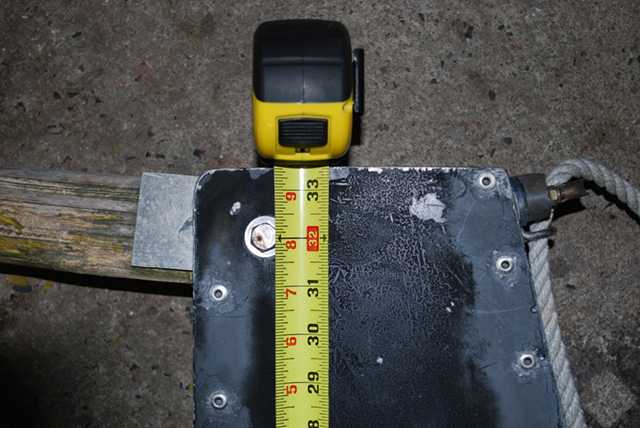

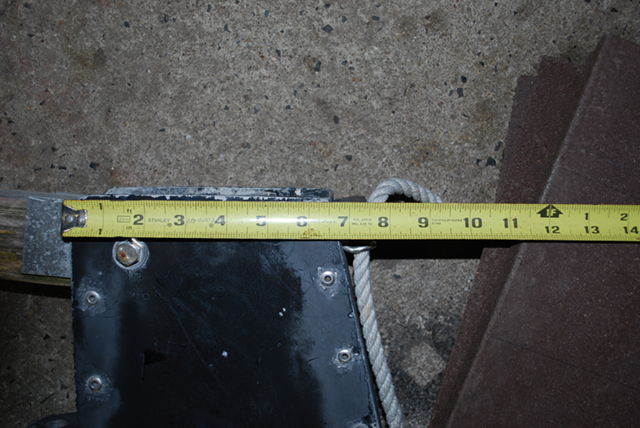

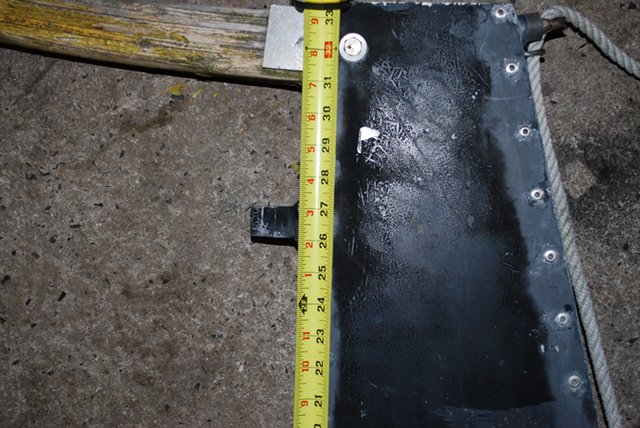

H22 tiller

Sure..I've got something for you. Hope it helps.



[GeorgiaBII]

Thank you SeaTR!

my rudder doesn't look anything like that. Is it possibly because mine is the fin keel version? Looks like your rudder can kick up.

What I have is just a solid rudder that hangs off the transom straight down.



[JamesO256]

My 22 just has 1 bolt. I have seen the metal Chanel before it makes it a bit stronger. My tiller handle was rotten and broken off when I got my boat.



[inarathree]

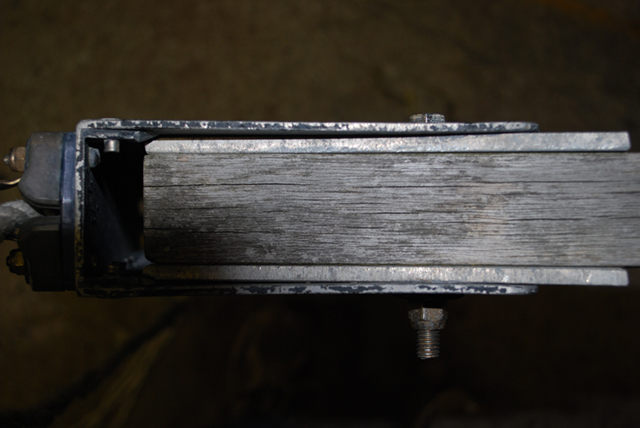

Charlie, it looks like you have had some repairs done on your rudder housing. I also noticed you have two metal plates around your tiller. Or is it 'u' shaped? This would solve one of my steering problems.



[SeaTR]

re: H22 tiller attachment

inarathree,
Those are actually pictures of someone else's H22 rudder and tiller...
You can see the rest of the pictures on the following thread:
Need Rudder and swing keel dimensions(

1 2 3 ... Last Page)

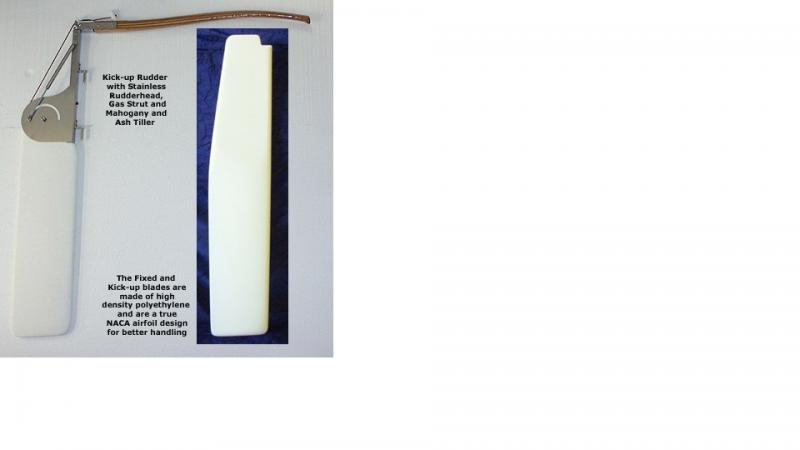

I purchased a number of years back and now use the Idasailor rudder (see below), as I bought my H22 without a rudder & tiller.
