H340 main sail batten lengths

Oct 11, 2022
5
Hunter 340 Barcombs Marina NY
I lost the 3rd batten from the top.... ugh
Anyone have the lengths for the 4 battens?

Thanks in advance :)


Jan 22, 2008
93
Hunter 30_88-94 Ipswich, Ma MA
Doyle Sail should be able to answer your question. If you go to the Sail Loft listed on the Hunter Owners website, their telephone # is 877-932-7245. They have replacement sails listed for every Hunter model. Not sure if they sell battens, but they’ll know the length.
They’re open M-F 10-4, Eastern Time.

Sep 26, 2008
717
Hunter 340 0 Wickford, RI
I apologize for not seeing your posting earlier. As luck has it, yours anyways, my Main Sail is down and I have the battens in hand.
Batten No. 1 is ….63 7/8”
Batten No. 2 is …106”
Batten No. 3 is ….50 1/2”
Batten No. 4 is ….54 1/2”

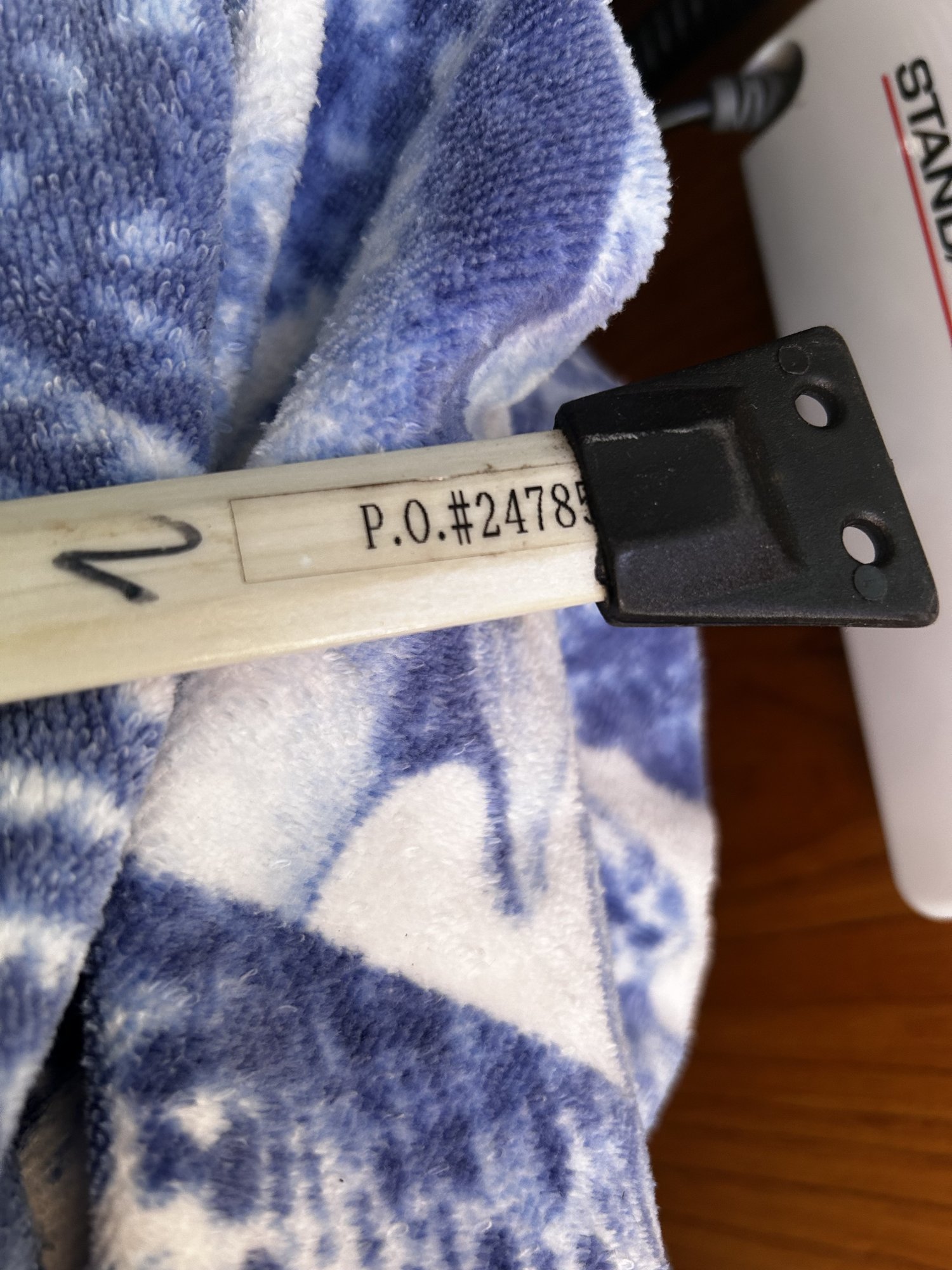

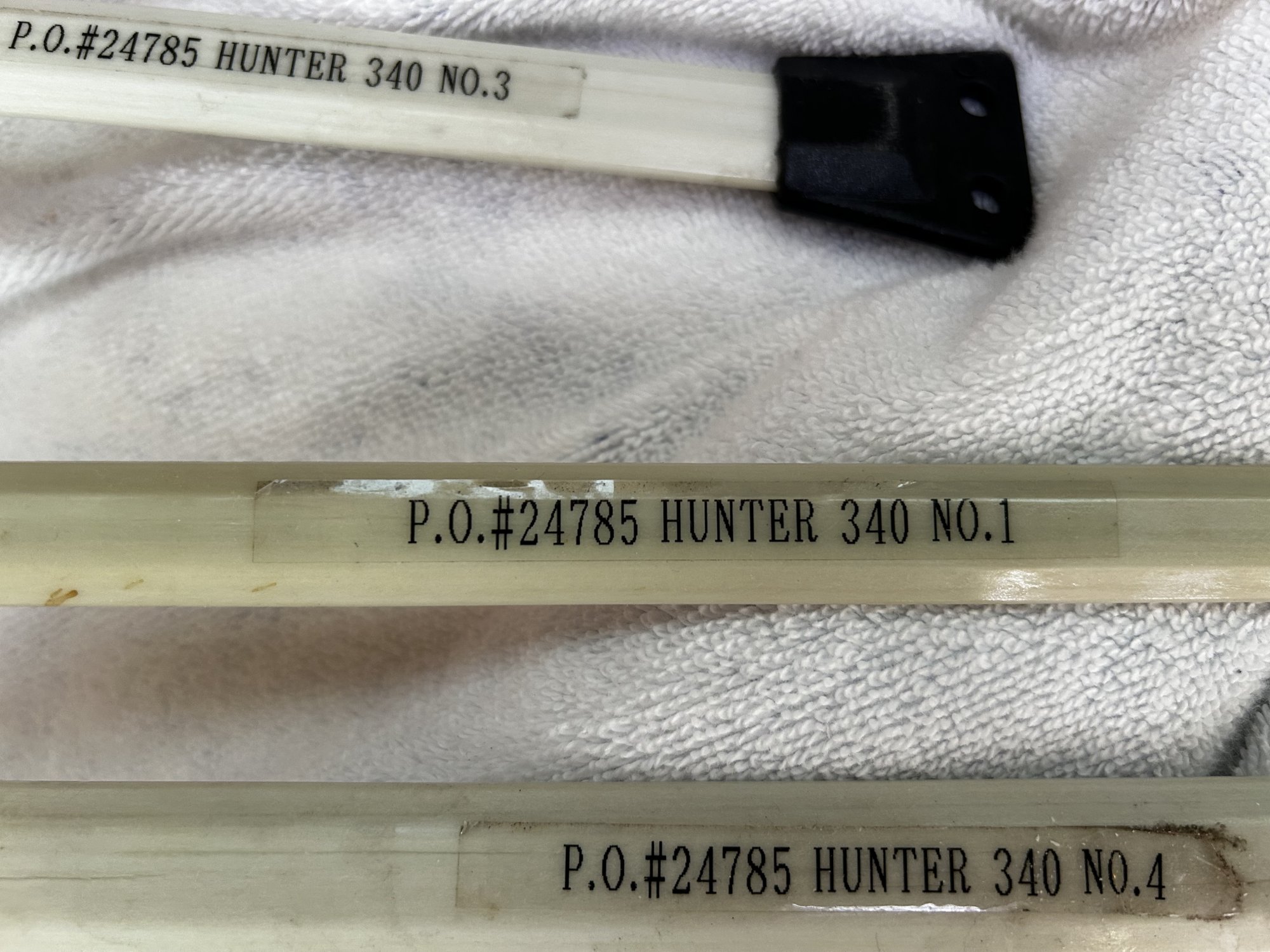

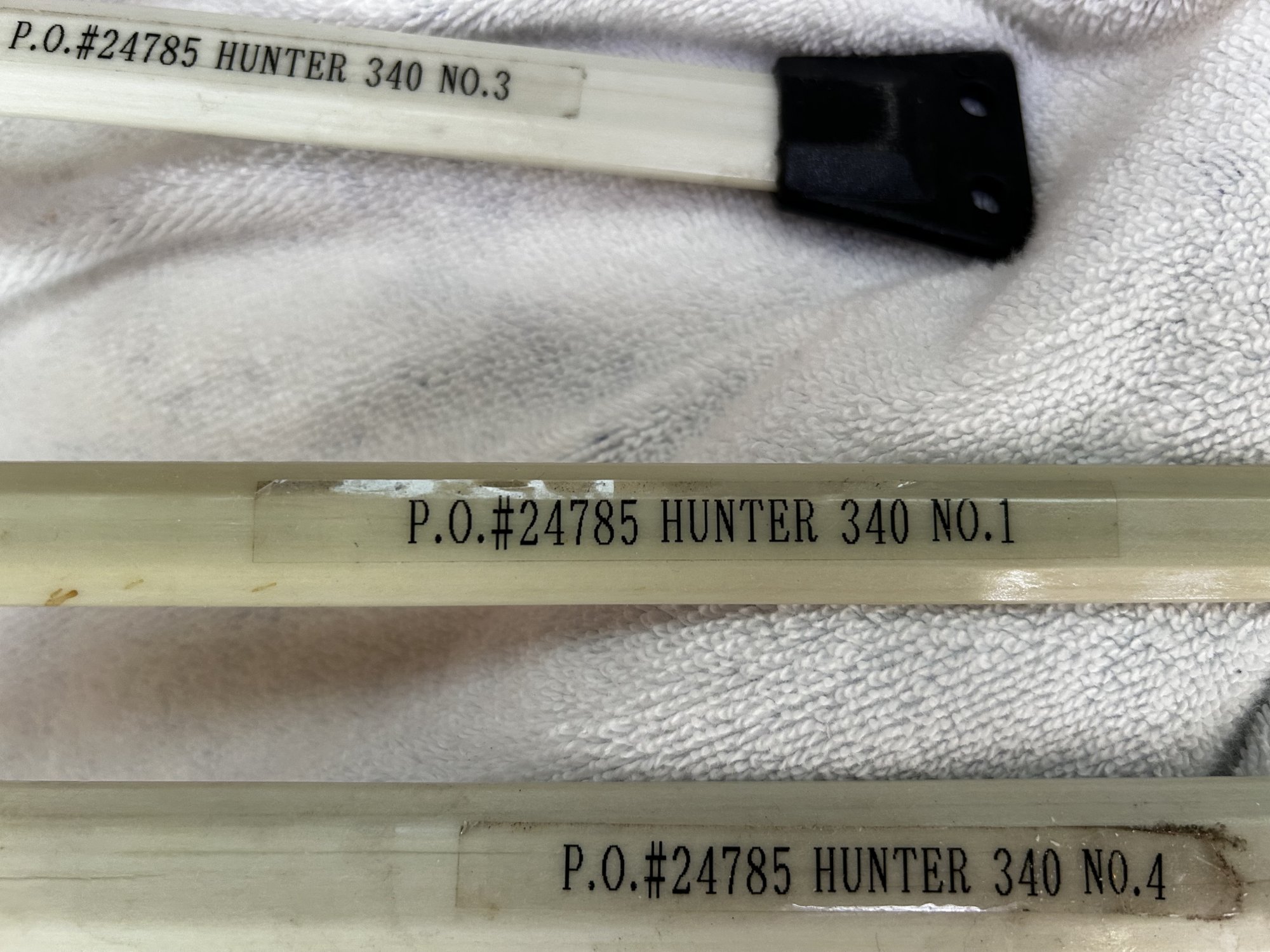

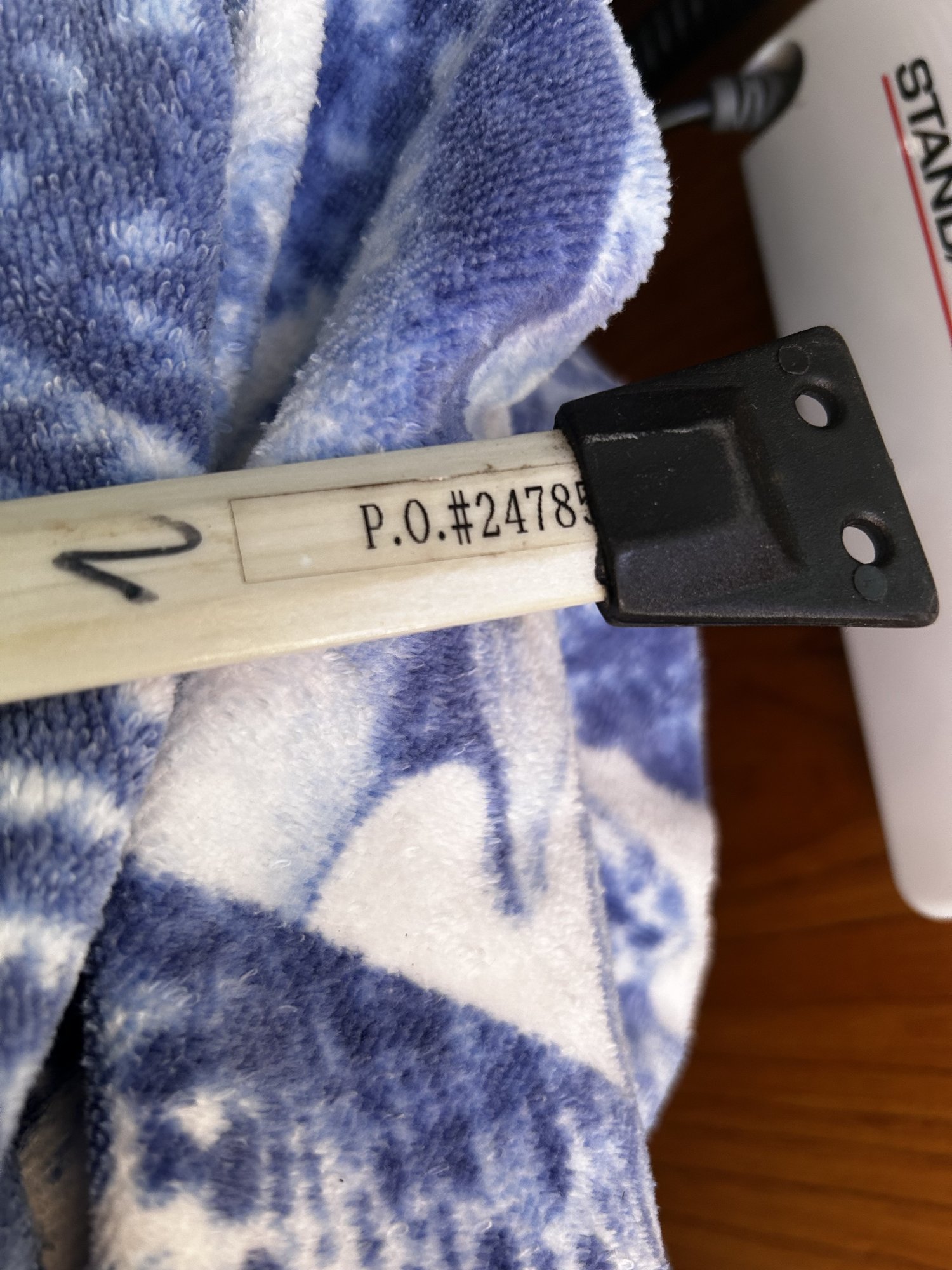

These measurements are from the ends of each end cap. And the Part number as well. Hope this helps you out.

IMG_1839.jpeg IMG_1847.jpeg

Jan 19, 2010
1,302
Catalina 34 Casco Bay
If that main is a replacement sail, then the OEM numbers as well as other similar boats might be off. Sailmakers take liberties... so the batten lengths are always suspect..
