Does anyone have a link? Ours is a 95 model if that matters... Do all the Yanmar GM30's use the same harness? I'm looking at converting to lithium, and I am specifically looking in to what is required to separate the alternator from the house bank....
Engine wiring diagram for Hunter 35.5
- Thread starter Rich 35.5
- Start date
Perhaps there is something useful in the Hunter 35.5 Downloads section:
Most of the wiring harness will be unaffected by the change in battery chemistry. The alternator output is typically not part of the harness as it should use a larger gauge cable that the wires in the harness. A pretty standard OEM alternator installation has the Alternator output (B+) going to starter motor power lug. From there it goes to the 1-2-All switch to ensure the battery that started the motor gets recharged quickly. Prior owners may have changed this. You will need to do some wire tracing.
Changing to LiFePO4 presents several important concerns, it is not quite as simple as simply dropping in new batteries. How you intend to use your boat will guide you in designing the system. A good place to start is this article from MarineHowTo.com.
Changing to LiFePO4 presents several important concerns, it is not quite as simple as simply dropping in new batteries. How you intend to use your boat will guide you in designing the system. A good place to start is this article from MarineHowTo.com.
Easy LiFePo4 Conversion - Marine How To
Easy LiFePo4 Conversion Before reading this article please read the 101 article on Drop-In's: Drop-In Batteries Be An Educated Consumer Hardly a day goes by where we don't see or hear
marinehowto.com
BINGO!!! That is the part I didn't understand, I thought I was looking for a wire from the alt. to the battery switch. That makes this job much less intimidating...The alternator output is typically not part of the harness as it should use a larger gauge cable that the wires in the harness. A pretty standard OEM alternator installation has the Alternator output (B+) going to starter motor power lug.
Easy LiFePo4 Conversion - Marine How To
Easy LiFePo4 Conversion Before reading this article please read the 101 article on Drop-In's: Drop-In Batteries Be An Educated Consumer Hardly a day goes by where we don't see or hearmarinehowto.com

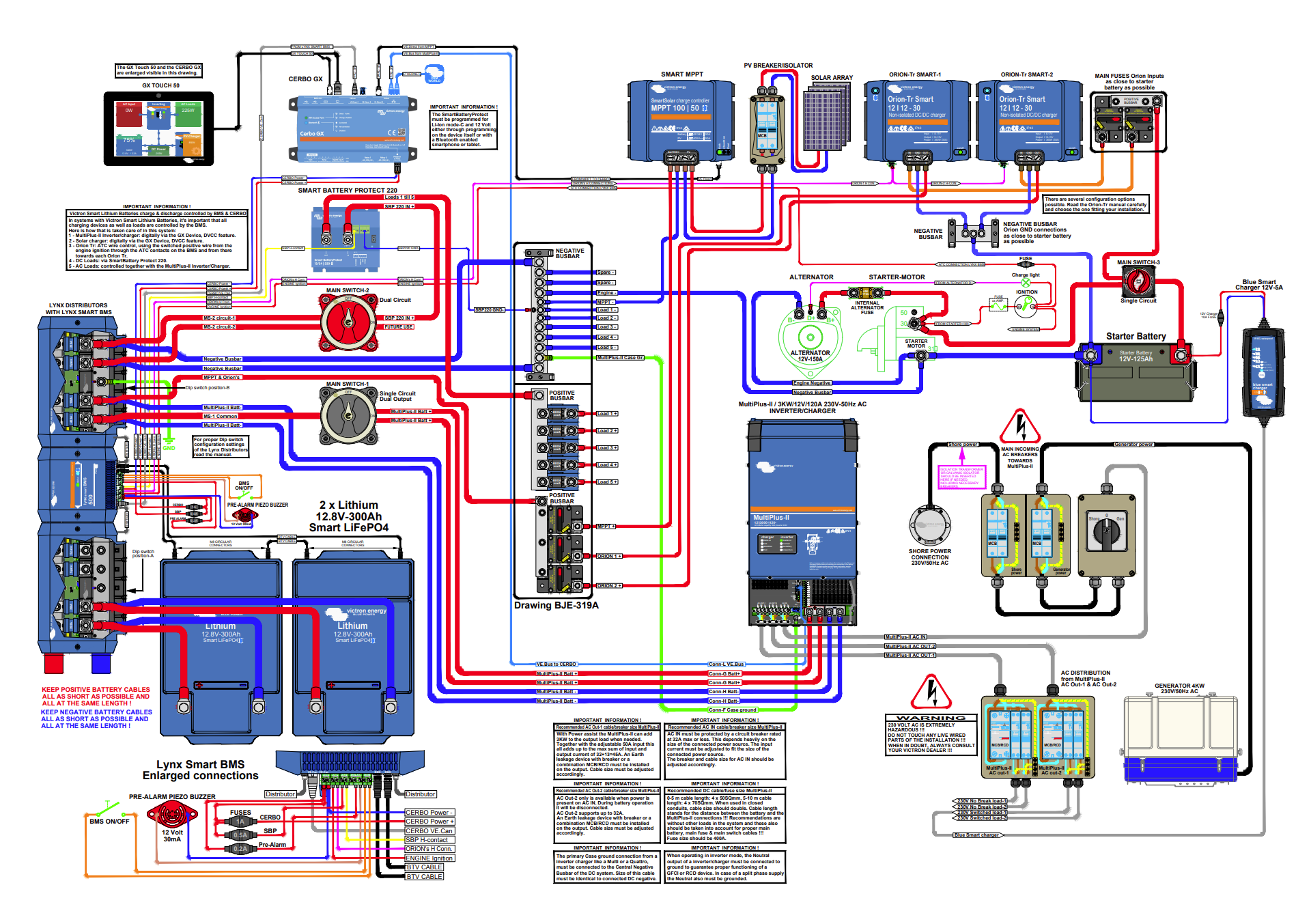

Right, here's the how it works for dummies version:
OEM 1-2-B Switch Wiring History Alternator/Batteries & "The Basic" 1-2-B Switch BEST Wiring Diagrams
1-2-B Considerations (New 2020 - Rod finally got around to diagramming what I had done in the above link in 2009
)1/2/BOTH Switch Considerations
jssailem
SBO Weather and Forecasting Forum Jim & John
- Oct 22, 2014
- 21,738
Rich
Converting your battery system to Lithium is a task with many elements. Carefully explore the details. It is a system, not just a "Buy the batteries and drop them in" project.
MainSail at Drop-In LiFePo4- Be an Educated Consumer has some great info on the subject.
Converting your battery system to Lithium is a task with many elements. Carefully explore the details. It is a system, not just a "Buy the batteries and drop them in" project.
MainSail at Drop-In LiFePo4- Be an Educated Consumer has some great info on the subject.
