Anyone on the forum have a deck layout drawing with measurements? I'm looking to get a quote for fear teak upper decking. Basically looking to cover all of the diamond surface with nuteai/plasteak or equivilent. Just wondering if someone has a template, drawing, measurements so I can ballpark the coverage square footage (or better yet provide an actual template!).

The alternative is paper templating the entire surface just to get a ballpark quote.

Thanks in advance



[sail sfbay]

Simplest and lowest cost is to get a hold of your local SeaDek suppler, Launch Marine Products in Hagersville, Ontario . They will come to your boat, scan the areas you want covered, make computer aid design (CAD) drawing , fabricate each section and install it. Nice thing about SeaDek is it does not require sanding and gluing the material to the deck, is completely reversible and you will have a template to purchase replacement sections. I had it installed in my cockpit and stern.

Launch Marine Concepts | Seadek | Marine Flooring | Ontario | Canada

Launch Marine Concepts supplys custom Seadek Marine Products in Ontario, Canada. Your boat deserves Seadek,.

www.launchmarineconcepts.com

SeaDek | Custom Marine Flooring + EVA Foam for Any Adventure

Experience the SeaDek difference. Shop our retail products or craft your custom project for unmatched comfort and durability on your boat, RV, and beyond.

www.seadek.com



[rgranger]

The alternative is paper templating the entire surface just to get a ballpark quote.

Thanks in advance

When I need to make a template, I usually get some of that inexpensive plastic sheeting you buy in the paint section at Lowes... tape it in place and trace with a sharpie.



[sail sfbay]

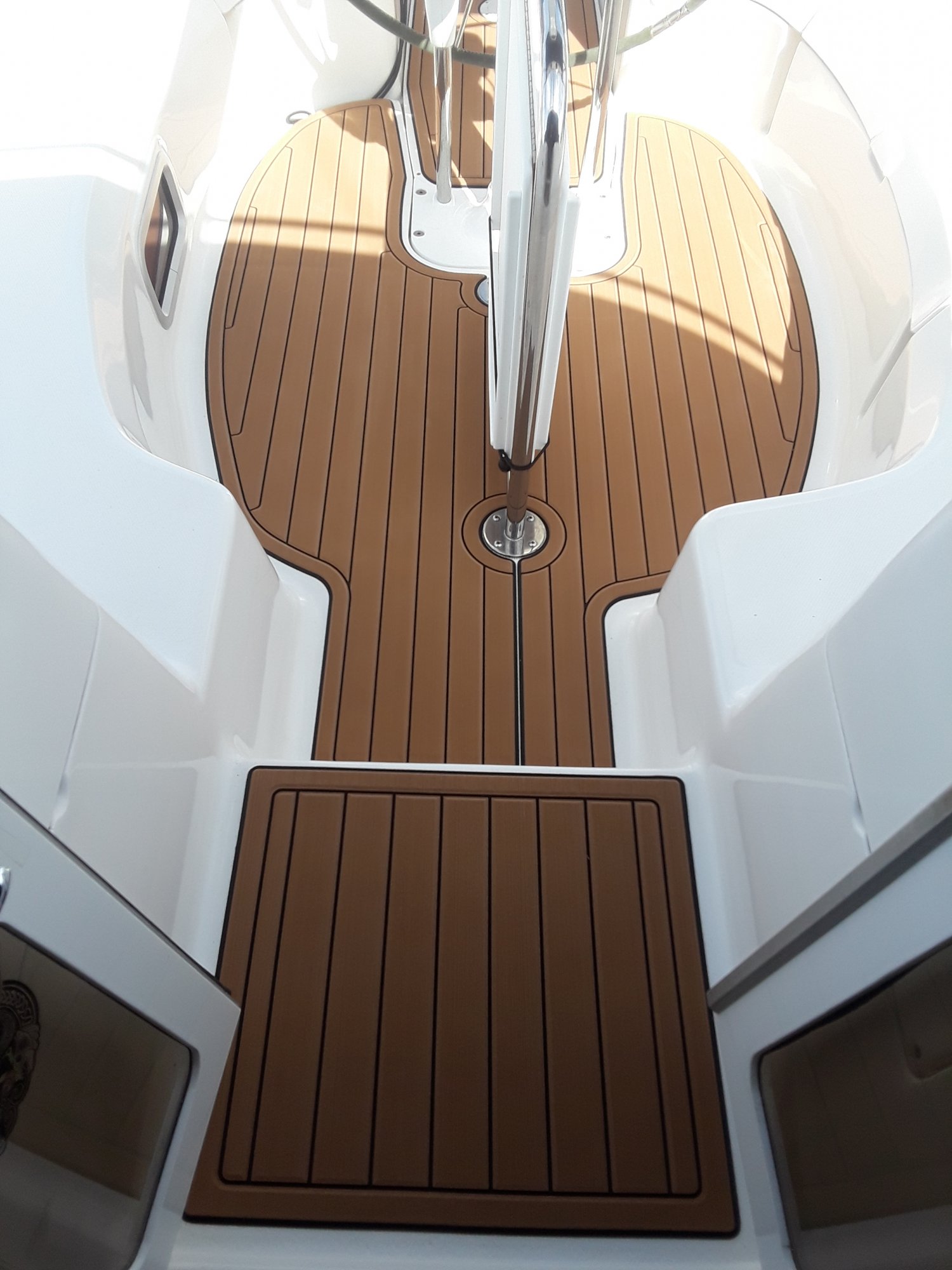

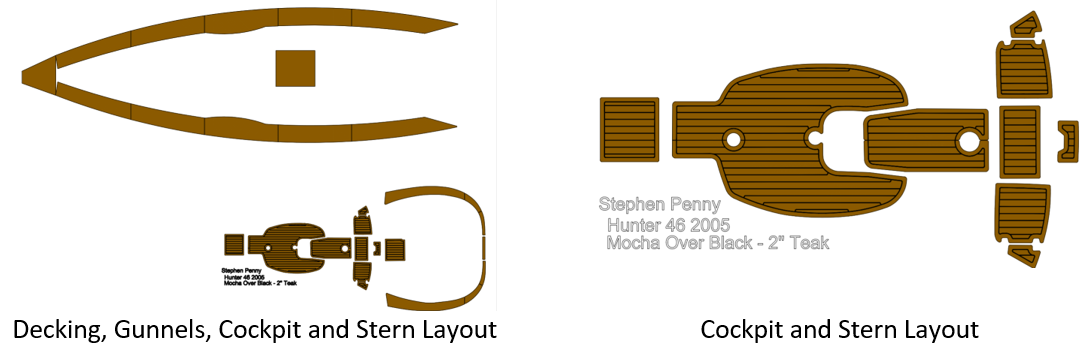

Below is the product of the SeaDek scan, which they will price out fabrication and installation (peel and stick) at a fraction of the cost of Plasteak. I elected to do the cockpit, a portion of the gunnels (to make it easier for the dog to climb in/out of the cockpit), aft lazarettes, swim platform and captains seat underside.
