Catalina 387 Deck-Stepped Mast Leak

Jul 30, 2024
4
Catalina 387 Oxford
Hi, I have recently purchased a Catalina 387 with in-mast furling and when it rains the mast leaks quite a bit of water (as much as 2-3 quarts) into the bilge. The weep hole at the base of the mast plate is tiny, has anyone expanded it? Or any other suggestions?

Jul 30, 2024
4
Catalina 387 Oxford
The water is definitely coming down along the wires from the deck-stepped mast into the bilge. I am new to the boat and have not had the mast down yet, but based on what I have read it seem the water may fill up in the mast and flow into the wires, or since I have in-mast furling the amount of water that can come in during a storm is a lot. I was able to reproduce the problem with a water hose spraying into the in-mast furler.

Jan 15, 2017
2
Catalina 387 150 Brisbane Ca (San Fransico Bay)
I have had the mast down on my Catalina 387 (Sail #150) and it seems like a really well-designed, watertight system. I have owned the boat for eight plus years and have not had any mast step related leaks, or any other leaks, for what it is worth. That also sound like a lot of water to come into the boat. I might contact Catalina customer in Florida and see if they have had any other complaints and/or have a fix. Otherwise, it sounds like it will need to be resealed. Good Luck! Blair

Last edited:

jssailem

SBO Weather and Forecasting Forum Jim & John
Oct 22, 2014
22,076
CAL 35 Cruiser #21 moored EVERETT WA

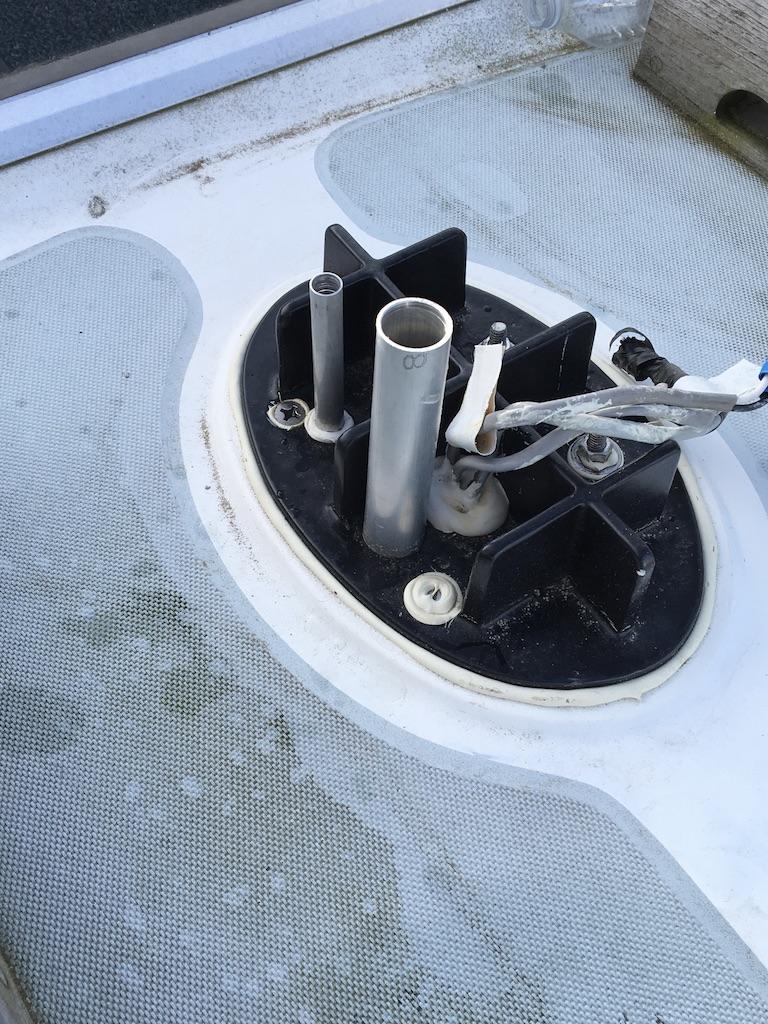

I have a deck-stepped mast on my Cal35. When I removed the mast for refitting, I also removed the mast step. I had it cleaned and repainted (powder coated). With my wires entering the boat through the mast step, we designed a way to minimize the potential for water to leak. There are weep holes at the bottom of the mast to let any water flow out of the mast onto the deck. The mast step is bedded in 4000 caulk. The conduit that runs through the mast step and deck is bedded in 4000 caulk. We attached hoses to enhance the drip loop before the wires entered the conduit.

The grey wiring is the old wiring. We filled the space around the wires with caulk and cut the old wires off above the mast step.

Here are the images.



Jul 30, 2024
4
Catalina 387 Oxford
Thanks @jssailem and @Bullseye!!! I guess I will have to take the mast down this winter and take a take a look at how the wires are managed and check with Catalina to make sure its done correctly. I was thinking about drilling some weep holes at the bottom of the mast since the one in the Mast boot is tiny and gets easily clogged.

Jan 15, 2017
2
Catalina 387 150 Brisbane Ca (San Fransico Bay)
I would like to see a photo as I have no boot on my mast from the factory?


john2

.
Nov 26, 2022
61
Catalina 310 58 Leimuiden
our mast was without weep hole. Over time the mast sealed with dirt and started leaking in the bilge.
drilled a 1/4 inch hole at the backside of the mast.
problem solved:waycool:

  • Helpful
Likes: jssailem
