35.5 Nova Kool ice box upgrade help

Jan 19, 2019
10
Hunter 356 Penetanguishene
I just purchased this sailboat and would like to add the Nova Kool refrigeration. Has anyone else done this mod? I think I would like to have the right side as the freezer and the rest as a fridge. Any help or suggestions would be greatly appreciated.

Dec 28, 2015
1,912
Laser, Hunter H30 Cherubini Tacoma
I converted my ice box in January. I was lucky that the PO framed in the original ice box and filled the void with expanding foam. All I had to do was add rigid foam to the top (bottom of the counter top). I also added a gasket system. The lid gasket and plugging the drain was critical in keeping moisture out and the plates from frosting over.

Make sure you purchase a system appropriate for the cubic feet of the box. I don't have a real need for a "freezer" I can put frozen items next to the plate and it will keep kind of frozen for 4-5 days. I put drink ice in a zip lock bag and into a insulated lunch box bag and leave it in the fridge and it stays frozen just fine.

Jan 19, 2019
10
Hunter 356 Penetanguishene
Awesome. Thanks. Any pics that you can share on where you put the plate(s)?

Dec 28, 2015
1,912
Laser, Hunter H30 Cherubini Tacoma

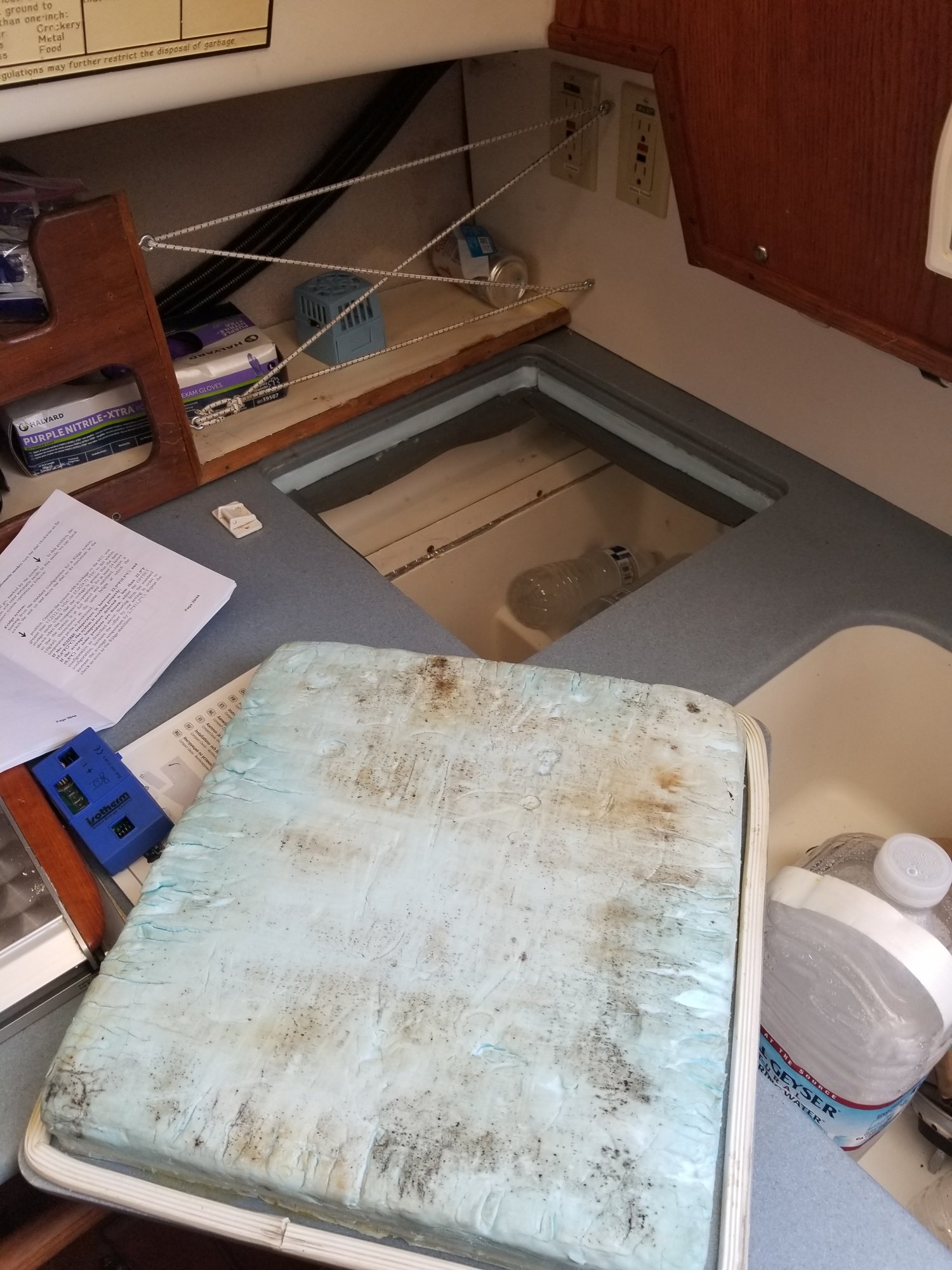

Since I took these I have replaced the thermostat and removed the blue box module because it was a huge piece of crap. Sorry for the weird pict format. I'm doing this on my phone.



Aug 27, 2012
98
Hunter 1990 Hunter 35.5 Toronto
I have the 1990 35.5 I replaced my unit with a nova cool. Make sure you put the foam on the copper tube that runs from the machine to the refrigerator or you may get a lot of frost buildup on that copper
They are great machines
I had an electrician hook mine up. I put the freezer box on the left wall of the fridge

Jan 19, 2019
10
Hunter 356 Penetanguishene
I have the 1990 35.5 I replaced my unit with a nova cool. Make sure you put the foam on the copper tube that runs from the machine to the refrigerator or you may get a lot of frost buildup on that copper
They are great machines
I had an electrician hook mine up. I put the freezer box on the left wall of the fridge
Would love to see a pic of your set up. I just bought the Nova Kool with freezer box and was just going to install it on the shelf.
Thanks
