I have a 1983 Hunter that I have just purchased over winter and have done some research to find that there are things to look at.

The swing keel, there is an issue with the pivot bolt! Yes? INFO

The Transom and chain plate, issue with rot?

Is there foam under the front v-berth and in the back somewhere to check?

Basically you guys that know everything, or have heard of details of broken and issues with these boat getting corners cut when mfg'd in the early 80's

Give me something so I can make a check list

H

HiZ

.
Nov 8, 2012
16
Hunter '84 22, '74 26, '90 28, ~ Oshkosh
Re: 1983 Hunter Check list > generational issues-what to che

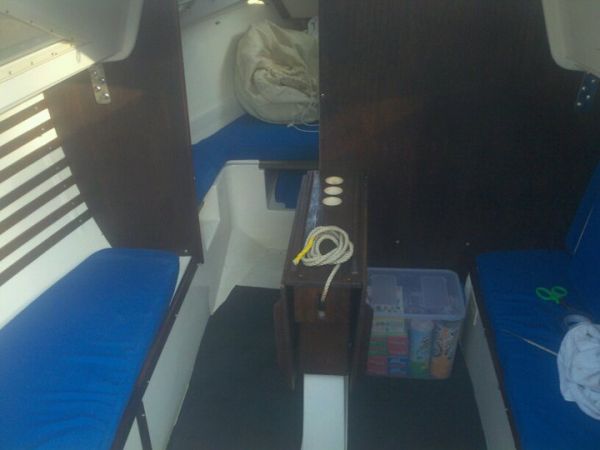

What are the 3 round holders that are on the swing keel housing/dinette table

::stolen pic::


H

HiZ

.
Nov 8, 2012
16
Hunter '84 22, '74 26, '90 28, ~ Oshkosh
Re: 1983 Hunter Check list > generational issues-what to che

There isn't a single person that has input on this boat or what can be done for it?
really
Even what the "cup holder" type things are really for

Ed H

Ed H

.
Sep 15, 2010
244
Hunter 33_77-83 Regent Point Marina, Virginia
Re: 1983 Hunter Check list > generational issues-what to che

You may get more responses if you post on the Hunter "Small Boat" section. Ed H

SeaTR

SeaTR

.
Jan 24, 2009
408
Hunter 22 Groton
Ed H is right...

HiZ,

Ed H is right. You may get more responses (eyes on your posting) if you post on the Hunter "Small Boat" section. It was happenstance for me to see your querry.

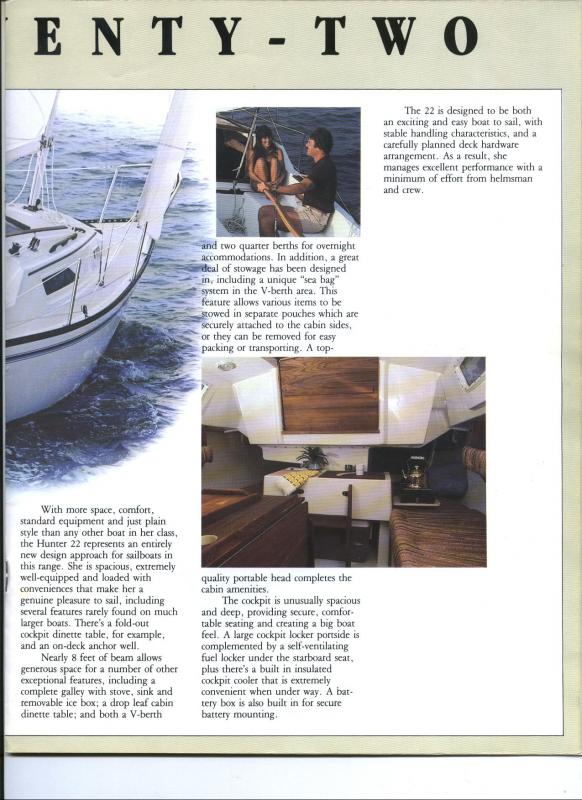

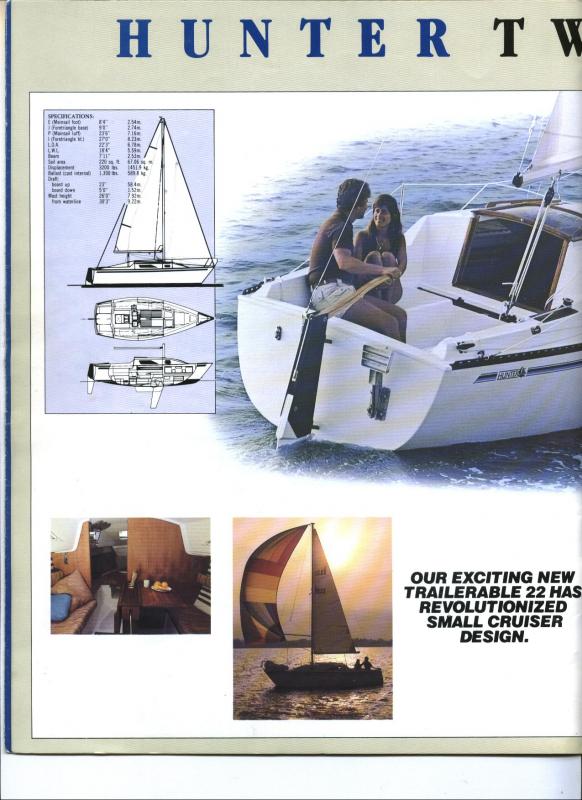

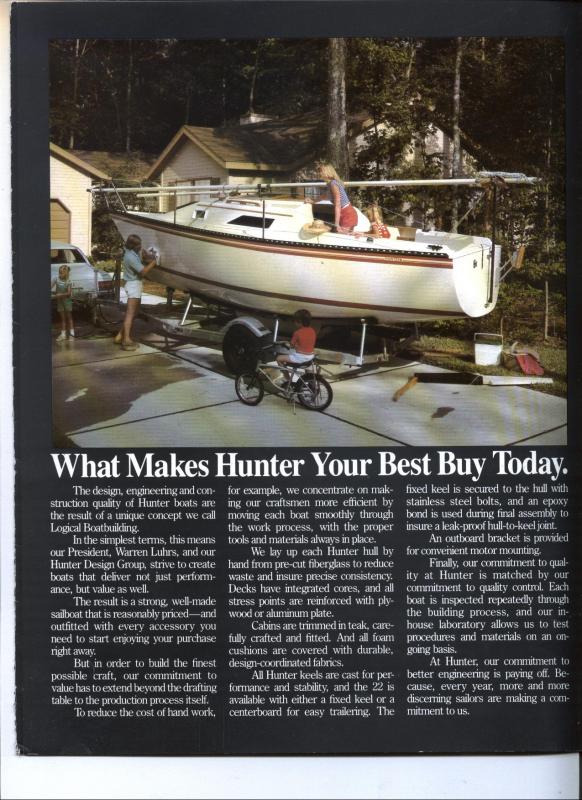

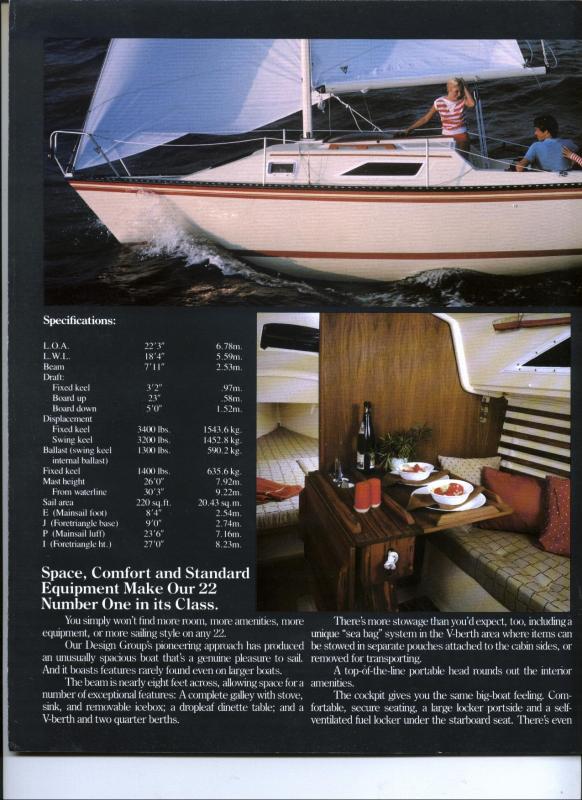

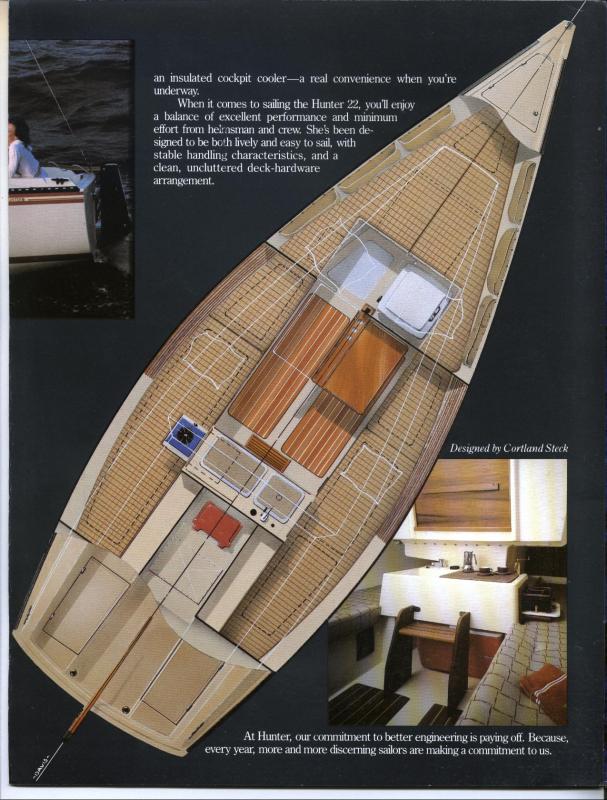

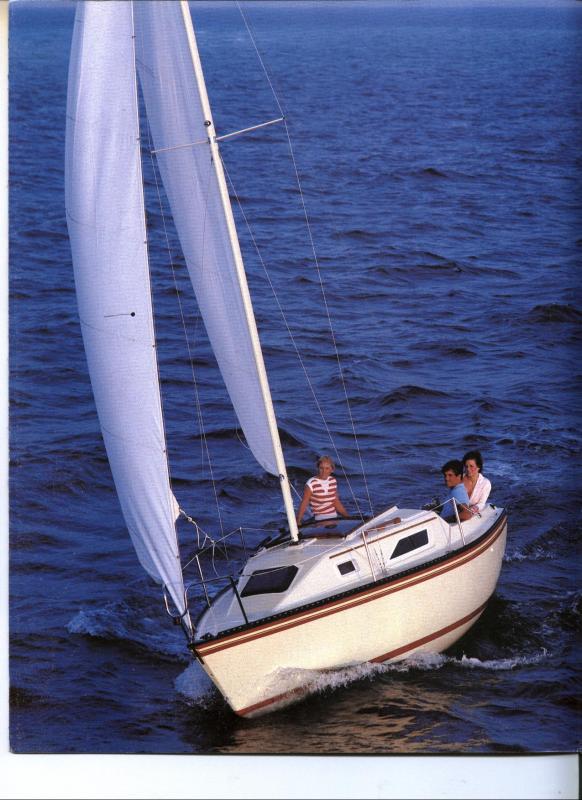

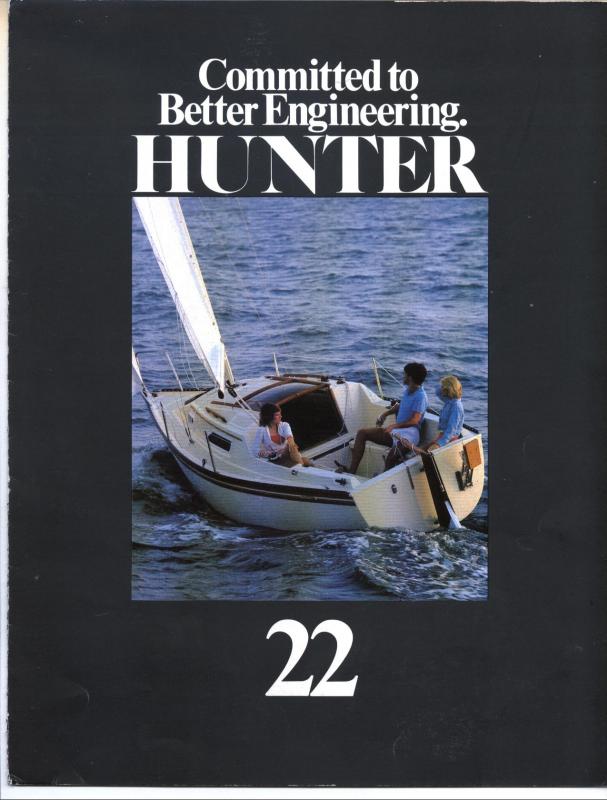

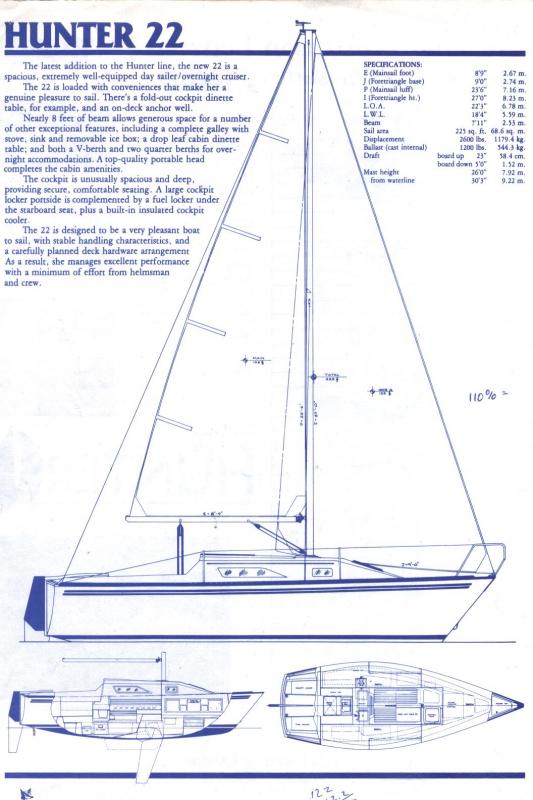

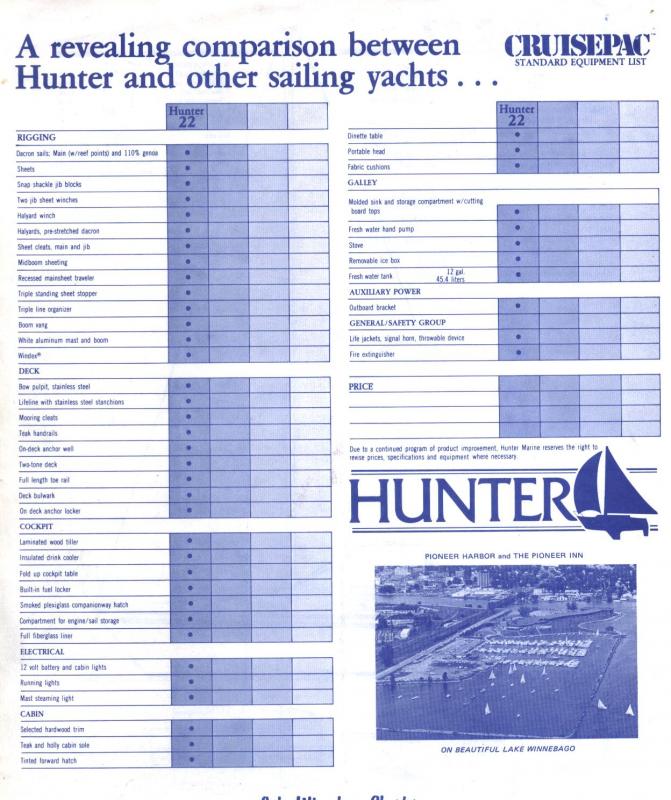

..they are utensil holders. See the attached original sales brochure pages...

Re: the rest...
The swing keel, there is an issue with the pivot bolt! Yes/can be, Ive replaced my SS pivot pin and nylon bushing (and entire swing keel) since start of post salvage work 5 years ago.

The Transom and chain plate, issue with rot? Transom, haven't seen any, and chain plate, yes ... one of my next projects (reseat in butyl rubber vs 3M 5200 and check for other topside leaks as possible source(s) of leakage)

Is there foam under the front v-berth and in the back somewhere to check?
Yes under / around v-berth (can't get to it), and right behind the 40 gal PW tank...you CAN put eyes on this one ... take a dive into the stbd quarterberth for a peek to centerline fwd of the aft bilge fiberglass bulkhead.

For some other info on the swing keel or rudder for the H22, see:

Need Rudder and swing keel dimensions(
1 2 3 ... Last Page)


Charlie


Attachments

SeaTR

SeaTR

.
Jan 24, 2009
408
Hunter 22 Groton
Re: 1983 Hunter Check list > generational issues-what to che

P.S. You sail "Lake Oshkosh", Wisconsin ? ?

SeaTR

SeaTR

.
Jan 24, 2009
408
Hunter 22 Groton
Re: 1983 Hunter Check list > generational issues-what to che

...one more thing, my 81 Hunter 22 is a salvage boat ... my check lists have been going on and on for a number of years now. They included the "to trailer" list, the "to sail" list, the "to sail overnight" list, and the "Block Island" list. And don't forget about the oh so important "Improvements" list.

And I've been working on them with time and money, as available. Most of my sailing on this boat has be single-handed in Long Island Sound for the past 4 years.
